Rice Lake Roughdeck BDP Barrel Scale

Rice Lake Roughdeck BDP Barrel Scale

Easily accommodate a range of applications with the versatile RoughDeck BDP. Available in both stainless and mild construction, the low-profile design allows ramps to sit flush with the ground for smooth loading of barrels and drums. Siderails also allow the BDP to weigh pallets or other large items

RFQ

Call: (919) 776-7737

Share on Facebook

When flexibility is required for weighing large items such as barrels and drum pallets, the Rice Lake RoughDeck® BDP’s low profile design and optional hinged access ramps enable effortless loading and unloading. Live side rails permit items exceeding the standard scale dimensions to be weighed accurately where they sit on the scale. Design feature options include treaded mild steel or smooth stainless steel top plates, and environmentally sealed or welded-seal load cells catering to a vast range of application conditions.

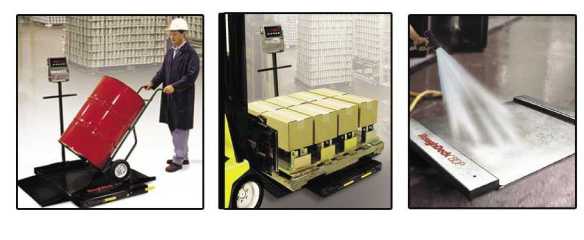

With ramps that sit flush with ground, the RoughDeck BDP accommodates barrels, drums, and pallets. Indicator stand can be attached to a portability frame so vibration does not interfere with zeroing. Portability frame and caster engaging mechanism are below scale's live rails, for unconfined weighing of large items. Load cells and cables are recessed into structural steel channels and fully enclosed junction box is accessible from top.

Choose from a mild steel model with a diamond treadplate deck for industrial applications or a 304 stainless steel model with a smooth deck for hostile environments. The stainless steel model has optional welded-seal stainless steel load cells for corrosive or washdown applications. A variety of digital weight indicators are available for vivid weight display.





ROUGHDECK BDP BARREL SCALE STANDARD FEATURES

• Live siderails
• Top access foot adjustment holes (holes are 1/2-13 threaded for lifting scale)
• Four adjustable stainless steel SUREFOOT™ support feet
• 30 in x 31 in or 36 in x 37 in weighing surface (not including side rails)
• TuffSeal® JB4SS stainless steel, NEMA 4x junction box with signal trim card
• Three-year limited warranty

Mild Steel Models
• Treaded top plate
• Alloy steel load cells (RL35023)

Stainless Steel Models
• Smooth top plate
• Stainless steel or stainless steel with welded-seal (IP67) load cells



Rice Lake Roughdeck BDP Barrel Weigh Scale
Rice Lake Roughdeck BDP Barrel Scale (pdf file)
Rice Lake BDP Portability Kit Scale (pdf file)

Rice Lake Roughdeck BDP Barrel Weigh Scale available in mild steel or stainless steel









ROUGHDECK BDP SCALE
NTEP CERTIFIED PLATFORM

PART # ........SIZE (W x L) ................CAPACITY....... Est. SHIP WT
Mild Steel
77962 ......... 30" x 31"...................1000 lb (500 kg)............... 205 lb
77963 ......... 30" x 31"...................2500 lb (1250 kg)............. 205 lb
77964 ......... 36" x 37"...................1000 lb (500 kg)............... 265 lb
77965 ......... 36" x 37"...................2500 lb (1250 kg)............. 265 lb
Stainless Steel
77967 ......... 30" x 31"...................1000 lb (500 kg)............... 205 lb
77968 ......... 30" x 31"...................2500 lb (1250 kg)............. 205 lb
77969 ......... 36" x 37"...................1000 lb (500 kg)............... 265 lb
77970 ......... 36" x 37"...................2500 lb (1250 kg)............. 265 lb
Stainless Steel with Stainless Steel Welded-seal (IP67) Load Cells
77971 ......... 30" x 31"...................1000 lb (500 kg)............... 205 lb
77972 ......... 30" x 31"...................2500 lb (1250 kg)............. 205 lb
77973 ......... 36" x 37"...................1000 lb (500 kg)............... 265 lb
77974 ......... 36" x 37"...................2500 lb (1250 kg)............. 265 lb



Options

Access Ramps
Mild Steel
78011 30 in x 12 in (sold individually)
78012 36 in x 12 in (sold individually)

Stainless Steel
78013 30 in x 12 in (sold individually)
78014 36 in x 12 in (sold individually)



Floor Anchor Plates (for use w/ static scale w/o ramps)
18778 SS
18777 MS

Floor Stand for Indicator (for use w/ static scale)
28740 SS
19352 MS

Deck Finishes
Consult  SS Diamond Treadplate safety deck option



BDP with portability kit

ROUGHDECK BDP PORTABILITY KITS
Take the stationary RoughDeck® BDP where you need it with the optional Portability Kit. Perfect for material handling fieldwork applications, the compact, low profile frame showcases a lifting mechanism which, when engaged, allows the operator to move the scale in any direction. The frame also includes brackets for mounting optional access ramps providing maneuverable approaches for any material. Four NSF approved caster-designed wheels enable the operator to move the scale easily and effortlessly. Use the indicator stand with Rice Lake’s IQ Plus® 390-DC indicator and you have a visible weighing system at your command, anywhere you can take it.

Kits include: • Frame • Two swivel and two fixed zinc plated steel NSF approved wheels (75 lb max. load capacity)• Indicator stand (suitable for certain RLWS indicators)



PART # .............. DESCRIPTION ........................................SHIP WT

Mild Steel

78021 ....For use with 30" x 31" scale ......................................90 lb

78022 ....For use with 36" x 37" scale ....................................100 lb

Stainless Steel

78023 ....For use with 30" x 31" scale ......................................90 lb

78024 ....For use with 36" x 37" scale ....................................100 lb







OPTIONAL HINGED ACCESS RAMPS (for use with portability kit)

PART # .................... SIZE (W x L) ...................................SHIP WT

Mild Steel

78015 ....29.25" x 12" (sold individually) ...................................25 lb

78016 ....35.25" x 12" (sold individually) ...................................30 lb

Stainless Steel

78017 ....29.25" x 12" (sold individually) ...................................25 lb

78018 ....35.25" x 12" (sold individually) ...................................30 lb
