Avery Weigh-Tronix ZM303 Digital Weight Indicator

Avery Weigh-Tronix ZM303 Digital Weight Indicator

Avery Weigh-Tronix ZM303 is a high performance indicator suitable for industrial applications. Includes a full numeric keypad, offers multi-connectivity, with Ethernet, RS232 and a USB Host port as standard and Analog output, USB device, Current Loop, RS485/RS422 and Wireless options available.

RFQ

Call: (919) 776-7737

Share on Facebook

Avery Weigh-Tronix ZM303 is a high performance indicator suitable for industrial applications. This multi-function indicator includes a full numeric keypad, offers multi-connectivity, with Ethernet, RS232 and a USB Host port as standard and Analog output, USB device, Current Loop, RS485/RS422 and Wireless options available.

Numeric keypad with assignable function keys for more complex processes
The numeric keypad allows ZM303 users to store multiple Tares and numeric IDs in the internal memory for easy retrieval. Keys for counting, checkweighing and process control operations are also standard.

Hi-vis display to improve productivity
The ZM303 indicator is available with two highly visible display options. The high contrast, nine segment IBN display technology provides excellent color contrast and enhanced viewing angles. The TN LCD display technology features dark digits against a lighter background and a green backlight that is easy on the eye.

Adaptable for a variety of industrial environments -- The ZM303 is available in:

Protective aluminum enclosure for office environments
A robust IP69K certified stainless steel enclosure for harsh indoor or outdoor use
or a stainless steel panel mount design for control room applications

Connectivity, Durability and Versatility
Available in eight different variants, these high-performance, multi-function indicators will analyze, store, display and transmit data, providing you with greater visibility of weighing performance.
Highly adaptable and available with a choice of display technologies and enclosures to suit a variety of applications, the Avery Weigh Tronix ZM301 and ZM303 offer multi-connectivity, ensuring compatibility and communication between old and new peripheral technologies.

ZM303
The ZM303 features a numeric keyboard, as well as clearly-displayed buttons for common weighing requirements, such as counting, check-weighing and process control, allowing users to quickly switch between applications. Both aluminum and IP69K stainless steel enclosures are available with IBN and TN display technology, making them suitable for a range of indoor or outdoor applications.

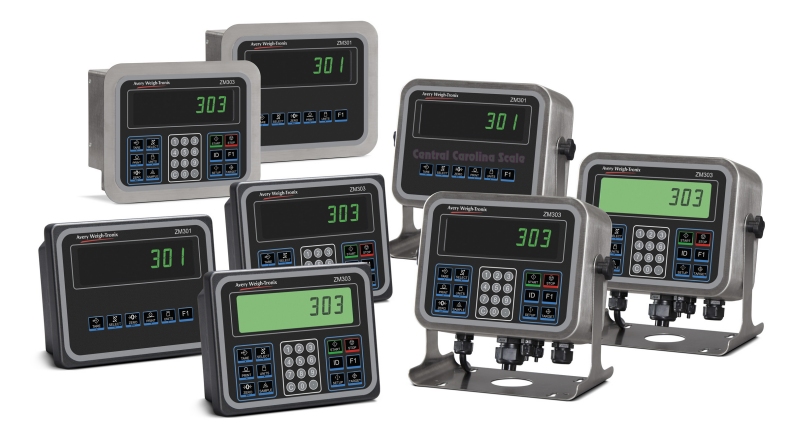

ZM301 and ZM303 digital weight indicator family from Weigh-Tronix



ALUMINUM ENCLOSURE (A stainless steel swivel bracket/stand is not included, see options)
AWT05-505806 IBN display, 7 digits (ZM301)
AWT05-505802 IBN display, 7 digits (ZM303)
AWT05-505803 TN display, 7 digits (ZM303)

STAINLESS STEEL ENCLOSURE IP69K
AWT05-505800 IBN display, 7 digits (ZM301)
AWT05-505796 IBN display, 7 digits (ZM303)
AWT05-505797 TN display, 7 digits (ZM303)

PANEL MOUNT
AWT05-505809 IBN display, 7 digits (ZM301)
AWT05-505808 IBN display, 7 digits (ZM303)

easy to understand summary



OPTIONS

AWT05-505632 Analog output module
AWT05-505634 Current Loop/RS485/RS422 module
AWT05-505633 USB device module
AWT05-505849 Wireless communication (802.11 b/g) module
AWT05-505852 External battery pack (D cells not included)
AWT05-505850 USB watertight gland for stainless steel models
AWT05-505851 Ethernet watertight gland for stainless steel models
AWT05-505844 VAC In-line power module US power plug
AWT25-501235 DC Voltage input cable 9'
AWT05-505894 Stand kit for aluminum enclosure
AWT25-501066 Power cord style - IP69K, UK power plug with gland
AWT25-501218 Power cord style - IP69K, Chile and Italy power plug with gland
AWT25-501217 Power cord style - IP69K, Australia, New Zealand, China power plug with gland
AWT05-505845 Power cord style - In-Line, UK power plug
AWT05-505846 Power cord style - In-Line, Chile and Italy power plug
AWT05-505847 Power cord style - In-Line, Australia, New Zealand, China power plug
AWT05-506036 Kit, ZM-OPTO Board Only
AWT05-506034 Enclosure Assy, ZM-OPTO (Stainless Steel)
AWT05-506033 Enclosure Assy, ZM-OPTO (Painted Carbon Steel)
AWT05-506042 Ztools PC utility program
