Brecknell DCSB Floor Scale System

Brecknell DCSB Floor Scale System

Brecknell DCSB system includes an IP65 rated mild steel general purpose weighing platform with alloy tool steel potted load cells. Factory calibrated with SBI-521 LED indicator or SBI-240 indicator and interface cable. Choices of sizes and capacities. NTEP legal for trade.

RFQ

Call: (919) 776-7737

Share on Facebook

The Salter Brecknell DCSB heavy duty floor scale ships from Fairmont, Minnesota and uses four alloy tool steel potted load cells, ABS Junction Box with summing board, powder coat paint and is NTEP approved legal for trade at 5,000 divisions. The system comes complete factory calibrated with a SBI-521 indicator or SBI-240 Indicator for a complete package and is the top of the line when it comes to plug 'n play industrial floor scales for sale.

At one time this deck was made in America but it has since been imported and is manufactured to Brecknell specifications in China. This is a great floor scale for warehouses since it is rugged and reliable. As for shipping, in most cases we ship these Salter Brecknell floor scales direct from Brecknell in Fairmont, MN.

The Pegasus Floor Scale from Salter features heavy duty gray paint finish. Premium shear beam load cells & (4) adjustable leveling feet. 100% end loading capable of handling off-center loads or tanks. Heavy duty construction and low profile designed for portable or permanent applications. Wide range of capacities, platform sizes, and accessories such as ramps, indicator floor stands, and anchor plates. This legal for trade scale is suitable for Commercial Applications (subject to local Weights & Measures regulations)



SBI-521 Digital Indicator
The Brecknell SBI-521 digital indicator is housed in a heavy duty stainless steel enclosure rated at IP65 and may be used in a wide variety of applications including bench, floor scale and check weighing.



SBI-240 Digital Indicator
The legal-for-trade SBI 240 Indicator is a very low cost, simple to operate weight indicator designed for use in a wide range of applications (weighing, counting, check weighing, percentage weighing, accumulation). This compact indicator is housed in a robust die cast aluminum housing and is supplied complete with a mounting bracket, that is ideal for wall or bench mounting.

The SBI 240 Indicator can easily be connected to any bench or floor scale with a maximum of up to four 350 ohm load cells.  The easy-to-read 6½ digits 1" / 25 mm high, seven segment LCD with white backlight ensures accurate readings. AC or battery powered indicator with up to 50 hours of battery life. Ideal for areas where continuous power may be hard to find.





Factory Calibrated - Indicator and floor scale calibrated at the factory prior to shipment.
Easy Installation - Units can be placed into service with little or no on-site installation required.
Capacity & Size - Match a capacity and size with with any of the combinations below.



Fairmont MN
HEAVY DUTY SALTER FLOOR SCALES
ship from the Avery Weigh-Tronix Scale Factory in Fairmont Minnesota.





High Quality Salter Floor Scale Cheap Import Floor Scale
SALTER DCSB SCALES

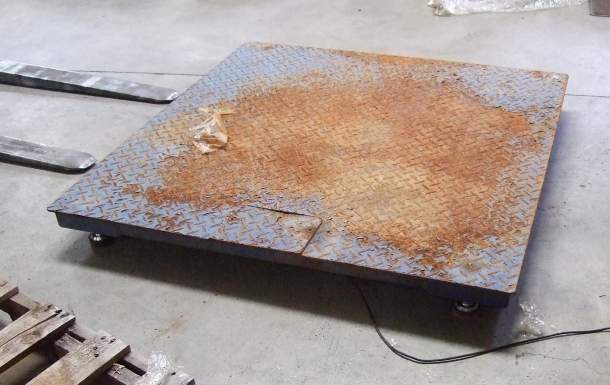

"Lesser" 4x4 Scales you may have seen
blue circle with white check mark icon
NTEP Approved Legal for Trade
large blue x icon
Some NTEP, quite a few NON NTEP
blue circle with white check mark icon
Actual 4'x4' (48x48) Platform Size
large blue x icon
Close but not exactly... (44x44) or (47x47)
blue circle with white check mark icon
3 Year Warranty backed by Avery Weigh-Tronix of Fairmont, MN U.S.A. on the DCSB. (Indicators are usually 1 year)
large blue x icon
1, 2, 3, 30 yr etc... but who supports the warranty, the mfg in China?
blue circle with white check mark icon
Name Brand Premium Load Cells
large blue x icon
In many cases, "No Name" Load Cells
blue circle with white check mark icon
Manual you can read (in English!)
large blue x icon
A manual? Better enroll in Chinese class at local college
blue circle with white check mark icon
Deck built to AWTX standards.
large blue x icon
Deck built somewhere overseas in a factory. No two decks exactly the same.
blue circle with white check mark icon
Dealer network throughout U.S.
large blue x icon
A few folks importing these.
blue circle with white check mark icon
Parts usually available same day from U.S. factory
large blue x icon
In some cases, parts have to be shipped from overseas.
blue circle with white check mark icon
Ships factory calibrated from Avery Weigh-Tronix U.S.A. factory in MN
large blue x icon
Ships from? Did anyone check it?





sbi-521 weight indicator

Brecknell DCSB NTEP Floor Scale System with SBI-521 LED Indicator
Model
Part No
Capacity
Dimensions
Ship Wt
DCSB3636-02
816965005345
2000 x 0.5 lbs
3' x 3'
175 lb
DCSB4848-05
816965005352
5000 x 1 lb
4' x 4'
270 lb
DCSB6060-05
816965005369
5000 x 1 lb
5' x 5'
455 lb
DCSB4848-10
816965005376
10,000 x 2 lb
4' x 4'
270 lb
DCSB6060-10
816965005383
10,000 x 2 lb
5' x 5'
460 lb





brecknell dcsb floor scale with sbi-240 weight display

Also Available with the SBI-240 weight indicator:brecknell sbi-240 weight indicator

810036380041  DCSB floor scale + SBI-240 Indicator  2500lb x 0.5lb   (36" x 36")

810036380058  DCSB floor scale + SBI240 Indicator  5000 lb x 1 lb     (48" x 48")

810036380072  DCSB floor scale + SBI240 Indicator  5000 lb x 1 lb     (59" x 59")

810036380065  DCSB floor scale + SBI240 Indicator  10,000 lb x 2 lb   (48" x 48")

810036380089  DCSB floor scale + SBI240 Indicator  10,000 lb x 2 lb   ( 59" x 59")

















Old Part Numbers (with 200E) For Reference only
DCSB3636-02
56973-0021
2000 x 0.5 lbs
3' x 3'
DCSB4848-05
56977-0027
5000 x 1 lb
4' x 4'
DCSB6060-05
56978-0026
5000 x 1 lb
5' x 5'
DCSB4848-10
56977-0217
10,000 x 2 lb
4' x 4'
DCSB6060-10
56978-0216
10,000 x 2 lb
5' x 5'
