Load Cell Cable Rodent Protection EL147RP

Load Cell Cable Rodent Protection EL147RP

EL147RP 6-Wire Load Cell Cable 20 Gauge Wire. Designed to be used in hostile environments. Includes Tinned Copper overbraid which provides excellent protection from rodents and abrasion. Jacket coating enhanced with a chemical coating “NAW” that is distasteful to rodents.

RFQ

Call: (919) 776-7737

Share on Facebook

When nature’s most damaging creatures are difficult to avoid, consider the extra protection of Rice Lake’s EL147RP Plus Rodent Protection Cable. EL147RP Plus is enhanced with our offensively flavored “NAW” chemical coating that leaves a bad taste in the mouths of hungry critters. Its tinned copper overbraid provides additional rodent and abrasion resistance. For heavy radio and frequency use areas, EL147RP Plus also delivers superior EMI/RFI interference protection.

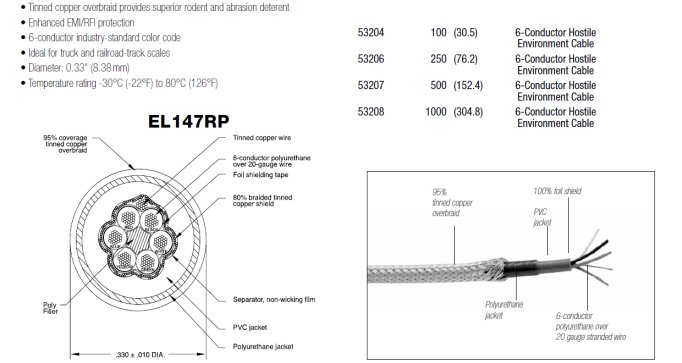

Standard Features
• Tinned copper overbraid provides superior rodent and abrasion deterrent
• Enhanced EMI/RFI protection
• 6-conductor industry-standard color code
• Ideal for truck and railroad track scales
• Diameter: 0.33" (8.38 mm)
• Temperature rating -30°C to 80°C (-22°F to 176°F)

rl147rp scale load cell cable





ITEM # .... DESCRIPTION
31475       Cable, Load Cell EL147RP Plus 6 Conductor Tinned Copper Overbraid per foot
131964     Cable, Load Cell EL147RP Plus 6 Conductor Tinned Copper Overbraid 100ft
131965     Cable, Load Cell EL147RP Plus 6 Conductor Tinned Copper Overbraid 250ft
131966     Cable, Load Cell EL147RP Plus 6 Conductor Tinned Copper Overbraid 500ft
131967     Cable, Load Cell EL147RP Plus 6 Conductor Tinned Copper Overbraid 1000ft



















Old P/N for reference
53204 ............. 100 ft (30.5 m) Hostile Environment Cable ....................
53206 ............. 250 ft (76.2 m) Hostile Environment Cable ...................
53207 ............. 500 ft (152.4 m) Hostile Environment Cable ...............
53208 ............. 1,000 ft (304.8 m) Hostile Environment Cable ...........
