Like many business decisions, the decision to purchase a vehicle scale must take into consideration a number of factors. Most businesses find the purchase of a vehicle scale to be a significant investment and one that requires substantial research to ensure the scale purchased will provide a satisfactory return on their investment. This guide is provided with the hope that it will prove useful in avoiding the pitfalls common to a project of this type. Key facts for truck scale buyers

Regulations For Scale Use

In your selection and purchase of a vehicle scale, you will find that they fall under a variety of regulations including state and local regulations as well as federal. You must be cognizant of these regulations and take them into consideration when determining the total cost of the scale. Local regulations may include construction permits, zoning, setbacks, and others. Some cities and counties have their own legal metrology laws regulating the use of scales used in trade.

Almost every state has a department of weights and measures that oversees the use of scales, including vehicle scales, used in commerce while several agencies of the federal government have their own set of rules for regulating the use of vehicle scales in special applications. While your local scale service company should be familiar with these regulations, it is a good idea for you to become familiar with them as well simply to provide you with the assurance that you will not be faced with an unpleasant surprise at some future date after your scale is installed.

A good place to start is with a call to your local weights and measures office. If you are unable to find a local telephone number for a local department of weights and measures, you should check with listings in your capital city. Another source of information is the Internet where most state departments of weights and measures maintain a Web site. A listing of state weights and measures departments can be found on the National Conference on Weights and Measures’ Web site at www.ncwm.net. State weights and measures personnel will be happy to provide you with any requirements that are unique to your state. For example, some states have different requirements for the length, width, and slope of approaches to a scale while others may also have requirements concerning the minimum clearance beneath the scale structure.

Most states will also tell you that the scale must have a NTEP Certificate of Conformance in order to be used in commerce. The next step is to call your city’s building code office to learn what requirements they have. Often, a building permit will be required for construction of the concrete foundation and approaches and for the wiring needed to power the scale. You may find that these services must be performed by contractors licensed by the city.



Type of Truck Scale

Vehicle scales are available two basic types with variations on each type. Vehicle scales can be installed over a pit (similar to the basement of a house) or they can be installed above grade on a concrete slab.

Pit type scales are often found in colder climates and offer several advantages. Although generally more expensive than a similar model installed above grade, a pit type scale provides easy access to the components beneath the scale and does not require ramps for the truck to pull onto the platform. Approaches to a pit type scale are much easier since the weighing platform is flush with the surface of the ground.

On the other hand, a pit type scale normally requires some means of dealing with the accumulation of water within the pit whether it be a gravity drain or sump pump and are significantly more expensive to construct requiring excavation, forming, and pouring of pit walls and floor. One other thing to consider is that with a pit type scale, the truck cannot fall off the scale should the driver cut his wheels too sharp.

There are also portable truck scales which can be installed at a location for a certain amount of time and then moved to another location. There are also various types of load cells inside truck scales.  There are hydraulic versions.  There are standard analog load cells.  There are digital load cell versions.  We even have weigh in motion truck scales available where the truck can drive over the scale and never come to a complete stop.



Analog vs Digital Scales

Analog and digital signals are types of signals that both carry information from the weighing scale to the display where you’ll view the weight reading. Analog signals have been around forever and are mostly used in communication systems, think AM and FM radio. Digital signals represent more sophisticated data that is processed faster and is less likely to be disrupted. You can think of it kind of like Wi-Fi connectivity compared to your old rabbit ear antenna TV.

An analog load cell measures the amount of resistance of compression caused by weight being applied to the strain gauge and converts it to an analog signal, or voltage. Each load cell is connected to a junction box that sums each load cell’s voltage and transmits the sum to the scale indicator. The indicator then converts the sum to a digital signal and displays the weight.

While a digital load cell technically starts as an analog signal, this signal never leaves the load cell as an analog signal. The conversion to digital happens directly on the main board of the digital load cell and thus the transmitted is of higher quality and stays that way. There is no conversion needed later on and sometimes a junction box can be avoided.

When are Digital Scales a Better Choice?

Because the digital signal is of higher quality, troubleshooting the digital load cell, and consequently any scale issues, is much easier. The days of a technician measuring the voltage at each load cell or junction box are a thing of the past with a digital load cell.

Digital load cells are better against lightning. If you put a large slab of steel in the middle of a field, it’s going to act as a lightning rod of sorts. The last thing you want is a large bill every time a thunderstorm comes through and lightning wipes out your components or power supply. Because of the higher quality digital signal, this technology has proven to be resistant to any lightning or surge events, provided the scale is properly grounded.

When are Analog Scales a Better Choice?

If minimizing your up-front cost is a key factor in your truck scale purchase, you will likely be able to save a little money up front by purchasing an analog truck scale. If you would rather keep your existing weight scale indicator because it has a computer program or custom ticket associated with it, then an analog truck scale might also be for you. And, some scale service companies are not well versed in servicing digital truck scales. It’s best to ask your service company if they are comfortable servicing a digital truck scale before purchasing one. If they aren’t, it might be best to stick with an analog system.

Truck Scale Repair & Maintenance

No matter what type of truck scale you choose to purchase, you need to commit to a regular maintenance plan to get the most life and accuracy out of your vehicle scale. As you can see from the graphic below, small errors can lead to a lot of loss if your scales are not checked and calibrated on a regular basis.



truck scale errors can lead to lost profits for owners

Truck Scale Platform Sizes Available

Platform size is an important consideration because, once purchased, it is almost impossible to change the size of the platform. You must identify not only the vehicles you currently use that will be weighed but also those you may use in the future. Since a typical vehicle scale will have a life of ten years or significantly more, consideration should be given to what vehicles you will be weighing five, or seven, or ten years from now. Vehicle scales typically come in widths of 10, 11, 12, and 14 feet or even wider. Lengths range from 20 feet or so to over 200 feet.

Of course, as the size increases, so does the cost so it is best to select the smallest size that will accommodate the vehicles you currently weigh yet is large enough to allow you to weigh those larger vehicles that may be in your future. A typical size might be 11 feet wide x 70 feet long but your application may require a longer and / or wider platform.

When choosing a platform size, you also need to keep in mind the area in which the scale will be located. Most states require a straight and level approach to the scale on both ends. Normally the length of this approach is 10 feet but it could be more. Add to this the room necessary for the truck to maneuver onto the scale and you could find that 70 foot long scale requiring over 150 feet of real estate.



Weighing Capacity

Unfortunately, there has been much confusion when it comes to describing the weighing capacity of a vehicle scale. Actually, when you start to examine competitive models of vehicle scales you’ll find that there are two basic capacity figures, the CLC or concentrated load capacity and the nominal capacity. There may even be other names for capacity used by some manufacturers like section capacity or maximum capacity or so on. Keep in mind that there are only two capacity ratings recognized by the National Conference on Weights and Measures and those are the concentrated load capacity or CLC and the nominal capacity.

CLC (Concentrated Load Capacity) The scale’s ability to weigh a load concentrated in a relatively small area on the scale platform.

Nominal Capacity The total load that can be weighed on the scale when uniformly distributed over the scale platform.

Now that you know the definition for the two types of capacity rating, how much capacity do you need? That is a question that typically is a hot topic among scale manufacturers and there is no simple answer. Begin by taking a look at the trucks that are going to be weighed on the scale. Are they trucks that are going to be weighed within the legal highway load limits (34,000 pounds for tandem axles and 24,000 pounds for a single axle)? If so, you may find that you do not require a larger CLC.

On the other hand, will the scale be used to weigh highly concentrated loads common to mining trucks and some dump trucks? If so, a higher CLC rating may be required for your application. Most vehicle scales have capacities ranging from 120,000 pounds to 200,000 pounds. The 200,000 pound level is the maximum nominal capacity for a vehicle scale when using 20 pound divisions because NIST Handbook 44 limits a vehicle scale to a maximum of 10,000 divisions. It is possible to achieve a nominal capacity greater than 200,000 pounds by either using a scale with a 50 pound division or a dual-ranging scale where weights are displayed in increments of 20 pounds up to say 100,000 pounds then in 50 pound increments up to the scale capacity. Generally speaking, however, the 200,000 pound value is more than sufficient for the vast majority of vehicle scale applications.

truck scale with concrete platform

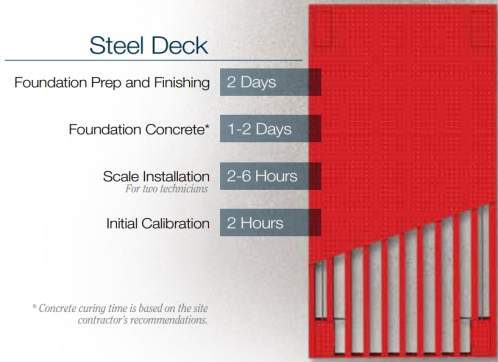

truck scale with steel deck platform

Weighbridge Construction

Normally, vehicle scales are available with one of two platform materials; steel or concrete. As with most things, each has its advantages and disadvantages. Although the total cost of a scale with a steel platform is less than one with a concrete platform of the same size, the steel can be slippery when wet and is subject to corrosion.

The concrete platform is more expensive and requires finishing labor and curing time, but is not subject to corrosion. Concrete can, however, deteriorate with age and weather. Generally speaking, a concrete deck is a better choice for high traffic applications. Another consideration is that a weighbridge with a concrete deck is much more difficult to move at a later date than a weighbridge of similar size with a steel platform.

Truck Scale Technology

At this time, most truck scales are equipped with either hydraulic load cells, digital load cells, or analog load cells.  There are also a few retro kits available which allow you to experience the benefits of a digital truck scale while still using analog load cells.

Learn more by reading our Truck Scale Buyers Guide (pdf file)
