Avery Weigh-Tronix ZM510 Digital Weight Indicator

Avery Weigh-Tronix ZM510 Digital Weight Indicator

The Avery Weigh-Tronix ZM510 has been designed with complete user personalization in mind. Weighing operations can be programmed into the ZM510’s five soft keys, allowing users to carry out a multitude of weighing operations, instantly. The ZM510 is equally compatible with a wide range of other weighing platforms, including bench and floor scales and scales for batching, counting and checkweighing.

RFQ

Call: (919) 776-7737

Share on Facebook

Programmable and highly connective, the Avery Weigh-Tronix ZM510 displays, analyzes, stores and transmits data across devices, offering an end-to-end, personalized weighing solution.

Constructed for use in the office, dusty, wet or high pressure, heavy washdown and outdoor environments, the ZM510 is IP69K certified and enclosed in 304 brushed stainless steel. Designed for long service in extreme conditions, including corrosive environments and frequent, heavy washdown, the ZM510 adapts to desk, wall or column mount applications.

With metal domed tactile keys and audio contact confirmation, the ZM510’s large QWERTY keypad makes it flexible for use across all applications. Five programmable keys allow for specific weighing tasks to be assigned to the indicator, allowing weighing operations to be carried out quickly and effectively. The ZM510 can also be connected to a USB keyboard.

Unparalleled personalization
The ZM510 has been designed with complete user personalization in mind. Weighing operations can be programmed into the ZM510’s five soft keys, allowing users to carry out a multitude of weighing operations, instantly.

The ZM510, available from Central Carolina Scale, is equally compatible with a wide range of other weighing platforms, including truck, bench and floor scales and scales for batching, counting and checkweighing.

Enclosures
Constructed for use in the office, dusty, wet or high pressure, heavy washdown and outdoor environments, the ZM510 is IP69K certified and enclosed in 304 brushed stainless steel. Designed for long service in extreme conditions, including corrosive environments and frequent, heavy washdown, the ZM510 adapts to desk, wall or column mount applications.

Keypads
With metal domed tactile keys and audio contact confirmation, the ZM510’s large QWERTY keypad makes it flexible for use across all applications.

Five programmable keys allow for specific weighing tasks to be assigned to the indicator, allowing weighing operations to be carried out quickly and effectively. The ZM510 can also be connected to a USB keyboard.

Dot-matrix graphical display
High contrast, improved Super Twisted Nematic graphic display gives the ZM510 excellent visibility and color contrast.

With its wide viewing angles, the ultra-bright green and black dot graphic display is easily visible in extreme working conditions and can be reversed for optimum viewing in light or dark working environments.

Connectivity
The ZM510 offers a new level of multiconnectivity, ensuring compatibility and communication between old and new peripheral technologies.

An Ethernet port can be configured to support ten independent devices, supporting DHCP client/server and Ethernet sockets in addition to all serial protocols.

Also included as standard are three RS232 serial interface ports for data transfer to older equipment and connection to the Avery Weigh-Tronix BSQ digital bench base. Two USB host ports facilitate communication with printers or keyboards and data transfer via a USB storage device.

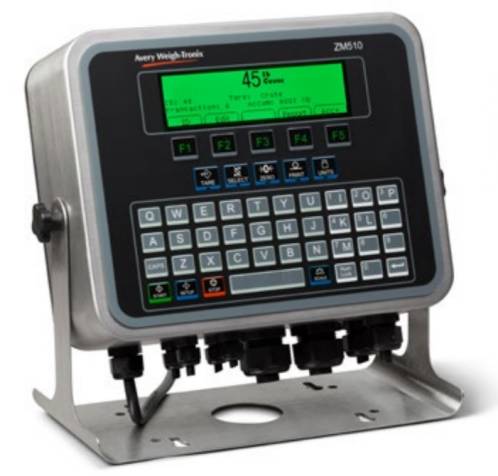

 weigh-tronix zm510 scale controller

Avery Weigh-Tronix ZM510 Digital Weight Indicator
Legal for trade CC14-039 Class III/IIIL 10,000 Divisions, AM-5955C


PART NUMBER .... DESCRIPTION
AWT05-508005      Dot matrix display, stainless steel enclosure, US plug
AWT05-508282      Dot matrix display, stainless steel panel mount enclosure



Options
AWT05-505632  Analog output kit
AWT05-505634  Current Loop/RS485/RS422 kit
AWT05-505633  USB device kit
AWT05-508060  DeviceNet™ kit
AWT05-508061  Profibus® kit
AWT05-505849  Wireless Ethernet communication (802.11 b/g) kit
AWT05-508062  Analog Scale Input, 5 VDC excitation kit
AWT05-508063  Analog Scale Input, 10 VDC excitation with STVS kit
AWT05-508266  DC Output, 4 relays 3-60VDC at 2A kit
AWT05-508267  DC Input, 4 Inputs 4-30VDC kit
AWT05-508268  AC Output, 4 relays 20-240VAC at 1A kit
AWT05-508269  AC Input, 4 Inputs 120-240VAC kit
AWT05-508265  External I/O interface required for AWT05-508727
AWT05-508727  16 Position I/O board only (requires p/n AWT05-508265)
AWT05-505844  VAC In-line power module US power plug
AWT25-502053  6 in Extension ribbon cable for 16 I/O board
AWT25-502054  18 in Extension ribbon cable for 16 I/O board
AWT25-502055  36 in Extension ribbon cable for 16 I/O board
AWT25-502056  60 in Extension PVC jacketed rolled cable for 16 I/O board
AWT05-505850  USB watertight gland for stainless steel models
AWT05-505851  Ethernet watertight gland for stainless steel models
AWT25-501235  DC Voltage input cable 9'
AWT05-508053  Sever Transient Voltage Suppressor (STVS) extreme lighting protection
AWT05-506036  Kit, ZM-OPTO Board Only
AWT05-506034  Enclosure Assy, ZM-OPTO (Stainless Steel)
AWT05-506033  Enclosure Assy, ZM-OPTO (Painted Carbon Steel)
AWT05-508726  SSCU-8 board only
AWT05-508729  SSCU-8 painted carbon NEMA 4 enclosure and board
AWT05-508730  SSCU-8 stainless steel NEMA 4X enclosure and board

Note: SSCU-8 requires the external I/O interface AWT05-508265
Note: on/off switches or lights for above require remote mounting

AWT05-508174  External agency sealing kit IP69K model
AWT05-508170  Panel mount agency external sealing kit



Output Modules (Maximum of 3 output models can be fitted inside the OPTO22 relay box)
AWT25-502031  G4IDC5D 2.5 to 28 DC volt input module
AWT25-502032  G4IDC5B 4 to 16 DC volt input module
AWT25-502033  G4IDC5 10 to 32 AC/DC volt input module
AWT25-502034  G4IDC5G 35 to 60 AC/DC volt input module
AWT25-502035  G4IAC5 90 to 140 AC/DC volt input
AWT25-502036  G4IAC5A 180 to 280 AC/DC volt input module
AWT25-502042  G4ODC5R .5amp, SPST normally open dry contact relay
AWT25-502043  G4ODC5R5 .5amp, SPST normally closed dry contact relay
AWT25-502037  G4ODC5 5 to 60 DC volt output module
AWT25-502038  G4ODC5A 5 to 200 DC volt output module
AWT25-502039  G4OAC5 12 to 140 AC volt output module
AWT25-502040  G4OAC5A 24 to 280 AC volt output module
AWT25-502041  G4OAC5A5 (NC) 24 to 280 AC volt output module

I/O Modules (Maximum of sixteen any combination for AWT05-508727)
AWT25-502045  3-60VDC at 3A output module
AWT25-502047  12-140 VAC at 3A output module
AWT25-502048  24-280 VAC at 3A output module
AWT25-502049  3.3-32 VDC input module
AWT25-502050  10-60 VAC or VDC input module
AWT25-502051  90-140 VAC or VDC input module
AWT25-502052  180-280 VAC or VDC input module
