B-Tek T104 Scale Display

B-Tek T104 Scale Display

The BTek T104P and T104S indicators are ideal for general weighing, simple parts counting and check weighing using the multi-color Stack light display. They are the perfect option for bench scales and floor scales used in production, packaging, warehousing, inventory and shipping and receiving.

RFQ

Call: (919) 776-7737

B-TEK T104 SCALE CONTROLLER SPECIFICATIONS

• 6-digit, 7-segment LCD Stacklight display with multi-color backlight, 45mm / 1.8 in high digits
• Wear resistant display panel overlay
• 4 Membrane function keys
• Powers up to (6) 350 ohm load cells
• 1:6,000 Class III/IIIL NTEP and Class III/IIIHD Measurement Canada
• Maximum displayed resolution: 30,000 counts
• Internal resolution: 68,500 counts per mV/V per second
• Capacity selections: up to 99,999 g/kg/lb/t
• Weight units: g, kg, lb, oz, lb:oz, metric tonnes
• 5VDC excitation voltage
• 100-240 VAC / 50/60 Hz universal power supply
• Rechargeable lead-acid battery for up to 100 hours continuous use
• RS232 serial data port for printer or PC connection included
• Configuration and print template software
• Easy to use and set up with improved calibration procedure
• Software includes built-in scale diagnostics
• M12 IP68 Load cell connector with field wireable connector or screw terminal wiring



Options
• Additional USB Device Port
• Additional TCP/IP Ethernet Port



Certifications
• NTEP CoC# 22-110
• Canadian approval: AM:6206
• Compliance marks: CSA, CE, WEEE, RoHS
• T104P ABS IP54 / NEMA 3S ingress rating
• T104S 304 stainless steel IP66 / NEMA 4 ingress rating

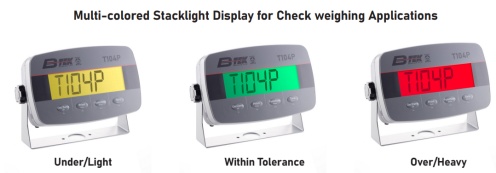

over/under/accept checkweigh scale



ITEM # ....... DESCRIPTION
821-700001    T104P  ABS IP54  6-digit LCD Stacklight display with multi-color backlight

821-800002    T104S  Stainless Steel IP66  6-digit LCD Stacklight display with multi-color backlight







Options

T104 TCP/IP Ethernet Option
Product Code: 821-750020

T104 USB Device Port Option
Product Code: 821-750021

Male Sensorlink Cable - 20 Feet
Product Code: 861-000010

DuraShield Universal Indicator Column - Carbon
Product Code: 100-161138-KIT-1

AquaShield Universal Indicator Column - Stainless
Product Code: 100-161138-KIT
