Intercomp TL8500 Tension Scales

When working around overhead loads or measuring line tension, accuracy and safety cannot be compromised. The TL8500 Series Tension Link scales from Intercomp are the industry standard for controlling and monitoring overhead loads and line tension while helping to maintain a safe work environment. Machined from aerospace-grade aluminum with shock-mounted electronics in a NEMA 4X/IP65 weatherproof enclosure, Intercomp’s Tension Link scales are built to last in capacities ranging from 500lbs (250kgs) to 300 tons.

Standard features include an easy-to-read 1.2” (30mm) LCD Display with backlight and fully integrated wireless communication, while alkaline batteries provide up to 300 hours of power Advanced Solution for Cranes, Riggers, Shipyards, Construction Sites, Surveyors, Inspectors & Utilities. Intercomp’s RFX™ Wireless TL8500™ Tension Link Scales are a cost-effective, yet technologically advanced solution for processing, monitoring and controlling overhead loads and is the industry standard, delivering unsurpassed accuracy from 500 lbs to 300 tons in a lightweight, compact design.

INTERCOMP TL8500 TENSION LINK

The electronics are shock-mounted in a NEMA 4X/IP65 weatherproof enclosure for protection against moisture, dust and rough usage. Weights are easily viewed with a Wireless Handheld Controller, standard with the TL8000™ Tension Link Scales, or on a large, digital LCD readout on the TL8500™. The easy to use membrane switches provide simple, trouble-free operation.

Part Number	Description	Capacity	Ship Weight
150216-RFX	Tension Link Scale	500 x 0.5 lb	5 lb
150217-RFX	Tension Link Scale	1,000 x 1 lb	5 lb
150218-RFX	Tension Link Scale	2,000 x 2 lb	5 lb
150219-RFX	Tension Link Scale	5,000 x 5 lb	5 lb
150220-RFX	Tension Link Scale	10,000 x 10 lb	10lb
150221-RFX	Tension Link Scale	25,000 x 20 lb	10 lb
150222-RFX	Tension Link Scale	50,000 x 50 lb	35 lb
150223-RFX	Tension Link Scale	100,000 x 100 lb	65 lb
150224-RFX	Tension Link Scale	160,000 x 200 lb	65 lb
150225-RFX	Tension Link Scale	220,000 x 200 lb	100 lb
150226-RFX	Tension Link Scale	350,000 x 500 lb	175 lb
150227-RFX	Tension Link Scale	400,000 x 500 lb	250 lb
150228-RFX	Tension Link Scale	500,000 x 500 lb	300 lb
Options (G-2130 Shackles)
150100	Top & Bottom Pair 500-5000 lb
150101	Top & Bottom Pair 10,000 lb
150102	Top & Bottom Pair 25,000 lb
150103	Top & Bottom Pair 50,000 lb
150104	Top & Bottom Pair 100,000 lb
Options (G-2140 Shackles)
150105	Top & Bottom Pair 160,000 lb
150106	Top & Bottom Pair 220,000 lb
150107	Top & Bottom Pair 350,000 lb
150108	Top & Bottom Pair 400,000 lb
150109	Top & Bottom Pair 500,000 lb



INDICATOR OPTION

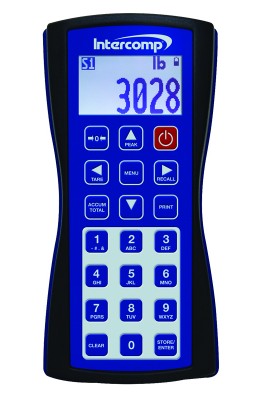

RFX™ Wireless TL™ Handheld Remote Control

Intercomp’s TL-RFX™ Indicator is a wireless remote display for viewing and controlling TL8000™ and TL8500™ Series Tension Link Scales from up to 300’ (90m), line of site. It offers three display modes, depending on your operational requirements and allows simultaneous viewing of data from up to four links, including total weight. The large, 5-digit, 3.3" (84mm) graphic display (measured diagonally) is standard with backlight from improved visibility from most viewing angles. Also features output to RFX™ Enabled
Wireless Printers.

Keys for Power, Zero, Tare, Peak, Accumulate, Menu, Recall & Print
Set & Control up to Two Set Points
Standard Backlight
Optional Wireless Relay Control of Cranes & Other Devices
Operates on Standard AA Alkaline Batteries for up to 40 Hours
