Rice Lake Load Ranger Wheel Pad Scale

Rice Lake Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. With an optional remote indicator and printer, Load Ranger is adaptable for many applications.

RFQ

Call: (919) 776-7737

Share on Facebook

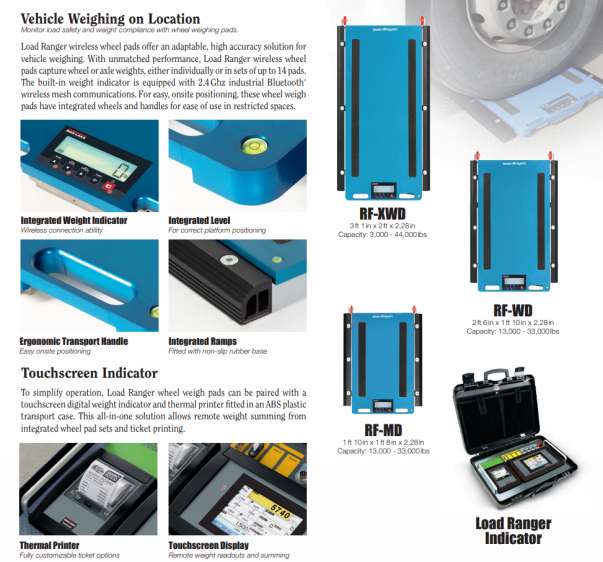

Rice Lake Load Ranger wheel weigh pads are vehicle weighing scales that are ideal for mobile and temporary applications. Load Ranger wireless wheel pads offer an adaptable solution for vehicle weighing. With unmatched accuracy, Load Ranger wireless wheel pads capture wheel or axle weights, either individually or in sets of up to 14 pads. The built-in weight indicator is equipped with industrial Bluetooth® and 2.4 GHz wireless communication.

For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. Load Ranger, which is available from Central Carolina Scale, can be completely wireless with six individual weigh pads with integrated weight displays and an optional remote weight indicator, or systems can include up to 14 weigh pads joined via cable with wireless capability to an optional remote indicator. Load Ranger is adaptable for many applications and provides quick axle and weight readouts.

Remote Touchscreen Indicator and Printer
To simplify operation, Load Ranger wheel weigh pads can be paired with an optional touchscreen digital weight indicator and thermal printer fitted in an ABS plastic transport case. This all-in-one solution allows remote weight summing from integrated wheel pad sets and ticket printing.

Load Ranger Wheel Pad Scale

Up to 6 individual pads (3 sets) per system, completely wireless
14 individual pads (7 sets) per system maximum, joined via cable, wireless communication to indicator
Industrial Bluetooth® radio module for ability to communicate with indicator
Integrated wheels and non-slip rubber under platform
Built-in indicator on each scale with 1 in character display
IP68 rating



Optional remote indicator with integrated printer in carrying case

Backlit graphic display with touchscreen technology
Thermal printer
ABS transport case wheel weighing software
Semi-automatic and preset tare
Print and display list of last 3,500 vehicle



Wheel weighing software
• Multi-scale functioning mode with ability to weigh up to 14 individual pads (seven sets)
• Static axle weighing function, up to two channels
• Calculation of the x and y coordinates of the center of gravity
• Semi-automatic tare
• Preset tare
• Selection of displayed data on the LCD touchscreen
• Completely customizable keyboard
• 15 customizable and printable text IDs
• 1,000 field database
• Programmable printout from keyboard
• Print and display list of last 3,500 vehicle



load ranger wheel weigh pads



Part # ............. Description

182099   Remote indicator with integrated printer in carrying case



Part # ...... Size  ................ Capacity x Graduation

Load Ranger RF-MD
181843   1 ft 10 in x 1 ft 8 in x 2.28 in (564mm x 511mm x 58mm) 3,000 x 1
181844   1 ft 10 in x 1 ft 8 in x 2.28 in (564mm x 511mm x 58mm) 6,500 x 2
181845   1 ft 10 in x 1 ft 8 in x 2.28 in (564mm x 511mm x 58mm) 13,000 x 5
181846   1 ft 10 in x 1 ft 8 in x 2.28 in (564mm x 511mm x 58mm) 22,000 x 10
181847   1 ft 10 in x 1 ft 8 in x 2.28 in (564mm x 511mm x 58mm) 33,000 x 10

Load Ranger RF-WD
181848   2 ft 6 in x 1 ft 10 in x 2.28 in (750mm x 561mm x 58mm) 13,000 x 5
181849   2 ft 6 in x 1 ft 10 in x 2.28 in (750mm x 561mm x 58mm) 22,000 x 10
181850   2 ft 6 in x 1 ft 10 in x 2.28 in (750mm x 561mm x 58mm) 33,000 x 10

Load Ranger RF-XWD
181851   3 ft 1 in x 2 ft x 2.28 in (950mm x 611mm x 59mm) 13,000 x 5
181852   3 ft 1 in x 2 ft x 2.28 in (950mm x 611mm x 59mm) 22,000 x 10
181853   3 ft 1 in x 2 ft x 2.28 in (950mm x 611mm x 59mm) 33,000 x 10
181854   3 ft 1 in x 2 ft x 2.28 in (950mm x 611mm x 59mm) 44,000 x 20





Options/Accessories
181881   Aluminum Ramp for Load Ranger MD Models
181882   Aluminum Ramp for Load Ranger WD Models
181883   Aluminum Ramp for Load Ranger XWD Models
