rinstrum-d841-alpha-numeric-remote-display

Rinstrum D841 Super Bright LED Alpha Numeric Remote Display

Rinstrum D841 is a super bright red LED display that features alpha-numeric characters allowing for improved clarity in messaging. This is ideal for concrete batching plants or custom site management applications where non-weight related messages such as material names need to be displayed.

RFQ

Call: (919) 776-7737

Share on Facebook

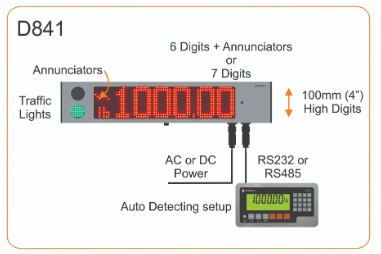

The Rinstrum D841 alpha numeric remote display is a versatile remote display for your scale that can be used for various tasks around the scale area.



Visibility
D841 - >30m (100 feet) at 120 degrees viewing angle



Unit Switching**
D841 allows for kg, lb, t and g units to show on display



Traffic Lights**
The D841 traffic lights (50mm/2 inch round red and green) can be driven from discrete inputs or directly via the communications protocol. The universal inputs will accept clean contact switches or voltages 5-24V to control the traffic lights.



Decimal Point
The decimal point will be displayed between digits as two LEDs in the D841. The decimal point does not affect number of digits displayed.



Scrolling Messaging
The D841 can be fitted with K802 firmware for moving messages to interface with a PC or equivalent device. With a fixed format text string length of up to 150 characters it is ideal for providing instructional messages to truck drivers or equipment operators. (K802 firmware option is factory fit only).



**Where unit switching , traffic lights and annunciators are support in the protocol
