Rice Lake Roughdeck AX-1 Axle Scale

Rice Lake Roughdeck AX-1 Axle Scale

Equipped with a top and bottom steel deck, Rice Lake's AX-1 axle scales ensure durable performance under the toughest condition.

RFQ

Call: (919) 776-7737

Share on Facebook

RoughDeck AX-1 Axle Scale

Scale

  • Sizes: 7.5, 9.5 or 11.5 ft lengths
  • Capacity: 50,000 lb
  • Includes (2) 1-8 NC eye bolts
  • Contains four environmentally sealed, IP67, 20,000 lb single-ended, shear beam load cells
  • Treaded top plate
  • JB4SS TuffSeal® signal trim top access junction box
  • Top access foot adjustment holes
  • Carbon steel captured ball feet
  • 20 ft SURVIVOR® EL147HE cable
  • Non-Legal for Trade

Options:

  • Ramps: 10 x 4 ft, treaded top plate
  • Scale frame

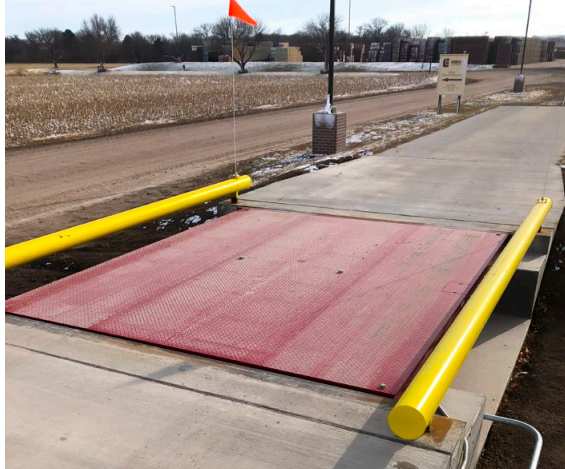

axle scale platform



SCALE ONLY

169650 Scale,Roughdeck AX-1 Axle 115.16in Width X 114in Length X 6in Height Mild Steel 50,000lb
169651 Scale,Roughdeck AX-1 Axle 115.16in Width X 138in Length X 6in Height Mild Steel 50,000lb
169649 Scale,Roughdeck AX-1 Axle 115.16in Width X 90in Length X 6in Height Mild Steel 50,000lb



SCALE BUNDLED WITH SCALE FRAME

169648 Kit, Roughdeck AX-1 10ft Wide x 12ft Long 50,000lb scale with frame
169647 Kit, Roughdeck AX-1 10ft Wide x 10ft Long 50,000lb scale with frame
169645 Kit, Roughdeck AX-1 10ft Wide x 8ft Long 50,000lb scale with frame







Options

Ramp, that attaches to scale
169657 Ramp, Roughdeck AX-1 Axle 10ft Wide x 4ft Approach Stand Alone Mild Steel Painted
169658 Ramp Set, Roughdeck AX-1 10ft Wide x 4ft Approach Stand Alone Mild Steel Painted

Ramp, that attaches to scale frame
169655 Ramp, Roughdeck AX-1 Axle 10ft Wide x 4ft Approach Attaches To Axle Scale Frame Mild Steel Painted
169656 Ramp Set, Roughdeck AX-1 10ft Wide x 4ft Approach Attaches To Axle Scale Frame Mild Steel Painted

Scale Frame Only
169652 Frame ASSY,Roughdeck AX-1 Mild Steel 120in Width x 95in Length x 6.75in Height
169653 Frame ASSY,Roughdeck AX-1 Mild Steel 120in Width x 119in Length x 6.75in Height
169654 Frame ASSY,Roughdeck AX-1 Mild Steel 120in Width x 143in Length x 6.75in Height
