Rice Lake 882IS Intrinsically Safe Digital Weight Indicator

Ideal for Fuel Refineries, Chemical Plants, Distilleries, Textile Manufacturing and more. Rice Lake 882IS utilizes a backlit LCD display to maintain brilliant visibility for user-friendly operation, even in dimly lit areas. Its stainless steel enclosure provides superior protection from the elements. Features: Stainless Steel IP66 Enclosure, cFMus, IECEx and ATEX Approvals, T4 Temperature Rating.

RFQ

Call: (919) 776-7737

Share on Facebook

SAFE, ACCURATE WEIGHT READINGS IN HAZARDOUS LOCATIONS

The intrinsically safe, auto-ranging power supply enables wiring to a single AC conduit line and seal from the safe area. An FM approved, rechargeable battery is also available for isolated power or movable applications. The 882IS utilizes a backlit LCD display to maintain brilliant visibility for user-friendly operation, even in dimly lit areas. Its stainless steel enclosure provides superior protection from the elements. Replacements for popular 320IS and 320IS plus weight indicators.  Click here to view the 882IS Specification Sheet (pdf file)



ENHANCED CONNECTIVITY

Expand flexibility with an optional safe area I/O Module, featuring a serial port, Ethernet TCP/IP and optional analog output or fieldbus cards for communication with printers, computers and other peripherals. A duplex fiber-optic port allows for electrically-isolated communication with the I/O Module. To complete the IS entity approved system, Rice Lake offers FM/ATEX-approved load cells and junction boxes that interface with the 882IS indicator.

CAUTION! The equipment contained within this Explosive Environment section requires greater attention to specification and installation guidelines. Improper specification, installation or service of these products can result in loss of equipment or serious injury

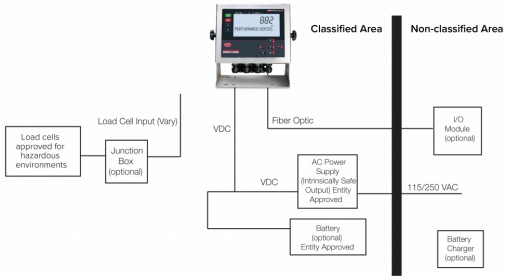

 location-diagram



  • 0.8in, seven-digit, seven-segment LCD display with white LED backlight
  • Stainless steel NEMA IP66 enclosure
  • T4 temperature rating
  • Front panel digital calibration
  • Automatic zero and span temperature compensation
  • Excitation for four 350 ohms or eight 700 ohms load cells
  • Gross/tare/net computation
  • Tilt stand
  • Numeric keypad (882IS Plus only)
  • Duplex fiber optic interface
  • Power ON/OFF; battery save mode
  • I/O module option: one serial port, optional analog outputs, optional fieldbus cards
  • Time & date (requires I/O module)
  • FM Entity Approved for use in hazardous locations per Rice Lake Weighing Systems control drawing file number 180948



rice lake 882is plus intrinsically safe weight indicator with numeric keypad

882IS PLUS (NUMERIC KEYPAD)
PART #   PRODUCT DESCRIPTION

195092   Indicator, 882IS Plus 7.5 VDC SST Enclosure Full Keypad With Standard Tilt Stand

185291   Indicator, 882IS Plus 7.5 VDC SST Enclosure Full Keypad With Battery Pack and Tilt Stand 115-230VAC charger NEMA 5-15(North American plug)

194233   Indicator, 882IS Plus 7.5 VDC SST Enclosure Full Keypad With Battery Pack and Tilt Stand. 115-230VAC CEE 7/7 Continental Europe Charger

194234   Indicator, 882IS Plus 7.5 VDC SST Enclosure Full Keypad With Battery Pack and Tilt Stand. 115-230VAC BS 1363 UK Charger

185293   Indicator, 882IS Plus 7.5 VDC SST Encl. 21 Keypad w/AC Power Supply w/10ft(3m) PS Cable 115-230VAC

194236   Indicator, 882IS Plus 7.5 VDC SST Enclosure Full Keypad With A/C Power Supply. 115-230VAC with metric thread adapter (1/2 NPT - M20)





rice lake 882is intrinsically safe weight indicator

882IS
PART #   PRODUCT DESCRIPTION
195091   Indicator, 882IS 7.5 VDC SST Enclosure 5 Button Keypad With Standard Tilt Stand

185288   Indicator, 882IS 7.5 VDC SST Enclosure 5 Button Keypad With Battery Pack and Tilt Stand 115-230VAC charger NEMA 5-15(North American plug)

194231   Indicator, 882IS 7.5 VDC SST Enclosure 5 Button Keypad With Battery Pack and Tilt Stand 115-230VAC CEE 7/7 Continental Europe Charger

194232   Indicator, 882IS 7.5 VDC SST Enclosure 5 Button Keypad With Battery Pack and Tilt Stand 115-230VAC BS 1363 UK Charger

185290   Indicator, 882IS 7.5 VDC SST Encl. 5 Button Keypad W/AC Power Supply w/10ft(3m) PS cable 115-230VAC

194235   Indicator, 882IS 7.5 VDC SST Enclosure 5 Button Keypad With A/C Power Supply. 115-230VAC with metric thread adapter (1/2NPT - M20)







OPTIONS
180831  Battery Option,IS6V2 Barrier Protected, Rechargeable
194191  Battery Charger, IS6V2 100-240VAC NEMA 5-15 North America Plug
194189  Battery Charger, IS6V2 100-240VAC CEE 7/7 Continental Europe Plug
194192  Battery Charger, IS6V2 100-240Vac BS1363 UK Molded Plug
180837  Power Supply,882IS mb-EPS-100-240-X2, Dual Output 6.8VDC 200mA
195109  Power Supply,882IS Metric mb-EPS-100-240-X2, Dual Output 6.8VDC 200mA Metric thread adapter included 1/2in NPT - M20
179668  Cable, M12 Power 22 inch Hazardous Location, D-code straight male to right angle female
179669  Cable,M12 Power 10 Foot Hazardous Location, D-code straight male to right angle female
179670  Cable,M12 Power 50 Foot Hazardous Location, D-code straight male to right angle female
179671  Cable,M12 Power 100 Foot Hazardous Location, D-code straight male to right angle female
163751  Tilt Stand,880 Desktop
179678  Tilt stand, 882IS battery option
177709  Module, 882 Smart I/O Interface for 882IS Smart Card Interface, Ethernet Fiber-Optic/RS485 interface
78026    Cable,Plastic Optical 100 ft
78027    Cable,Plastic Optical 200 ft
190528  882 Opt,Single Analog Output (0-10VDC, 0-20mA, 4-20mA)
190530  882 Opt,Ethernet/IP CompactCom Option
190531  882 Opt,DeviceNet CompactCom Option
190532  882 option, ProfiNet
190533  882 Opt,Modbus TCP CompactCom Option
190534  882 Opt,Profibus CompactCom Option
190535  882 Opt,EtherCAT CompactCom Option





Rice Lake Weighing Systems® warrants that all Rice Lake Weighing Systems intrinsically safe (IS) equipment and systems installed by a qualified electrician will operate per written specifications as confirmed by the distributor/OEM and accepted by Rice Lake Weighing Systems. All systems and components are warranted against defects in materials and workmanship for one year. All Rice Lake Weighing Systems intrinsically safe equipment carries a Factory Mutual approval and is documented on various control drawings. Each device is manufactured by a Rice Lake Weighing Systems factory authorized personnel. To preserve the warranty and Factory Mutual approval, all repairs or replacement of circuit boards or components housed within the enclosures must be performed by Rice Lake Weighing Systems factory authorized personnel.
