B-Tek Patient/Wheelchair Scale

B-Tek Patient/Wheelchair Scale

The B-TEK Wheelchair / Patient Scale was designed with the input of a leading nationwide dialysis provider. This legal-for-trade version of the B-TEK industrial-grade floor scale is ideal for weighing dialysis patients before and after treatment. Patients are precisely weighed on foot or in a wheelchair on the recessed weighing platform, and the optional wall mount indicator allows for simple and efficient operation.

RFQ

Call: (919) 776-7737

Share on Facebook

The all-new sleek design legal for trade scales allows precise, simple, and efficient weighing of patients on foot or by wheelchair. Weigh confidently knowing these scales have passed the National Type Evaluation Program.

The B-TEK Wheelchair / Patient Scale was designed with the input of a leading nationwide dialysis provider. This legal-for-trade version of the B-TEK industrial-grade floor scale is ideal for weighing dialysis patients before and after treatment. Patients are precisely weighed on foot or in a wheelchair on the recessed weighing platform, and the optional wall mount indicator allows for simple and efficient operation.

PATIENT SCALE SPECIFICATIONS

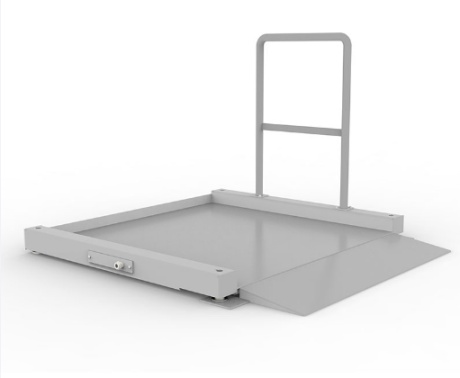

btek patient scale above ground with ramp and handrail

  • Above-ground scale with bolt down ramp and hand rails
  • Certificate of Conformance: NTEP Approved 94-092A4
  • Type: Low profile above ground
  • Scale Capacity: 1000 lb x 0.2 lb
  • Scale Height: 1-1/2” nominal deck height
  • Platform Sizes: 36” x 36” OR 48” x 48”
  • Weighbridge: Carbon steel smooth deck non-slip surface finish, single bolt down ramp & handrail standard
  • Deck: Side access FRP junction box, leveling foot adjustment holes in side rail
  • Paint System: Grey epoxy finish
  • Load Cell: Plated alloy steel, 350 Ohms, 3.0mV/V 1000 lb. capacity: (4) 1000 lb. cells
  • Leveling foot: B-TEK stainless steel ball encapsulated foot - 2.5” diameter base
  • Junction Box: NEMA 4 fiberglass reinforced plastic (FRP) with signal trim summing board
  • Optional: T403S wall mount indicator with printer

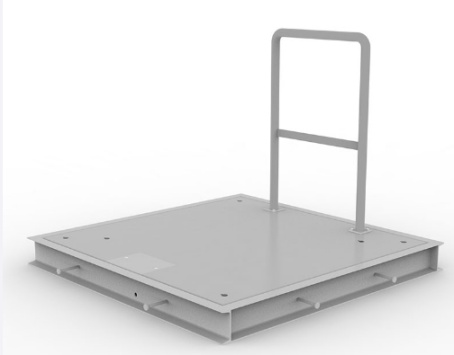

btek patient scale in-ground version

  • In-floor scale with pit frame and handrail
  • Certificate of Conformance: NTEP Approved 94-092A4
  • Type: Low profile in-floor installation
  • Scale Capacity: 1000 lb x 0.2 lb
  • Scale Height: 4” nominal deck height - flush to floor mounted in pit frame
  • Platform Sizes: 36” x 36” & 48” x 48” - Custom sizes upon request
  • Weighbridge: Carbon steel smooth deck with non-slip surface finish with pit frame and handrail
  • Deck: Top access FRP junction box, leveling foot adjustment holes
  • Finish: Grey epoxy finish
  • Load Cell: Plated alloy steel, 350 Ohms, 3.0mV/V 1000 lb. capacity: (4) 1000 lb. cells
  • Leveling foot: B-TEK stainless steel ball encapsulated foot - 2.5” diameter base
  • Junction Box: NEMA 4 fiberglass reinforced plastic (FRP) with signal trim summing board
  • Optional: T403S wall mount indicator with printer





ITEM # ...... DESCRIPTION
913-2010  Above Ground 36x36
913-2011  Above Ground 48x48

911-2015  In ground kit 36x36
911-2016  In ground kit 48x48
