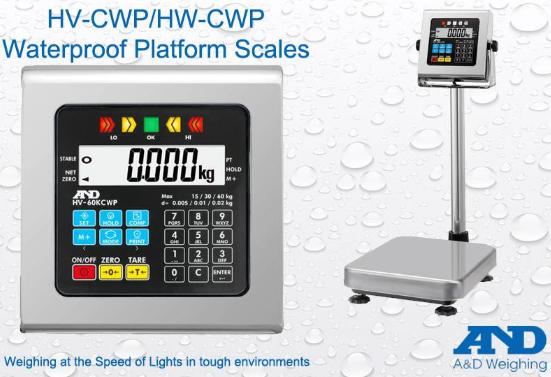

A&D Weighing HV-WP Stainless Steel Bench Scales

Stainless steel, washdown construction bench scale from A&D Weighing. Triple-Range scales suitable for wet environments.

RFQ

Call: (919) 776-7737

Share on Facebook



The A&D HV-WP Stainless Steel Bench Scales feature Preset Tare, Comparator Function, Comparator Buzzer with OP-03, Setpoint Control for Simple Batching, Multiple Weighing Units and Modes, Hold Function, Counting and Percentage Modes.




HV-15KWP HV-60KWP HV-200KWP
Capacity (kg) 3 6 15 15 30 60 60 150 220
Resolution (kg) 0.001 0.002 0.005 0.005 0.01 0.02 0.02 0.05 0.1
Capacity (lb) 6 15 30 30 60 150 150 300 500
Resolution (lb) 0.002 0.005 0.01 0.01 0.02 0.05 0.05 0.1 0.2
Capacity (oz) 96 240 480 480 960 2400 2400 4800 8000
Resolution (oz) 0.05 0.1 0.2 0.2 0.5 0.1 1 2 5
Capacity (lb-oz) 30 not
available
not
available
Resolution (lb-oz) 0.1
Max. Count 15,000 pieces 12,000 pieces 11,000 pieces
Operating Temp. -10°C ~ +40°C/+14°F ~ +40°F RH < 85%
Linearity (g) ±1 ±2 ±5 ±5 ±10 ±20 ±20 ±50 ±100
Display 7-segment vacuum fluorescent display, character height = 20mm
Pan Size mm 250 x 250 330 x 424 390 x 530
in 9.8 x 9.8 13.0 x 16.7 15.4 x 20.9
Dimensions W x D x H mm 250 x 466 x 437 330 x 615 x 786 390 x 700 x 786
in 9.8 x 18.3 x 17.2 13.0 x 24.2 x 30.9 15.4 x 27.6 x 30.9
Power AC 110 ~ 120 VAC, 60 Hz
Weight (approx.) 8kg / 17.6lb 13kg / 28.7lb 19kg / 41.9lb



Accessories Available

HVWP-02 Display Extension Cable (17")
HVWP-03 RS-232C & Comparator/Setpoints (relays & audio)
HVWP-04 RS-422/485 & Comparator/Setpoints (relays)
HV/W-17LSC Swivel/Lock Caster for above 30 lb capacities (each)
