Rice Lake RS-130 / RS-160 Battery Operated Price Computing Scale

Rice Lake RS-130 / RS-160 Battery Operated Price Computing Scale

Rice Lake RS-130 / RS-160 retail scale provides NTEP legal price computing functionality. The RS-130 displays weight in either pounds, kilograms or ounces and can save eight direct price lookups and 89 indirect price lookups. Quickly calculate cash back for applications where a cash register is not present. 30 x 0.01 lbs or 60 x 0.02 lbs

RFQ

Call: (919) 776-7737

Share on Facebook

What sets the Rice Lake RS-130 apart from the other NTEP Approved digital price computing scales on the market? That's an easy question -- First, the RS-130 displays weight in not only pounds, but also kg's and oz's. Second, the scale computes customer change for you! Third, the scale comes with an "in use" cover. Fourth, the scale can operate on standard AC power or the rechargeable battery that's included standard.

Rice Lake's RS130 retail scale is the ultimate choice for simple price computing applications delivering unmatched convenience and accuracy. For added convenience, the RS-130 can save eight direct price lookups and 89 indirect price lookups. Quickly calculate cash back for applications where a cash register is not present. The large stainless steel platter provides ample room for product and a standard in-use cover assures years of trouble free operation. The RS-130 is NTEP-certified and operates on a rechargeable battery (included).

The RS-130 is NTEP-certified legal for trade scale and operates on a rechargeable battery (included). A low battery annunciator signals the operator when it's time to recharge. Overall the RS-130 offers the most accurate, portable and affordable solution for simple price computing needs.

The system is now available in RS-160 version with 60 lb capacity. You can also purchase either the 30 lb or 60 lb scale with a tower display as well.

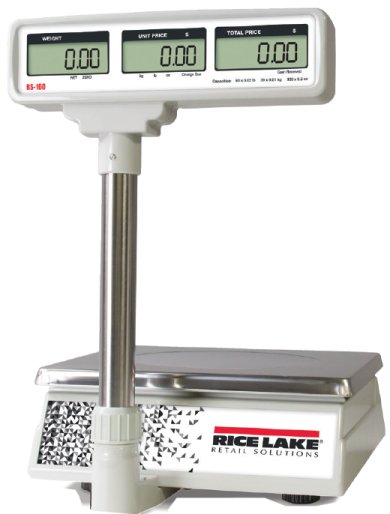

rice lake rs-160 with pole display





RICE LAKE RS-130 / RS-160 NTEP LEGAL FOR TRADE RETAIL SCALE

• Rechargeable battery or 115 VAC operation
• Toggle between lb/kg/oz
• Eight PLU keys for direct price lookups
• Cash back calculation
• Large stainless steel platter
• Easy-to-read customer display
• In-use cover
• 89 PLUs for indirect price lookups
• Battery charge indicator
• NTEP-certified Legal-for-Trade





PART NUMBER ........... DESCRIPTION / CAPACITY


167941 ............. RS-130 Standard
30 lb x 0.01 lb / 15 kg x 0.005 kg / 480 oz x 0.2 oz

168100 ............. RS-130 Pole Display
30 lb x 0.01 lb / 15 kg x 0.005 kg / 480 oz x 0.2 oz

167942 ............. RS-160 Standard
60 lb x 0.02 lb / 30 kg x 0.01 kg / 960 oz x 0.5 oz

168101 ............. RS-160 Pole Display
60 lb x 0.02 lb / 30 kg x 0.01 kg / 960 oz x 0.5 oz







Options/Accessories
47976   Fish Platter
47977   Produce Platter











Old Part Numbers For Reference Only
P/N.........DESCRIPTION......
85608   RS-130 Standard 30 lb x 0.01 lb / 15 kg x 0.005 kg / 480 oz x 0.2 oz

89483   RS-130 with RS-232
30 lb x 0.01 lb / 15 kg x 0.005 kg /480 oz x 0.2 oz

94586   RS-130 (no ounces) Measurement Canada approved
30 lb x 0.01 lb / 15 kg x 0.005 kg

70056   RS232 cable DB9 for use with part 89483























Replacement Parts

R-30 PRICE-COMPUTING SCALE
63801 ......Main board, 00-60-001 ..........................................................
63802 ......Rear board, 00-60-002 ..............................................................
63803 ......LCD display, 00-60-003 .............................................................
63804 ......Load cell, 00-60-004................................................................
63209 ......Keyboard, overlay attached, 00-60-005 .....................................
63805 ......Plastic housing, top, 00-60-006 .................................................
63806 ......Plastic housing, base, 00-60-007...............................................
63807 ......Plastic tray, 00-60-008 ...............................................................
63808 ......Spider (pair), 00-60-009 .............................................................
49790 ......Power supply, UL Listed, 00-60-010 .........................................
50247 ......Stainless steel tray, 00-60-011 ...................................................
68493 ......Display, front window, 00-60-014...............................................
68494 ......Display, rear window, 00-60-015 ................................................
52751 ......Level, spirit bubble, 00-60-012.....................................................
68492 ......Power supply, 230 VAC, CE marked, 00-60-013........................

RS-130 PRICE-COMPUTING SCALE
85709......Membrane keysheet.................................................................
85710......Battery, 6V Rechargeable ............................................................
85711......Clear in-use cover ........................................................................
85712......Operator overlay.........................................................................
85714......Plastic housing-base ..................................................................
85715......Plastic housing-cover .................................................................
85716......Leg, leveling, rubber.....................................................................
85717......Power cord ................................................................................
85718......Power switch, ON/OFF ................................................................
85719......EEROM-IC 93C66.......................................................................
85720......Load cell, 20 kg .........................................................................
85721......Load cell, spider.........................................................................
85722......CPU board with LCD displays ..................................................
85723......Customer display boad .............................................................

ISHIDA NOVA-II PRICE-COMPUTING SCALE
15 & 30 lb Capacity

44394......Platter, 89-1562-18..................................................................
47082......Display, panel, 15 lb, 89-1819-05...............................................
45194......Display, panel, 30 lb, 89-1822-07...............................................
45202......Specification plate, 89-1820-00 ..................................................
44403......Case, upper, 89-1554-18...........................................................
45200......Keyboard assembly., 89-1818-20 ............................................
44405......Platter support, rubber, 89-1561-05.............................................
44407......Screw, limit, 89-0668-06 .............................................................
44409......Platter support, 89-1556-06.......................................................
44411......Transformer assembly., 89-1609-19...........................................
44413......Load cell, C2G1-10K, 15 lb, 89-0642-00 .................................
44414......Load cell, C2G1-25K, 30 lb, 89-0643-03 .................................
45198......PK-201, rear facing display, 89-1723-01 ....................................
47083......PK-200A, CPU, PCB, 15 lb, 89-1719-33 .................................
45197......PK-200A, CPU, PCB, 30 lb, 89-2148-03 .................................
44420......Bracket, display operation, 89-1559-07 ......................................
45195......Harness, S2, display, 89-1611-17 ..............................................
45196......Bracket, custom display, 89-1558-03..........................................
44422......Base, 89-1560-11......................................................................
44423......Leg, level adjust, 23-3052-14.......................................................
44424......Plate A, 89-0665-05.....................................................................
44425......Level unit, 89-0914-02 .................................................................
44431......Sealing bolt, 89-2116-04 .............................................................
44427......Plate, connector, 89-1557-00 ......................................................
44428......Power cord, 89-1612-01............................................................
44426......Bushing, power cord, 89-0540-03 ..............................................
42861......Push rivet, 00-7882-04 ................................................................
44421......Level decal, 89-1931-00 ..............................................................
44430......Cord band, 89-2076-09.............................................................
45128......Sealing screw, 00-6609-00 ..........................................................
42735......Sealing stamp, 22-3922-08..........................................................

ISHIDA NOVA-II (Cont.)
60 lb Capacity

44394......Platter, 89-1562-18..................................................................
47092......Display, panel, 89-1825-08 ........................................................
45202......Specifi cation plate, 89-1820-00 ...................................................
44403......Case, upper, 89-1554-18...........................................................
45200......Keyboard assembly., 89-1818-20 ..............................................
44406......Platter support, rubber, 89-1631-11.............................................
44408......Bar screw, M, 89-1630-09 ...........................................................
44410......Platter support, 89-1884-17.......................................................
44411......Transformer assembly., 89-1609-19...........................................
44393......Load cell, C2G1-60K, 89-0644-07...........................................
45198......PK-201, rear facing display, 89-1723-01 ....................................
47093......PK-200, CPU, PCB, 89-1722-17 .............................................
44420......Bracket, display operation, 89-1559-07 ......................................
45195......Harness, S2, display, 89-1611-17 ..............................................
45196......Bracket, custom display, 89-1558-03..........................................
44432......Base, 89-0640-11......................................................................
44423......Leg, level adjust, 23-3052-14......................................................
44424......Plate A, 89-0665-05.....................................................................
44425......Level unit, 89-0914-02 ................................................................
44431......Sealing bolt, 89-2116-04 .............................................................
44427......Plate, connector, 89-1557-00 ......................................................
44428......Power cord, 89-1612-01...........................................................
44426......Bushing, power cord, 89-0540-03 ..............................................
42861......Push rivet, 00-7882-04 ...............................................................
44421......Level decal, 89-1931-00 .............................................................
44433......L bracket, 89-1956-11..............................................................
44430......Cord band, 89-2076-09.............................................................
45128......Sealing screw, 00-6609-00 .........................................................
42735......Sealing stamp, 22-3922-08..........................................................

ISHIDA NOVA-II (Cont.)
30 & 60 lb Capacity with Pole Display

44394......Platter, 89-1562-18.................................................................
45194......Display, panel, 30 lb model, 89-1822-07 ....................................
47092......Display, panel, 60 lb model, 89-1822-07 ....................................
45202......Specifi cation plate, 89-1820-00 ...................................................
44403......Case, upper, 89-1554-18...........................................................
45200......Keyboard assembly., 89-1818-20 ..............................................
44405......Platter support, rubber, 89-1561-05.............................................
44406......Platter support, rubber, 60 lb model, 89-1631-11 ........................
44407......Screw, limit, 89-0668-06 ..............................................................
44409......Platter support, 89-1556-06......................................................
44410......Platter support, 60 lb model, 89-1884-17 ..................................
44411......Transformer assembly., 89-1609-19...........................................
44414......Load cell, C2G1-25K, 30 lb model, 89-0643-03 ......................
44393......Load cell, C2G1-25K, 60 lb model, 89-0643-03 ......................
44415......Window cover, 89-1857-07........................................................
45197......PK-200A, CPU, PCB, 30 lb model, 89-2148-03.......................
47093......PK-200A, CPU, PCB, 60 lb model, 89-2148-03.......................
44420......Bracket, display operation, 89-1 559-07 ......................................
47084......Harness, S2, display, 89-1707-01 ..............................................
42861......Push rivet, 00-7882-04 ................................................................
44422......Base, 89-1560-11......................................................................
44432......Base, 60 lb model, 89-0640-11 .................................................
44423......Leg, level adjust, 23-3052-14.......................................................
47085......Plate B, 89-0662-04 ....................................................................
44425......Level unit, 89-0914-02 .................................................................
44431......Sealing bolt, 89-2116-04 .............................................................
44427......Plate, connector, 89-1557-00 ......................................................
44428......Power cord, 89-1612-01............................................................
44426......Bushing, power cord, 89-0540-03 ...............................................
47086......Pole bracket, 89-1880-03 ..........................................................
47087......Pole stand, 89-1881-07 .............................................................
47088......Rear display case, 89-0639-08 ...................................................
47091......PK-202, 89-1724-05................................................................
47089......Front display case, 89-0638-04 ..................................................
47090......Cap, N-2, 89-0730-04 ................................................................
44421......Level decal, 89-1931-00 ..............................................................
44430......Cord band, 89-2076-09.............................................................
44424......Plate A, 89-0665-05....................................................................
45128......Sealing screw, 00-6609-00 .........................................................
42735......Sealing stamp, 22-3922-08..........................................................
