A&D Weighing HV-C/CP & HW-C/CP Series Bench Scales

A&D Weighing HV-C/CP & HW-C/CP Series Bench Scales

High Performance, Multifunctional Platform Scale for Standard Industrial Applications. Triple-range NTEP legal-for-trade bench scale. Built-in traffic light comparator with 10 digit keypad.

RFQ

Call: (919) 776-7737

Share on Facebook

Quick and Easy Measurements

Improve efficiency in your weighing process with fast stabilization times and built-in LED lights for quick comparator judgements. A wide selection of accessories and connectivity options make for easy integration into any weighing workflow.

  • High-speed weighing in one second to increase your weighing efficiency
  • Quickly determine if a weight is below, within or above target with built-in tricolor LED comparator lights
  • Large, clear backlit liquid crystal display (LCD) shows all important information at a glance even in dimly lit areas
  • 10-digit alphanumeric keypad simplifies setting comparator limits and programming

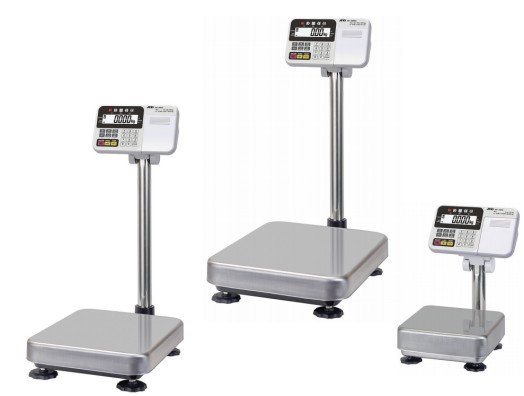

a&d hv-c bench scales with lcd displays

Trusted Accuracy

Feel secure in your weighing process with built-in key lock function and seamless data capture with built-in printer. Easily meet NTEP and Measurement Canada Requirements with HV-C models.

  • Legal for Trade, triple range capabilities with the HV-C models
  • Multiple built-in functions to streamline your weighing processes including: Piece Counting, Accumulation, and Checkweighing
  • Key Lock Function limits operators to the minimum required keys, preventing accidental changes and errors
  • Meet GLP/GMP/ISO standards with seamless data capture with built-in printer (applicable models)
  • Multiple connectivity capabilities via USB or RS-232 to control the scale, change settings and output data



Robust and Dependable

Sturdy die-cast aluminum frame and stainless steel weighing platform provide the protection and stability necessary for tough industrial weighing. IP65 rated base allows for wet-area weighing and is easy to keep clean and hygienic.

  • IP65 rated base and stainless steel platform allow for wet-area weighing and are easy to keep clean

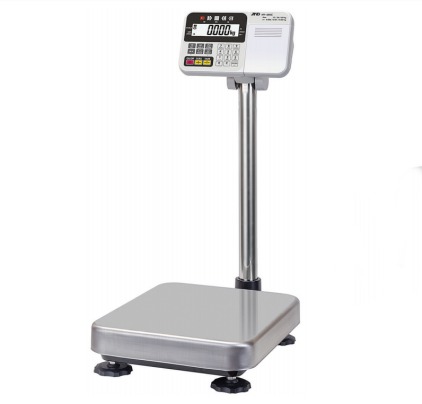

  • Dependable operation anywhere with the ability to run off of four standard D batteries





Model Capacity Readability Pan Size
HW-10KC 20lb / 10kg / 320oz / 20lb-oz 0.002lb / 0.001kg / 0.05oz / 0.1lb-oz 9.8 x 9.8in / 250 x 250mm
HW-10KCP 20lb / 10kg / 320oz / 20lb-oz 0.002lb / 0.001kg / 0.05oz / 0.1lb-oz 9.8 x 9.8in / 250 x 250mm






HW-60KC 150lb / 60kg / 2400oz 0.01lb / 0.005kg / 0.2oz 12.95 x 16.69in / 330 x 424mm
HW-60KCP 150lb / 60kg / 2400oz 0.01lb / 0.005kg / 0.2oz 12.95 x 16.69in / 330 x 424mm






HW-100KC 200lb / 100kg / 3200oz 0.02lb / 0.01kg / 0.5oz 15.35 x 20.87in / 390 x 530mm
HW-100KCP 200lb / 100kg / 3200oz 0.02lb / 0.01kg / 0.5oz 15.35 x 20.87in / 390 x 530mm
HW-200KC 500lb / 220kg / 8000oz 0.05lb / 0.02kg / 1oz 15.35 x 20.87in / 390 x 530mm
HW-200KCP 500lb / 220kg / 8000oz 0.05lb / 0.02kg / 1oz 15.35 x 20.87in / 390 x 530mm






HV-15KC 3|6|15lb / 6|15|30kg / 96|240|480oz 0.002|0.005|0.01lb / 0.001|0.002|0.005kg / 0.05|0.1|0.2oz 9.8 x 9.8in / 250 x 250mm
HV-15KCP 3|6|15lb / 6|15|30kg / 96|240|480oz 0.002|0.005|0.01lb / 0.001|0.002|0.005kg / 0.05|0.1|0.2oz 9.8 x 9.8in / 250 x 250mm






HV-60KC 15|30|60lb / 30|60|150kg / 480|960|2400oz 0.01|0.02|0.05lb / 0.005|0.01|0.02kg / 0.2|0.5|1oz 12.95 x 16.69in / 330 x 424mm
HV-60KCP 15|30|60lb / 30|60|150kg / 480|960|2400oz 0.01|0.02|0.05lb / 0.005|0.01|0.02kg / 0.2|0.5|1oz 12.95 x 16.69in / 330 x 424mm






HV-200KC 60|150|220lb / 150|300|500kg / 2400|4800|8000oz 0.05|0.1|0.2lb / 0.02|0.05|0.1kg / 1|2|5oz 15.35 x 20.87in / 390 x 530mm
HV-200KCP 60|150|220lb / 150|300|500kg / 2400|4800|8000oz 0.05|0.1|0.2lb / 0.02|0.05|0.1kg / 1|2|5oz 15.35 x 20.87in / 390 x 530mm
