Artech 20210 S-Beam Load Cell

Artech 20210 S-Beam Load Cell

Artech 20210 S-Beam Load Cell Economical s-type load cell for use in tank weighing, scale conversions and in-line force measurement applications. The versatile and compact unit works in tension or compression and is lightweight. Made in USA quality

RFQ

Call: (919) 776-7737

Share on Facebook

Economical load cell for use in tank weighing, scale conversions and in-line force measurement applications. The versatile and compact s type load cell works in tension or compression and is lightweight. Also rugged and sealed for use in washdown areas. Matched output available on request (3.0 +- 0.1%)



• 25 to 40,000 pounds capacities
• Used in Tension & Compression
• Nickel/Chrome Plated Alloy Steel
• Complete environmental protection
• NTEP Certified versions available for Class III 5,000 divisions and Class III L 10,000 divisions
• Factory Mutual (F.M.) Approved

Applications
• Electronic Conversion of Mechanical Scale
• Tank, Hopper & Bag Weighing
• Force Measurement - Tension and Compression
• Dynamometers
• Hanging and Crane Scales
• Industrial Automation
• Concrete batching plants

 Standard Capacities : (lbs.)
25, 50, 75, 100, 150, 200, 250, 300, 500, 750, 1K, 1.5K, 2K, 2.5K, 3K, 5K, 10K, 15K, 20K 30K, 40K
 Excitation Voltage :
10VDC - Maximum 15VDC
 Rated Output :
3.0 mv/v Minimum
 Non-Linearity :
< 0.03% FSO (Full Scale Output)
 Hysteresis :
< 0.02% FSO
 Non-Repeatability :
< 0.01% FSO
 Zero Balance :
± 1.0% FSO
 Bridge Resistance :
350 ohms nominal
 Safe Overload :
150% of Rated Capacity

 Temperature :
           Compensated Range :
           Effect of Output :
           Effect on Zero :


0 - 150 deg. F
< 0.0008% FSO/deg. F
< 0.0011% FSO/deg. F
 Finish :
Electroless Nickel/Chrome Plated

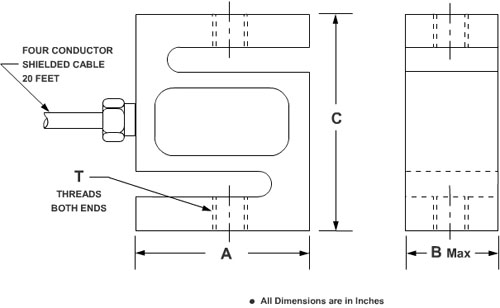

CAPACITY
(lbs.)
A
B Max.
C
T Threads
25-300
2.00
0.75
2.50
1/4 - 28 UNF - 2B
500-2.5K
2.00
1.00
2.50
1/2 - 20 UNF - 2B
3K
3.00
1.25
4.00
1/2 - 20 UNF - 2B
5K - 10K
3.00
1.25
4.00
3/4 - 16 UNF - 2B
15K
3.50
1.50
5.50
1 - 14 UNF - 2B
20K
4.50
2.00
7.00
1 1/4 - 12 UNF - 2B
30K - 40K
5.75
2.75
10.00
1 1/2 - 12 UNF - 2B
