AWB Series Portable Weigh Beams

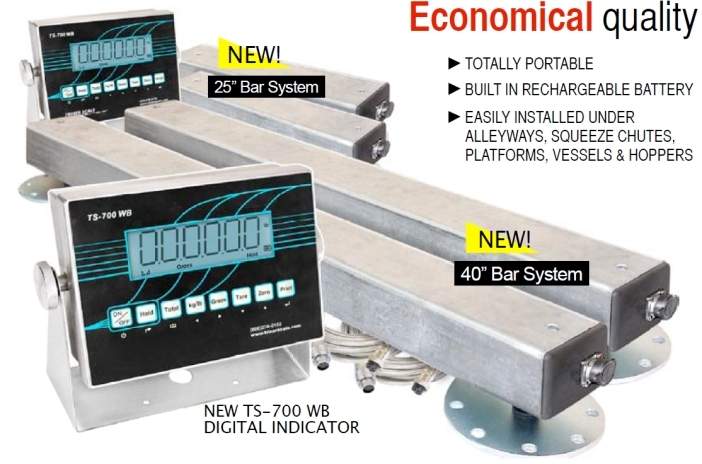

AWB Weigh Bars Set of (2) load bars calibrated with digital weight indicator. These are probably the finest in the industry both in performance and quality. It includes 2 complete weigh bars, 2 quick disconnect cables, and one stainless steel indicator with internal battery. Choice of length. Cap: 5000 lbs.

RFQ

Call: (919) 776-7737

Share on Facebook

AWB-5K Portable Weigh Bars

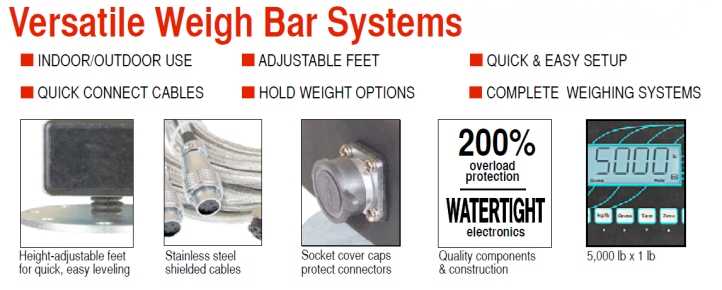

AWB-5K Weigh Bars and AWB40-5K Weigh Bars Set of (2) load bars calibrated with digital weight indicator. These are probably the finest in the industry both in performance and quality. It includes 2 complete weigh bars, 2 quick disconnect cables, and one stainless steel indicator with internal battery. These weigh bars are virtually watertight with sealing at the end of the bar as well as the feet. There are quick disconnect steel braided cables on both ends to make service a snap. Most weigh bars on the market these days are brought over on a boat from China and have feet that are not very stable at all. These load bars are the exception to the rule. These have feet that are 6 1/4", galvanized, and can be mounted (if the customer desires) with cement bolts provided. We have been recommending and selling weigh bars for years and have finally designed what many feel are the very best available. These are ideal for building your own cattle weighing system. Great for alleyway, squeeze chutes and more.

Portable Weigh Bar Scales

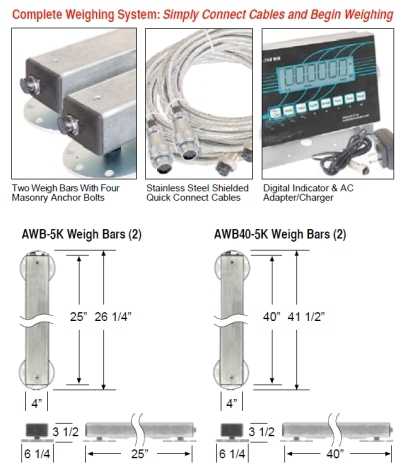

Each AWB-5K System Includes
• Two weighbars (choice of length either 25" or 40")
• Two 15 ft. cables, stainless steel shielded, quick connects at both ends
• AC adapter/charger
• Masonry anchor bolts (4)
• Platform/weigh bar bolts (4)
• Operating Manual
• Factory Calibration

Portable livestock scale

WEIGH BARS AND DIGITAL INDICATOR COMBO SPECIFICATIONS

WEIGH BARS
Capacity: 5,000 lb x 1 lb
• Four premium, alloy steel nickel plated loadcells
• Loadcells are watertight for indoor or outdoor operation
• Loadcell capacity is 2 times the scale capacity
• Built in overload protection
• 15' quick connecting cables (2)
• Inegrated 1/2” nuts for top mounts
• Weight:
- AWB-5K: 25 lb/bar
- AWB40-5K: 35 lb/bar

TS-700 WB DIGITAL INDICATOR (included)
* NEMA 4X watertight stainless steel construction
• Bright easy-to-read backlit LCD display
• Lb/kg conversion
• Tare function
• Built in RS-232 communications port:
• Tilt adjustable mounting bracket
• Operates on 110 VAC or internal rechargeable battery, 20+ hours operation per charge

weigh bar scale specifications





Part #
Model #
Length
Capacity
AWB-5K
TS-700WB
25"
5000 x 1 lb
AWB40-5K
TS-700WB
40"
5000 x 1 lbs
