Avery Weigh-Tronix ZM155 Intrinsically Safe Indicator

Avery Weigh-Tronix ZM155 is a flexible and highly reliable weight indicator specifically designed for hazardous environments. A large display allows operators to view the weight and complete their process with confidence. Multiple built-in communication technology ports give users the ability to display, store, and transmit data across devices.

RFQ

Call: (919) 776-7737

Share on Facebook

The Avery Weigh-Tronix ZM155 FM approved indicator is the perfect fit for all applications from simple weighing or filling to advanced applications. Featuring standard RS232 or RS485 communications with commands for controlling the instrument from both Hazardous and Safe areas, the ZM155 provides flexibility along with easy installation and hassle free operation. Whether installed as a standalone weighing indicator or coupled to other Z Series products, the ZM155 from Avery Weigh-Tronix is the solution for your explosion proof application needs.

Enclosure
Enclosed in IP69K rated brushed 304 stainless steel, the ZM155 is ideal for use in demanding industrial environments. Use the included desk mount for easy installation or add an optional wall mount bracket for additional mounting options.

Tailored Connectivity
The ZM155 allows you to use standard RS232 or RS485 communications to the optional ZM155-COM module to connect to safe area control systems. Commands to control the instrument from both Hazardous and Safe areas allow ultimate flexibility as it adapts to your business work flow.

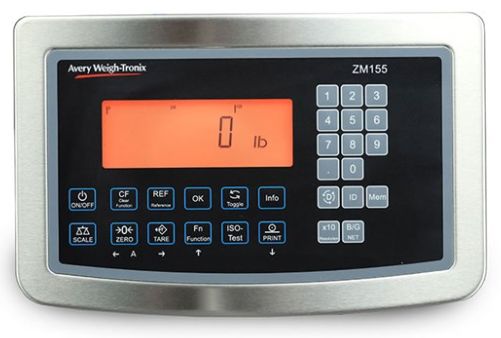

weigh-tronix zm155 intrinsically safe weight indicator

ZM155 Indicator:
Hazardous (Classified) Location
Class I, II, III, Division 1, Groups A, B, C, D, E, F, G
Class I, Zone 1, Groups IIA, IIB, IIC
Zone 21

ZM155-PSU-H:
Hazardous (Classified) Location
Class I, II, III, Division 1, Groups A, B, C, D, E ,F, G

ZM155-BAT:
Hazardous (Classified) Location
Class I, II, III, Division 2, Groups A, B, C, D, F, G, T4
Class I, Zone 1, Group IIC
Class II, Zone 20





PART # ............ DESCRIPTION
AWT05-509415    ZM155 Indicator





Power Options
AWT05-509416    Assy, ZM155 PSU-H
AWT05-509417    Assy, ZM155 PSU-S
AWT05-509418    Assy, ZM155 Battery Option
AWT05-509419    Kit, ZM155 Battery Charger
