B-Tek Truck Scale Junction Box & Summing Board

Selection of B-Tek Motor Truck Scale Junction Boxes and Summing Boards as well as floor scale j-boxes and summing cards as well.

RFQ

Call: (919) 776-7737

Share on Facebook

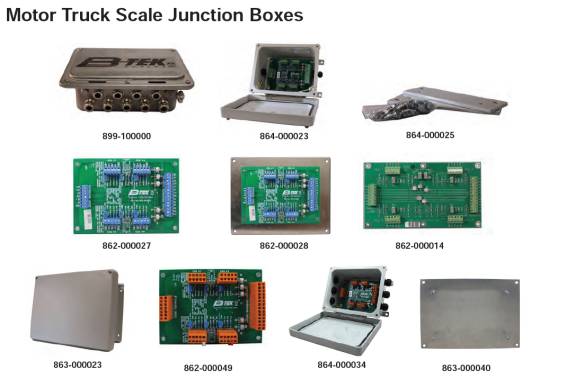

truck scale summing board with lightning protection

Part No.       Description
899-100000   CPD-M Digital Load Cell Jbox NEMA4x SST 8Cell card for digital load cell scales

864-000023   Truck Scale FRP Junction Box & Board New Style NEMA4x FRP Jbox w/4Cell Summing Card & Cord Grips, fully assembled 3/8” Cord Grips

864-000024   Truck Scale FRP Junction Box & Board New Style NEMA4x FRP Jbox w/4Cell Summing Card & Cord Grips, fully assembled 1/2” Cord Grips

864-000025   Truck Scale FRP Junction Box Retrofit Brackets New Style - For use w/ new style junction boxes above - set of (2) brackets will bolt to new style. Brackets match mounting hole pattern on existing weighbridges.

100-150146   New Style FRP Enclosure - No Holes / Grips

863-000034   Back plate - Aluminum - Standoff’s & mounting screws included - Fits 100-150146

862-000027   Truck Scale - 4Cell Summing Card New Style 4Cell Sum Card w/ individual, section trim & GDT devices for surge voltage - lightning protection

862-000028   Truck Scale - 4Cell Summing Card & Back Plate New Style 4Cell Sum Card w/ retrofit aluminum back plate to fit existing (old style) 10”x8”x6” FRP Jbox

864-000011   Truck Scale - FRP Junction Box & Board NEMA4x FRP Jbox w/ 4Cell sum card & cord grips. Fully Assembled 3/8” Cord Grips

864-000017   Truck Scale - FRP Junction Box & Board NEMA4x FRP Jbox w/ 4Cell sum card & cord grips. Fully Assembled 1/2” Cord Grips 10”x8”x6”

863-000009   Truck Scale - FRP Junction Box NEMA4x FRP Jbox & cord grips. Fully Assembled 3/8” Cord Grips 10”x8”x6”

863-000029   Truck Scale - FRP Junction Box NEMA4x FRP Jbox & cord grips. Fully Assembled 1/2” Cord Grips 10”x8”x6”







Also available
Floor Scale Junction Boxes and Summing Boards
864-000008   NEMA4 FRP Jbox w/4 cell signal trim summing card - 4Square 5k
863-000025   NEMA4 FRP Jbox w/cord grips only
864-000015   NEMA4x SST Jbox w/4 cell signal trim summing card - 4Square 5k
863-000022   NEMA4x SST Jbox w/cord grips only
862-000012   Signal Trim Summing Card 4 Cell JB2000

CG-57115      Excitation Summing Card, 4 Cell, Narrow
ABS-30AS      ABS J-Box w/ Signal Trim Card
ABS-30AE      ABS J-Box w/ Excitation Trim



Vehicle, Railroad Track, Livestock Scales Requiring Individual Load Cell & Section Trim Adjustments
S-45CS         Summing Card, 4-Cell, Expandable, Signal Trim
S-45CE         Summing Card, 4-Cell, Expandable, Excitation Trim
S-45CS-SP    Summing Card, 4-Cell, Expandable, Signal Trim, Surge Protection
S-45CE-SP    Summing Card, 4-Cell, Expandable, Excitation Trim, Surge Protection
SS-4045B     SS Enclosure

S-65CS         Summing Card, 6-Cell, Expandable, Signal Trim
S-65CE         Summing Card, 6-Cell, Expandable, Excitation Trim
S-65CS-SP    Summing Card, 6-Cell, Expandable, Signal Trim, Surge Protection
S-65CE-SP    Summing Card, 6-Cell, Expandable, Excitation Trim, Surge Protection
SS-65B         SS Enclosure

S-85CS         Summing Card, 8-Cell, Expandable, Signal Trim
S-85CE         Summing Card, 8-Cell, Expandable, Excitation Trim
S-85CS-SP    Summing Card, 8-Cell, Expandable, Signal Trim, Surge Protection
S-85CE-SP    Summing Card, 8-Cell, Expandable, Excitation Trim, Surge Protection
SS-85B         SS Enclosure

S-10CS         Summing Card, 10-Cell, Expandable, Signal Trim
S-10CS-SP    Summing Card, 10-Cell, Expandable, Signal Trim, Surge Protection
SS-10B         SS Enclosure
