Cambridge 660-PW U-Shape Horseshoe Scale

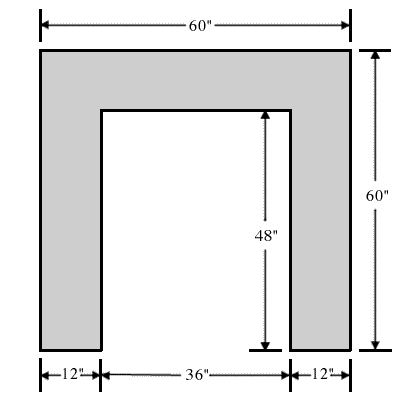

Cambridge 660-PW U-Shape horseshoe scale fits small and large pallets and fits all standard "pallet jack trucks" and most "power walkies". Anti-Skid diamond plate deck. Easy access leveling feet and junction board, Low profile 3" high design. Overall size is 60" x 60" with 5000 or 10,000 lb capacity.

RFQ

Call: (919) 776-7737

Share on Facebook

Looking for a U-shaped floor scale that will allow you to weigh pallets without having to buy a floor scale with long ramp that is almost as big as the floor scale? The Cambridge Scale Works 660-PW Series fits all standard "pallet jack trucks" and most "power walkies". These 5 x 5 horseshoe shaped scales feature side access junction board and a Unique Load Cell alignment for increased accuracy. Please note, this scale is not designed to weigh pallets with boards under the runners.

u-shape horseshoe scale

STANDARD FEATURES
• Fits small and large pallets.
• Fits all standard "pallet jack trucks" and most "power walkies".
• Structural tubular steel design.
• Anti-Skid diamond plate deck.
• Shock load protection.
• 20 foot meter cable.
• Four internally mounted, NTEP Certified-5000 Division, IP67 load cells.
• Shielded signal and load cell cables protected inside tubular steel frame.
• Compatible with digital indicators having remote base capabilities.
• Easy access leveling feet and junction board.
• Low profile 3" high design.
• 150% overload protection.
• 1 part in 5000 accuracy.









Model
Platform Size
Capacity
Ship Weight
660-PW-5K
60" x 60" x 3"
5000 x 1 lb
335 lb
660-PW-10K
60" x 60" x 3"
10,000 x 2 lb
455 lb







OPTIONS
• Stainless steel or aluminum construction
• On board plastic NEMA 4X junction box
• Remote stainless steel NEMA 4X junction box with 10' seal tite conduit
• Stainless steel load cells
