Cardinal Centerpoint Stainless Steel Load Cells

Cardinal Scale Manufacturing CenterPoint stainless steel load cells are double-ended shear beam cells with center load design. They are a direct replacement for competitive load cells. They are also available in three or four legged mounting assemblies with mild or stainless steel stands and self-checking sliding pin design. Capacities range from 2,500 to 50,000 lbs.

RFQ

Call: (919) 776-7737

Share on Facebook

CenterPoint double-ended shear beam stainless steel load cells with center load design are ideal for Tank and Hopper Scales. The Centerpoint load cells are available individually or as part of a three or four load cell system with mounting stands.

The bolt-in-place mounting assembly with articulating top plate makes them ideal for indoor or outdoor weighing applications. Available in three or four legged mounting assemblies with mild or stainless steel stands and self-checking sliding pin design, the CenterPoint load cell kits are perfect for mixing, blending, batching, inventory control, and general weighing. Combine them with one of Cardinal's state of-the-art 200 series weight indicators for a complete digital weighing system.



Load Cell Specifications
Rated Output: 3mV/V
Combined Error: 0.03% of rated output
Protection Class: IP68
Cable Length: 30 feet / 9 meter
Construction: Stainless Steel



 cardinal centerpoint stainless steel load cell

LOAD CELLS

Model        Description
CLDB2.5K   Load Cell, Center Point, Double-Ended Shear Beam, 2,500 Lb Capacity, Square
CLDB5K      Load Cell, Center Point, Double-Ended Shear Beam, 5,000 Lb Capacity, Square
CLDBR5K    Load Cell, Center Point, Double-Ended Shear Beam, 5,000 Lb Capacity, Round
CLDBR10K  Load Cell, Center Point, Double-Ended Shear Beam, 10,000 Lb Capacity, Round
CLDBR20K  Load Cell, Center Point, Double-Ended Shear Beam, 20,000 Lb Capacity, Round
CLDBR30K  Load Cell, Center Point, Double-Ended Shear Beam, 30,000 Lb Capacity , Round
CLDBR50K  Load Cell, Center Point, Double-Ended Shear Beam, 50,000 Lb Capacity, Round

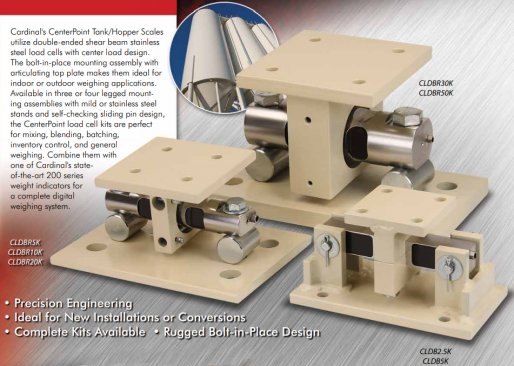

Also available, Load Cells with Mounting Assemblies

cardinal centerpoint tank and hopper scale load cell kit

3 LOAD CELL SYSTEMS | Mild Steel Stands

MODEL ..... CELL SHAPE .. CELL CONSTRUCTION .. CELL CAPACITY .. SYSTEM CAPACITY
CLDB2.5K-3     Square     Stainless Steel            2,500 lb / 1,135 kg         7,500 lb / 3,405 kg
CLDB5K-3        Square     Stainless Steel            5,000 lb / 2,270 kg       15,000 lb / 6,810 kg
CLDBR5K-3      Rounded   Stainless Steel           5,000 lb / 2,270 kg        15,000 lb / 6,810 kg
CLDBR10K-3    Rounded   Stainless Steel         10,000 lb / 4,535 kg       30,000 lb / 13,605 kg
CLDBR20K-3    Rounded   Stainless Steel        20,000 lb / 9,070 kg        60,000 lb / 27,210 kg
CLDBR30K-3    Rounded   Stainless Steel        30,000 lb / 13,605 kg      90,000 lb / 40,824 kg
CLDBR50K-3    Rounded   Stainless Steel        50,000 lb / 22,700 kg    150,000 lb / 68,040 kg



3 LOAD CELL SYSTEMS | Stainless Steel Stands

CLDBS2.5K-3    Square     Stainless Steel      2,500 lb / 1,135 kg          7,500 lb / 3,405 kg
CLDBS5K-3       Square     Stainless Steel     5,000 lb / 2,270 kg         15,000 lb / 6,810 kg
CLDBRS5K-3     Rounded   Stainless Steel     5,000 lb / 2,270 kg         15,000 lb / 6,810 kg
CLDBRS10K-3   Rounded   Stainless Steel    10,000 lb / 4,535 kg       30,000 lb / 13,605 kg
CLDBRS20K-3   Rounded   Stainless Steel    20,000 lb / 9,070 kg       60,000 lb / 27,210 kg
CLDBRS30K-3   Rounded   Stainless Steel    30,000 lb / 13,605 kg     90,000 lb / 40,824 kg
CLDBRS50K-3   Rounded   Stainless Steel    50,000 lb / 22,700 kg   150,000 lb / 68,040 kg



4 LOAD CELL SYSTEMS | Mild Steel Stands

CLDB2.5K-4       Square     Stainless Steel     2,500 lb / 1,135 kg       10,000 lb / 4,540 kg
CLDB5K-4          Square     Stainless Steel     5,000 lb / 2,270 kg       20,000 lb / 9,080 kg
CLDBR5K-4       Rounded    Stainless Steel    5,000 lb / 2,270 kg        20,000 lb / 9,080 kg
CLDBR10K-4     Rounded    Stainless Steel   10,000 lb / 4,535 kg       40,000 lb / 18,140 kg
CLDBR20K-4     Rounded    Stainless Steel   20,000 lb / 9,070 kg       80,000 lb / 36,280 kg
CLDBR30K-4     Rounded    Stainless Steel   30,000 lb / 13,605 kg    120,000 lb / 54,420 kg
CLDBR50K-4     Rounded    Stainless Steel   50,000 lb / 22,700 kg    200,000 lb / 90,800 kg



4 LOAD CELL SYSTEMS | Stainless Steel Stands

CLDBS2.5K-4      Square    Stainless Steel     2,500 lb / 1,135 kg      10,000 lb / 4,540 kg
CLDBS5K-4         Square    Stainless Steel     5,000 lb / 2,270 kg      20,000 lb / 9,080 kg
CLDBRS5K-4      Rounded   Stainless Steel    5,000 lb / 2,270 kg       20,000 lb / 9,080 kg
CLDBRS10K-4    Rounded   Stainless Steel   10,000 lb / 4,535 kg     40,000 lb / 18,140 kg
CLDBRS20K-4    Rounded   Stainless Steel   20,000 lb / 9,070 kg     80,000 lb / 36,280 kg
CLDBRS30K-4    Rounded   Stainless Steel   30,000 lb / 13,605 kg   120,000 lb / 54,420 kg
CLDBRS50K-4    Rounded   Stainless Steel   50,000 lb / 22,700 kg   200,000 lb / 90,800 kg


CenterPoint load cell kits contain either 3 or 4 stand assemblies, corresponding number of stainless steel load cells with 30 ft / 9 m of load cell cable, and 1 stainless steel junction box.
