Cardinal 190 Storm Digital Weight Indicator

Built for extreme-use applications in the weighing industry, the Cardinal Scale 190 STORM IP69K-rated polycarbonate enclosure withstands high-temperature high-pressure wash downs. The 190 STORM features capacitive touch keys, 1-inch-high clearly visible LCD digits and versatile power options

RFQ

Call: (919) 776-7737

Share on Facebook

Cardinal's 190 STORM weight indicator is built for extreme-use applications and the IP69K-rated polycarbonate enclosure withstands high-temperature (up to 176F/80C), high-pressure washdowns (1450 PSI). Built for extreme-use applications in the weighing industry, the 190 STORM’s IP69K-rated polycarbonate enclosure withstands high-temperature (up to 176º F / 80º C), high-pressure wash downs (1450 PSI). The 190 STORM features capacitive touch keys, 1-inch-high clearly visible LCD digits, built-in RS232 communications port, and versatile power options: AC, DC, and rechargeable battery.

The 190 STORM’s bright, vivid display changes color automatically as the pre-assigned target weights are reached. The operator knows immediately when they’ve reached the acceptable weight range based on the amber, green, or red color changes for UNDER, ACCEPT, or OVER weights. NTEP legal-for-trade and OIML certified. Also see the new 190A indicator available for axle weighing.

COLORZONE CHECKWEIGHING
ColorZONE is the solution for efficient time management during your checkweighing processes. The bright, vivid display, changes color automatically as the pre-assigned target weights are reached. You know immediately when you’ve hit the acceptable weight range. The 190 STORM displays amber for under weight, green for accepted weights, and bright red when weights exceed the upper weight limit. The target weights are easy to assign through the 190’s capacitive touch keypad and can be changed quickly as different sized products are weighed.

cardinal 190 digital indicator
190 STORM Specifications
Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max. / 190DC: 10.5 to 30 VDC 1.0A Max.
Enclosure Type: Thermoplastic IP69K wall or desk-mount
Enclosure Size: 9.4 inch W x 6.4 inch H x 3.7 inch D / 239 mm W x 163 mm H x 93 mm D
Operating Environment: Temperature: 14 to 104 ºF (-10 to +40 ºC)
Humidity: 90% non-condensing (maximum)
Display: Six digit, seven segment, 1.0 inch high Backlit LCD
Transducer Excitation: 5.18 VDC
Signal Input Range: 0.5 mV min. to 40 mV max. (with dead load boost)
Number of Load Cells: 6 each, 350 OHM minimum resistance
Load Cell Cable Length: 1500 feet maximum.
30 feet maximum without sense lines
Consult factory for other requirements
Division Value: 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001 commercial
0 to 99, non-commercial
Sensitivity:
        NON-COMMERCIAL
        COMMERCIAL

0.15 uV/e
0.5uV/e (Class III/IIIL/IIIHD)
Scale Divisions:
        NON-COMMERCIAL
        COMMERCIAL

100 to 240,000
100 to 10,000 (Class III/IIIL/IIIHD)
Internal Resolution: 1 part in 16,777,216
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable
Auto Zero Range: 0.5 or 1 through 9 divisions
Sample Rate: 1 to 100 samples per second, selectable
Weighing Units: Pounds, Ounces, Kilograms, Grams
Keypad: Color Coded Capacitive Touch type, 7 keys
Standard I/O: (1) bi-directional RS232

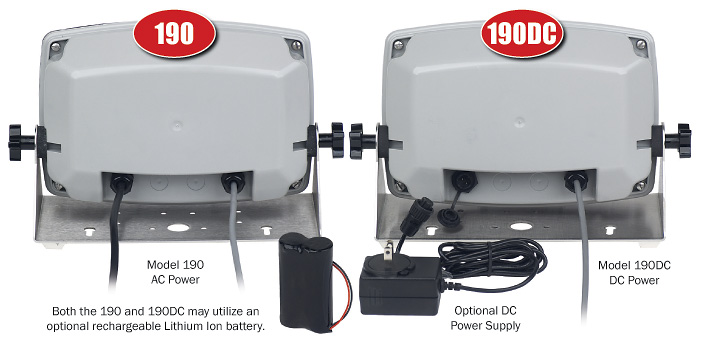

power options
