Detecto Digital Eye Level Medical Scales

These Detecto digital physician scales with large stable platforms are the right choice for home, health, and clinical office weighing. The scales are designed for years of dependable and accurate weighing, versatile enough to meet all clinical health requirements.

RFQ

Call: (919) 776-7737

Share on Facebook

Below are the current digital physicians scale choices available from Detecto Scale in Webb City, Missouri. Detecto is known throughout the world as a leader in digital medical scales for hospitals, doctors offices and medical clinics.

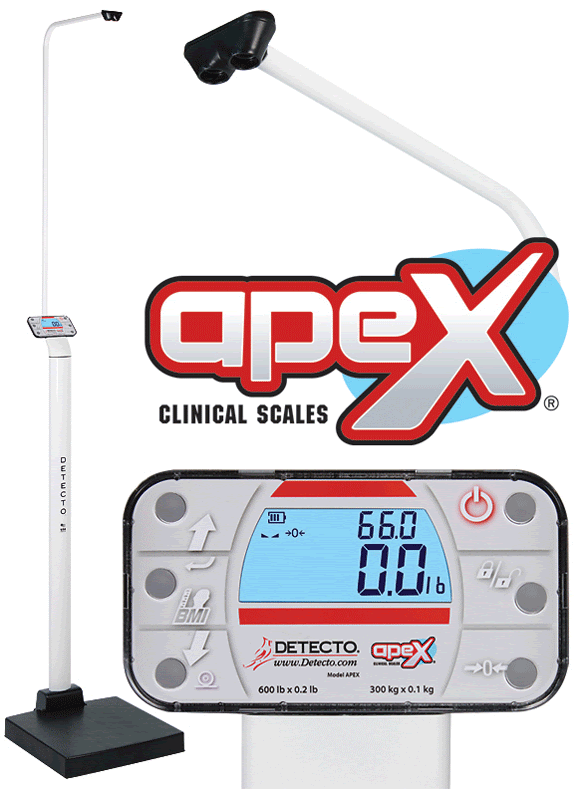

DETECTO'S apex® series physician scales with optional touchless sonar height rods create an environment of efficiency, accuracy and reliability for optimal healthcare patient measurement. With exclusive state-of-the-art sonar technology, patients simply step on the low-profile scale platform, hold their head straight, and receive their digital height and weight readouts instantly and accurately.

The hands-free technology promotes a sanitary environment where the sonar height rod can lock on the patient's height of nearly any size without having to press a single key.

DETECTO's apex® eye-level scale features a high-tech, "smartphone like" indicator for easy operation. The scale will automatically lock on a patient's weight temporarily for a few seconds in order to view the weight and for the healthcare professional to record the measurement.

Height and weight are displayed simultaneously on the 0.75-inch-high LCD, and you'll simply press the BMI key if you additionally want to see the Body Mass Index calculation. Purchase the model APEX-SH for your next physician scale and enjoy all of these patient satisfaction benefits!



detecto icon, apex and solo medical scales

DETECTO’s APEX-SH series eye-level digital physician scales feature touchless sonar height rods and an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H. The apex® scale automatically captures patient weight and height readings and displays both onscreen without pushing a single button. The apex® features 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, 0.75-inch-high LCD weight readouts, BMI calculation, AC or battery power (AC adapter included on some models), 2 RS232 serial ports and 1 micro USB-B port, HL7 IEEE 11073 compliance, Wi-Fi and Welch Allyn connectivity available, and they assemble quickly right out of the box (no tools required). This scale replaces the PD300DHR.

ITEM ................ DESCRIPTION
APEX-SH               apex Digital Clinical Scale, Sonar Height Rod, 600 lb x 0.2 lb / 300 kg x 0.1 kg
APEX-SH-AC         apex Digital Clinical Scale, Sonar Height Rod, Includes Non-Medical-Grade AC Adapter
APEX-SH-WI-AC    apex Digital Clinical Scale, Wi-Fi, Sonar Height Rod, Includes Non-Medical-Grade AC Adapter
APEX-SH-UWA-AC apex Digital Clinical Scale, Welch Allyn CVSM/CSM Connectivity, AC Adapter, Sonar Height Rod
APEX-SH-LXI-AC   apex Digital Clinical Scale, Welch Allyn LXI Connectivity, AC Adapter, Sonar Height Rod



sonar height rod scale





Detecto apex® eye-level digital physician scales feature inline mechanical height rods and an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H. The apex® scale features 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, 0.75-inch-high clinical-blue LCD weight readouts, BMI calculation, AC or battery power (AC adapter included on some models), 2 RS232 serial ports and 1 micro USB-B port, HL7 IEEE 11073 compliance, Wi-Fi and Welch Allyn connectivity (available on some models), dual wheels for transport, sturdy column construction, integral bubble level, and they assemble quickly right out of the box in just a few easy seconds (no tools required). This scale replaces the models; 6127, 6127KG, 6129, 6129KG, 6337, 6339.

ITEM .......... DESCRIPTION
APEX               apex Digital Clinical Scale, Mechanical Height Rod, 600 lb x 0.2 lb / 300 kg x 0.1 kg
APEX-AC          apex Digital Clinical Scale, Includes Non-Medical-Grade AC Adapter, Mechanical Height Rod
APEX-WI-AC     apex Digital Clinical Scale, Includes Non-Medical-Grade AC Adapter, Wi-Fi, Mechanical Height Rod
APEX-UWA-AC  apex Digital Clinical Scale, Welch Allyn CVSM/CSM Connectivity, AC Adapter, Mechanical Height Rod
APEX-LXI-AC    apex Digital Clinical Scale, Welch Allyn LXI Connectivity, AC Adapter, Mechanical Height Rod







DETECTO’s icon® eye-level digital physician scales feature state-of-the-art, sonar height rods and an ultra-thin platform only 1.5 inches high. The icon® series scales feature an extra-high 1,000-lb capacity, multi-color touchscreen LCD display, 0.9-inch-high LCD weight digits, 1 USB-B port, HL7 IEEE 11073 compliance, Wi-Fi Ethernet model available for wireless EMR/EHR, 17 in W x 17 in D weighing platform, and weight, height, and BMI displayed onscreen simultaneously. The icon’s powerful sonar touchless height rod combined with an all-in-one color display means the patient simply steps onto the scale platform and within a second your full measurements are all displayed onscreen.

ITEM # ......... DESCRIPTION
ICON           icon Digital Clinical Scale, Sonar Height Rod, 1000 lb / 500 kg Capacity
ICON-WI      icon Digital Clinical Scale, Wi-Fi, Sonar Height Rod, Includes Non-Medical-Grade AC Adapter
ICON-LXI     icon Digital Clinical Scale, Welch Allyn LXI Connectivity, AC Adapter, Sonar Height Rod
ICON-UWA   icon Digital Clinical Scale with Sonar Height Rod & Welch Allyn CVSM/CSM











DETECTO’s solo® eye-level clinical scale is the most economical, high-quality digital physician scale with height rod available. The solo® scale features 550 lb x 0.2 lb / 250 kg x 0.1 kg capacity, 14 in W x 15 in D x 2.4 in H low-profile platform, inline mechanical height rod (measures 30 in to 84.5 in / 76 cm to 214.5 cm), eye-level weight display and column, one-inch-high LCD readouts, Body Mass Index calculation, integral wheels for mobility, one RS232 serial port, and convenient audible beep confirmation. The solo® indicator features 8 simple buttons that are easily identifiable in any language. The solo® is powered by 6 AA batteries, which are included, or an optional AC adapter. This scale replaces the PD300 and PD300MHR.



ITEM # ....... DESCRIPTION
SOLO            solo Digital Clinical Scale, Mechanical Height Rod, 550 lb x 0.2 lb / 250 kg x 0.1 kg

Options
PD-AC  Adapter for solo® and ProDoc® scales, 100-240V/ 9VDC











Options for older Detecto Digital Scales
6800-1045 ........... AC Adapter 100-240 VAC / 12 VDC @ 1A
