Doran Low Profile Baggage Scale

Doran Low Profile Baggage Scale

The scale base is less than two inches tall. Doran was the first to introduce this revolutionary design using ultra slim components without compromising durability. The standard base size is 29.5" x 32". For NO ADDITIONAL charge, we can manufacture custom sizes from 18" x 18" to 48" x 36"

RFQ

Call: (919) 776-7737

Super Thin Scale Base

The scale base is less than two inches tall. Doran was the first to introduce this revolutionary design using ultra slim components without compromising durability. The standard base size is 29.5" x 32". For NO ADDITIONAL charge, we can manufacture custom sizes from 18" x 18" to 48" x 36" or a total of 1,728 square inches.

Outstanding Scale Durability & Reliability

A side load and vertical load protection system using rubber shock mounts prevents load cell sensor damage from impact and massive overloading as baggage is loaded onto the scale platform. An advanced electronic design prevents damage caused by electrostatic discharge present in dry airport environments. Easy to Operate Baggage weight is easily read from up to 20 feet on the large, bright red LED display. When baggage is placed on the scale, the displayed weight quickly stabilizes on the main and optional remote display.

Quick and Trouble-Free Scale Installation

The modular design of the Doran Baggage Scale makes installation a snap! All of the scale's electronics are contained in the panel mount main display—no additional electronics control box to install inside the counter. Simply install the main and remote displays into the counter cutouts and connect the foolproof keyed and locking connectors to the base, and the scale is ready to use.

indicator
remote (customer) display

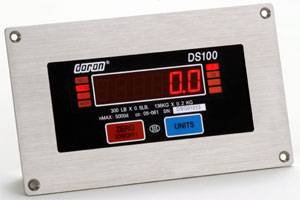

Close-up view of the Main Panel Mount Display

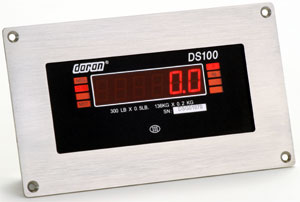

Close-up view of the Remote Panel Mount Display
LOW-PROFILE BASE DESIGN - MAIN DISPLAY ONLY
Model
Capacity
* Base Size
DBS6300M/2932
300 x 0.5
29.5" x 32" x 1.64” H
DBS6500M/2932
500 x 0.5




LOW-PROFILE BASE DESIGN - MAIN & REMOTE DISPLAY
Model
Capacity
* Base Size
DBS6300MR/2932
300 x 0.5
29.5" x 32" x 1.64” H
DBS6500MR/2932
500 x 0.5

Options
DBSOPT001 Remote Switch Box - UNITS and ZERO (on/off)
Stainless Steel Front Bezel, Panel Mount
DBSOPT002 RS-232 Serial Data Output, with 4 wire shielded cable, 10 ft., with 9 pin FEMALE “D” connector. Typically used for scale to PC connections.
* The standard base size for the low-profile base is 29.5" x 32" x 1.64” High. However, for NO ADDITIONAL CHARGE we can manufacture custom sizes from 18" x 18" to 48" x 36" or a total of 1,728 square inches.
