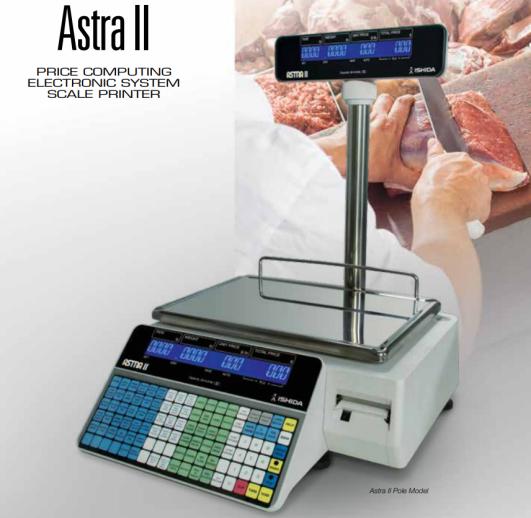

Ishida Astra II Price Computing Scale with Printer

Ishida Astra II Price Computing Electronic System Scale Printer

Print speed of 3.9 in (100 mm) per second
Point-of-purchase labels up to 2.5 in x 6.9 in (64 mm x 175 mm) W x L
Convenient side-loading label feature
2 MB of memory
TC/IP 10/100 Base T Ethernet
Proportional tare
84 one-touch preset keys, 168 presets
Optional software for PLU editing with a PC

Engineered for precision and consistency, the Ishida Astra II price computing scale with printer combines unmatched performance with an ergonomic design that enhances customer convenience. The Astra II, available from Central Carolina Scale, incorporates bright, easy-to-read displays, an easy label loading feature and user-friendly keyboard design for enhanced user operation perfect for supermarkets, bakeries, c-stores, delis and more!

To speed up setup, the Ishida Astra II features an optional software tool that allows quick PLU editing using a PC. In addition, the configuration parameters can be saved for safe backup. With memory storage of 2 MB, the Astra II can store a large amount of PLUs, tares and extra messages, virtually ensuring you will never run out of memory.

The Astra II produces eye-catching point-of-purchase labels up to 2.5 inches (64 mm) in width and 6.9 inches (175 mm) long—all at an incredibly fast 3.9 inches (100 mm) per second. With 84 one-touch preset keys and 168 presets, these programmable function keys allow for efficient transactions and ease-of-use for operators.

Enhanced Price Computing Performance with Ishida Astra II

PART # .... DESCRIPTION
185822       Retail Scale, Astra II Bench, VFD display, 0-30lbs x 0.01, Integrated Printer, 115VAC
185823       Retail Scale, Astra II Pole, VFD display, 0-30lbs x 0.01, Integrated Printer, 115VAC

Astra II Options
47733    Label,Roll Retail 2 Line UPC 64mm x 47mm (2.52" x 1.85") DTL Small Core 2 Color Red & Yellow 800 LPR 12 RPC
47977    Retail Scale OPT,Produce Platter 9-1/2 in Deep x 13-1/2 in Wide
47341    Receipt Paper,AC Series Thermal Printer 64mm Wide x 50 Meter Roll 1-9/16 Core DIA Sold Per Roll
184273  Technical manual
184270  Additional operating manual
184274  Additional operation card
47732    Label,Roll Retail 2 Line UPC 60mm x 44mm (2.36" x 1.73") DTL Small Core 2 Color Red/Blue 800 LPR 12 RPC
47976    Retail Scale OPT, Fish Platter 9-1/2 in Deep x 13-1/2 in Wide
47735    Label,Roll Retail 5 Line Text 64mm x 59mm (2.52" x 2.32") DTL Small Core 2 Color 625 LPR 12 RPC
47736    Label,Roll Retail 2 Line Text w/Safe Handling 64mm x 59mm (2.52" x 2.32") DTL 625 LPR Small Core 2 Color 12 RPC
47743    Label,Roll Retail Extended Text 64mm x 85mm (2.52" x 3.34") DTL 2 Color 425 - 450 LPR 1-5/8 Core 12 RPC
47745    Label,Roll Retail Safe Handling Center 64mm x 85mm (2.52" x 3.34") DTL 2 Color 425 - 450 LPR 1-5/8 Core 12 RPC
47762    Label,Roll Retail 2 Line Non-UPC W/Date 64mm x 37mm (2.52" x 1.46") DTL 2 Color 1000 LPR 1-5/8 Core 12 RPC
190641  Astra II SLP5 Lite software
190642  Astra II SLP5 Lite license file

OLD PART NUMBERS (for reference only)

P/N.........DESCRIPTION......
64986  Astra 30 x 0.01 lb
68505  Astra w/pole display 30 x 0.01 lb

66435 Astra CD-ROM (Contains AstraLink™ and AstraLabel™ software programs, operating manual, and label format worksheets)
66535 RS-232 Null modem 6 ft cable, DB9 female to DB9 female (Astra to PC, Astra to Astra)
47977 Produce platter
47976 Fish platter
47341 Continuous roll thermal journal paper, 64 mm W x 50 m L (for reports only)
66423 Service manual (lb model)
66019 Additional operating manual (lb model)

Replacement Parts

ISHIDA ASTRA PRICE-COMPUTING SCALE WITH PRINTER
Standard Model

66343......Platter .....................................................................................
66344......Filter, display panel .....................................................................
42734......Push rivet, 00-4761-06 ................................................................
66345......Name plate, specifi cation .............................................................
66346......Case, upper ..............................................................................
66347......Keyboard assembly, membrane, programming...........................
66348......Sheet, key board spacer ............................................................
66349......Keysheet, operator.....................................................................
66350......Keysheet, clear w/adhesive ..........................................................
66351......Sticker, level, bubble ....................................................................
66352......Frame, printer.............................................................................
66353......Standoff, A/D support ..................................................................
66354......Sensor, label gap........................................................................
66355......DC/DC converter .......................................................................
66356......Harness, S2, DC/DC....................................................................
66357......Motor, stepping print roller drive ................................................
66358......Bracket, stepping, motor............................................................
66359......Gear, stepping motor ...................................................................
66360......Gear, print roller............................................................................
66361......Motor, label rewind.....................................................................
66362......Bracket, printhead release............................................................
66363......Bracket, frame, printhead.............................................................
45145......Step, screw, pan, 36-0942-00 .....................................................
66364......Bracket, printhead lock ...............................................................
66365......Bracket, printhead......................................................................
45203......Spring, coil, compressive, 00-6375-09........................................
45237*.....Printhead, thermal, 36-2636-16 ...............................................
66366......Cable, printhead.........................................................................
45222......Shaft, lock, 49-6373-12 .............................................................
45206......Spring, coil, tension......................................................................
45221......Shaft, fulcrum, 00-6168-13 .........................................................
45188......Threaded rod, round, FF, 36-2507-00 ........................................
45201......Guide, label, outside, 20-6991-11................................................
45223......Threaded rod, round, FF, 50-6308-04 .........................................
66367......Guide, label, inside ......................................................................
66368......Bushing, right, print roller.............................................................
66369......Roller, printer ..............................................................................
66370......Bushing, left, print roller...............................................................
66371......Plate, label ................................................................................
66372......Reel, label take up.......................................................................
66373......Lever, label take up, reel..............................................................
66374......Label press .................................................................................
66375......Screw, set screw, M3 x 6 ............................................................
66376......Guide, label lever..........................................................................
66377......Reel, label supply ........................................................................
66378......Reel, label supply holder ..............................................................
66379......Bracket, load cell........................................................................
44414† ...Load cell, C2G1-25K, 89-0643-03..........................................
44410......Platter support, 89-1884-17.......................................................
44406......Rubber, platter support, 89-1631-11............................................

* Same as Ishida 3000 Series
† Same as Ishida Nova-II (30 lb)

ISHIDA Astra (Cont.)
Standard Model (Cont.)

66380......Cover, printer door ..................................................................
66381......Cover, front, printhead..................................................................
66382......Sticker, label roll loading ...............................................................
44423*† ....Leg, adjusting, 23-3052-05..........................................................
66383......Hinge, printer door .......................................................................
66384......Board, display, PK-221 ............................................................
66385......Bracket, display, front..................................................................
66386......Standoff display ...........................................................................
66387......Bracket, display, rear....................................................................
66389......Cable, S3, display ......................................................................
45128......Screw, sealing, brass, 00-6609-00...............................................
66388......Battery .......................................................................................
66390......Clamp, battery .............................................................................
44474......Screw, sealing, nylon, 89-2025-09 ...............................................
66391......Bracket, case, connector .............................................................
66392......Standoff, main board....................................................................
66393......Standoff, overload ........................................................................
66394......Screw, sealing, brass, self tapping................................................
66395......Base, base plate ........................................................................
45132*.....Power supply, switching, 89-2271-09 ......................................
66396......Cable, C3, power........................................................................
47073......Harness, S2, PS, 47-3677-19....................................................
66397......Socket assembly, C4, power cord.............................................
66398......Switch, power ............................................................................
15438......Power cord ................................................................................
66399......Board, A/D, PK-219.................................................................
66400......Board, main, PK-220A .............................................................
44425† .....Level, unit, 89-0914-02 ................................................................
66419......Standoff, DC/DC converter ..........................................................
66420......Standoff, mainboard.....................................................................
66401......Clip retainer, printhead..................................................................
66402......Rubber, plate support, solid .........................................................
66403......Filter, ferrite...................................................................................
42714......Screw, pan head tapping, M4 x 8, assembles #43 to #42 ............
42735......Sealing stamp ..............................................................................

* Same as Ishida 3000 Series
† Same as Ishida Nova-II (30 lb)

ISHIDA Astra (Cont.)
Pole Display Model

66343......Platter ......................................................................................
68944......Filter, display panel .....................................................................
42734......Push rivet, 00-4761-06 ................................................................
66345......Name plate, specifi cation ............................................................
66346......Case, upper ...............................................................................
66347......Keyboard assembly, membrane, programming..........................
66348......Sheet, key board spacer ............................................................
66349......Keysheet, operator....................................................................
66350......Keysheet, clear with adhesive ......................................................
66351......Sticker, level, bubble ....................................................................
66352......Frame, printer.............................................................................
66353......Standoff, A/D support .................................................................
66354......Sensor, label gap........................................................................
66355......DC/DC converter .......................................................................
66356......Harness, S2, AC/DC ..................................................................
66357......Motor, stepping print roller drive ................................................
66358......Bracket, stepping, motor............................................................
66359......Gear, stepping motor ...................................................................
66360......Gear, print roller............................................................................
66361......Motor, label rewind.....................................................................
66362......Bracket, printhead release...........................................................
66363......Bracket, frame, printhead............................................................
45145......Step, screw, pan, 36-0942-00 ...................................................
66364......Bracket, printhead lock ..............................................................
66365......Bracket, printhead.....................................................................
45203......Spring, coil, compressive, 00-6375-09.........................................
45237*.....Printhead, thermal, 36-2636-16 ..............................................
66366......Cable, printhead........................................................................
45222......Shaft, lock, 49-6373-12 ............................................................
45206......Spring, coil, tension......................................................................
45221......Shaft, fulcrum, 00-6168-13 ........................................................
45188......Threaded rod, round, FF, 36-2507-00 ........................................
45201......Guide, label, outside, 20-6991-11...............................................
45223......Threaded rod, round, FF, 00-6173-03 .........................................
66367......Guide, label, inside .....................................................................
66368......Bushing, right, print roller.............................................................
66369......Roller, printer .............................................................................
66370......Bushing, left, print roller................................................................
66371......Plate, label ................................................................................
66372......Reel, label take up......................................................................
66373......Lever, label take up, reel...............................................................
66374......Label press .................................................................................
66375......Screw, set screw, M3 x 6 ............................................................
66376......Guide, label lever..........................................................................
66377......Reel, label supply .........................................................................
66378......Reel, label supply holder ..............................................................
66379......Bracket, load cell.......................................................................
44414† ....Load cell, C2G1-25K, 89-0643-03...........................................
44410......Platter support, 89-1884-17.......................................................
44406......Rubber, platter support, 89-1631-11............................................

* Same as Ishida 3000 Series
† Same as Ishida Nova-II (30 lb)

ISHIDA Astra (Cont.)
Pole Display Model (Cont.)

66380......Cover, printer door ..................................................................
66381......Cover, front, printhead..................................................................
66382......Sticker, label roll loading ..............................................................
68946......Leg, adjusting, 89-3059-09..........................................................
66383......Hinge, printer door .......................................................................
68947......Case, front, 89-3054-01.............................................................
68948......PWB, display, 89-3064-08 .......................................................
68949......Case, rear, 89-3055-04..............................................................
68950......Pole stand, 89-3310-04 .............................................................
68945......Harness, S2, display, 89-3105-07 .............................................
45128......Screw, sealing, brass, 00-6609-00..............................................
66388......Battery .....................................................................................
66390......Clamp, battery .............................................................................
44474......Screw, sealing, nylon, 89-2025-09 ...............................................
66391......Bracket, case, connector .............................................................
66392......Standoff, main board....................................................................
66393......Standoff, overload ........................................................................
66394......Screw, sealing, brass, self tapping................................................
68953......Base, base plate, 89-2688-53....................................................
45132*.....Power supply, switching, 89-2271-09 ......................................
66396......Cable, C3, power.......................................................................
47073......Harness, S2, PS, 47-3677-19....................................................
66397......Socket assembly, C4, power cord..............................................
66398......Switch, power ............................................................................
15438......Power cord ................................................................................
66399......Board, A/D, PK-219.................................................................
66400......Board, main, PK-220A ............................................................
44425† .....Level, unit, 89-0914-02 ...............................................................
66419......Standoff, AC/DC converter, 89-2859-08 ......................................
66420......Standoff, mainboard, 89-2677-07 ................................................
66401......Clip retainer, printhead, 89-2973-34.............................................
66402......Rubber, plate support, solid, 89-3006-01.....................................
68952......Bracket, pole, 89-3056-08 .........................................................
68951......Cover, bracket, 89-3321-05 .........................................................
44424......Plate A, 89-0665-05.....................................................................
45174......Push rivet, 36-3442-05 ................................................................
66344......Sheet, display panel, 89-2843-18 ..............................................
46950*.....Cap, 40-1374-03 .........................................................................
Consult ....UL sticker, 89-2798-04 ................................................................
Consult ....Plate A, module, 89-3414-08 .......................................................
42714......Screw, pan head tapping, M4 x 8, assembles #43 to #42 ............
42735......Sealing stamp ..............................................................................

* Same as Ishida 3000 Series
† Same as Ishida Nova-II (30 lb)
