Floor Scale Mounting Plate

Mounting plates help to keep floor scales in one place and not slide around when you place a pallet on the top of the platform. There are various styles, sizes and materials available.

RFQ

Call: (919) 776-7737

Share on Facebook

Floor Scale Mounting Plates help to secure the floor scale to your warehouse floor. We have a variety of choices below. Call or email for a quote on the correct one for your scale. In most cases these can be added before your scale installation or after. If for some reason a scale can't be moved, these longer two hole mild steel versions make the task easy. Simply raise each corner of the floor scale and slip the foot retainer under the beam foot. The two mounting holes extend past the edge of the floor scale platform for drilling and bolting to the floor. You can see more detailed specs on the majority of these by viewing the floor scale accessories catalog (pdf file)



RoughDeck® Scale Base Mounting Plates

roughdeck mounting plate

- Secures RoughDeck® and other popular floor scales
- Prevents movement in horizontal plane
- Useful with Surefoot™ and other load cell foot assemblies
- Available in stainless steel and mild steel

P/N .......... MATERIAL ...........
19075 .... Mild Steel
19076 .... Stainless Steel





DIGI SUMMIT 3000 MOUNTING PLATE

roughdeck mounting plate

P/N ........... MATERIAL
76149 ....... Mild Steel



GENERIC FLOOR SCALE MOUNTING PLATES

plate to keep floor scales from sliding

• Suitable for use with leveling pads
• Generic mounting plate for popular floor scales
• Fits most floor scale foot assemblies
• Available in stainless steel and mild steel
(mild steel parts are zinc plated/painted)

Mild Steel:
18737
18738

Stainless Steel:
18751





Other Mounting Plates / Foot Retainers Available Include:

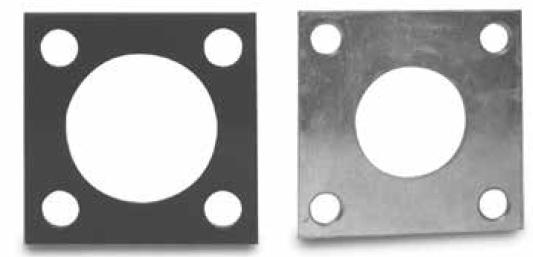

floor scale foot retainer

FR-1.875
Size: 4" x 4" x 1/4"
Foot Dia: 1-3/4"
Hole Dia: 1-7/8" ITEM# 6459

FR-2.000
Size: 4" x 4" x 1/4"
Foot Dia: 1-7/8"
Hole Dia: 2" ITEM# 6607

FR-2.125
Size: 4" x 4" x 1/4"
Foot Dia: 2"
Hole Dia: 2-1/8" ITEM# 6608

FR-2.625
Size: 4" x 4" x 1/4"
Foot Dia: 2-1/2"
Hole Dia: 2-5/8" ITEM# 6609

FR-3.125
Size: 4.5" x 4.5" x 1/4"
Foot Dia: 3"
Hole Dia: 3-1/8" ITEM# 6610

FRL-1.875
Size: 4" x 4" x 1/4"
Foot Dia: 1-3/4"
Hole Dia: 1-7/8" ITEM# 3131

FRL-2.000
Size: 3" x 4.5" x 1/4"
Foot Dia: 1-7/8"
Hole Dia: 2" ITEM# 4630

FRL-2.125
Size: 3" x 4.5" x 1/4"
Foot Dia: 2"
Hole Dia: 2-1/8" ITEM# 4631

FRL-2.625
Size: 4" x 4.5" x 1/4"
Foot Dia: 2-1/2"
Hole Dia: 2-5/8" ITEM# 4632

FRL-3.125
Size: 4" x 5" x 1/4"
Foot Dia: 3"
Hole Dia: 3-1/8" ITEM# 4633

FRL-3.625
Size: 4.5" x 6" x 1/4"
Foot Dia: 3-1/2"
Hole Dia: 3-5/8" ITEM# 4795
