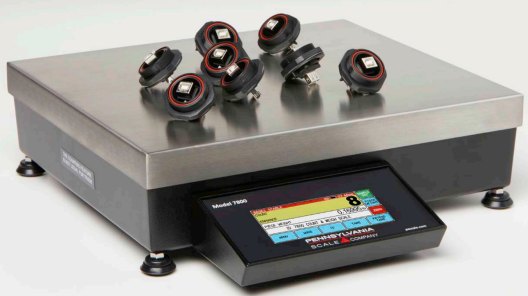

Pennsylvania 7800 Counting Scale

Whether picking parts or packaging products, the new high-resolution 7800 touchscreen scale helps you eliminate costly over/under errors for more accurate counting and weighing. You’ll work more efficiently and save on assembly and shipping costs.

Featuring a Windows-type operating display, embedded alpha-numeric keyboard and operational prompts, the 7800 offers superior flexibility to simplify the most sophisticated weighing application. For even greater operator ease and productivity, the screen displays only the data and input buttons of the function being used, so there’s no confusing on-screen clutter or data. The 7800’s super heavy-duty industrial design is reliable in the toughest environments for years of trouble-free performance.

When it comes to UX, the high-resolution 7800 touchscreen scale offers a level of functionality and ease of use that’s unmatched by competitive count/weigh systems. There are no proprietary codes to interpret. No on-screen scrolling. No confusing menus and settings to wade through.

The 7800’s user-friendly alpha-numeric QWERTY keyboard is the key. You input data just like entering contact information on your smart phone. Enter and identify count/weigh data and print labels in an easy-to-read alpha-numeric format via three user-defined and user-named ID fields.

SUPERIOR DATA MANAGEMENT
The standard 750 SKU lookup database lets you store and recall important count or weight information. Upgrade
your capabilities with the optional 1500 or 3000 database.

• Heavy-duty die cast and SS construction
• Clean, convenient design with bright, stable full-color display and touchscreen
• Full alpha-numeric QWERTY keyboard for easy entry of scale data points
• Check weighing
• SKU/Product ID Database to store and recall by alpha-numeric Part#, Description, Piece Weight, Tare Weight, 3 user-defined Fields, Over/Under Check Weigh Settings, Setpoint/Relay Target settings
• Weight displayed in any two units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
• Single or optional dual base-counting and weighing
• Multiple count modes and Auto Sample Update™, with percent-of error/accuracy display
• Fast one-step or two-step counting
• Two powerful and flexible standard serial ports, optional wired ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth®
• Four-year limited manufacturer warranty

MODEL .... CAP X READABILITY  ...... PLATFORM
7800-2    2 x 0.0002 lb / 907.2 x 0.2             8" X 8"
7800-5    5 x 0.0005 lb / 2268  x 0.5             8" X 8"

7800-10       10 x 0.002 lb / 4536 x 1           12" X 14"
7800-20       20 x 0.005 lb / 9.072 x 0.002   12" X 14"
7800-50       50 x 0.01 lb / 22.68 x 0.005     12" X 14"
7800-100   100 x 0.02 lb / 45.36 x 0.01       12" X 14"
7800-150   150 x 0.05 lb / 68.04 x 0.02       12" X 14"
7800-200   200 x 0.05 lb / 90.72 x 0.02       12" X 14"

Also Available 7800 "High Res" Version
7800-10 HR         10 x 0.0005 lb                    12" X 14"
7800-20 HR         20 x 0.0001 lb                    12" X 14"
7800-50 HR         50 x 0.002 lb                      12" X 14"
7800-100 HR     100 x 0.005 lb                      12" X 14"

Options

• Second base input
• Battery AC operation, built-in re-chargeable system, 30+ hours of operation
• Printers for label, barcode label or receipt printing
• Barcode scanner
• Upgraded Internal Product DB, 1500 and 3000 entries
• External power input 12 or 24 VDC. Specify at time of order. Requires external power supply of 12 or 24 VDC
• 220/230 VAC operation
• 1 alarm buzzer mounted inside scale or indicator
• Ball-top transfer plate
• Roller conveyor
• Setpoint/relays DC or AC
• Alarm stack lights and buzzer
• Communications Wired Ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth®
• Analog output, 4-20ma or 0-10vdc
• Custom label design and setup
• Custom engineering for unique applications

Spare Parts / Accessories
61200  7800 Scale AC pwr main board. Includes expansion connections for all options except AC/DC Op
61201  7800 Scale AC/DC pwr main bd for scales w/ built in battery Includes expansion connections for all options
57811  AO Analog Output option PC board, jumper select 4 – 20 mA or 0 – 10 VDC proportionate output 2-post screw terminals for connections – ALL MODELS. Requires (3) 57833 snap standoffs – n/c

57869A  Wired Ethernet TCP-IP Option REPLACEMENT BOARD ONLY
57869-1A  WiFi Ethernet TCP/IP Replacement Kit, Includes cable and antenna. FACTORY INSTALLED ONLY
57808  Bluetooth Option - Virtual Comport or HID\Keyboard Emul (Specify when ordered). FACTORY INSTALLED ONLY
57834  DB Dual Base KIT OF PARTS for 7600 Indicators and Scales; 7600E 2-base summing applications Kit of parts complete including board, standoffs, jumpers, and all components for field installation

57810  DB Dual Base BOARD only for field replacement applications Requires (3) 57833 snap standoffs – n/c
57818  SSR AC – RELAY OPTION BOARD for 7400, 7600E, and other applications Requires (2) 57856 aluminum standoffs – n/c.

57880  SSR DC – RELAY OPTION BOARD for 7400, 7600E, and other applications Requires (2) 57856 aluminum standoffs – n/c.

57579  7800 Display Assembly. Includes Display PCB Assembly, LCD Display and Touchscreen
57589  7800 Display overlay
57894  USB Bulkhead connector A to B Connector
57892  Wired Ethernet Bulkhead Connector RJ-45
57893  Bulkhead Port Sealing Cap for USB OR Ethernet bulkhead Connector
48445  Field Load Cell Connector Kit Pins, shell, body, strain relief in field install kit – all quick disconnect applications. For assembly with 20’ home run cable see 48817-5
