Pennsylvania M6600 Industrial Floor Scale

Pennsylvania M6600 Industrial Floor Scale

All floor scales are not alike. Pennsylvania 6600 scales are designed with features that outperform the competition. Premium black powder coat finish (mild steel models up to 60 x 60" 10K capacity). Premium load cells, wide range of capacities, platform sizes from 24 x 24" to 96 x 120" and capacities to 40,000 lbs.

RFQ

Call: (919) 776-7737

Share on Facebook

Pennsylvania MODEL 6600 FLOOR SCALE
Built Tough For Harsh Real World Applications – THOUSANDS OF SATISFIED CUSTOMERS

Pennsylvania M6600 made in America Floor Scale

Proven Floor Scales: On-floor, In-floor, or Portable applications
Mild Steel or Stainless Steel models
24 x 24" 500 lbs capacity to 96 x 120" 40,000 lbs capacity

All floor scales are not alike! Pennsylvania 6600 Series floor scales are designed for least life cost and sustained accuracy with features that outperform the competition:

Premium black powder coat finish (mild steel models up to 60' x 60" 10K capacity)
Premium Sensortronics™ or Coti load cells & (4) adjustable leveling feet
100% end loading capable of handling off-center loads or tanks
Heavy duty construction and low profile designed for rough industrial use and portable or permanent applications
Wide range of capacities, platform sizes, and accessories such as ramps, pit frames and anchor plates
Made in USA - ship NAFTA Free Trade to Canada and Mexico
Suitable for Commercial Applications (subject to local Weights & Measures regulations)
Sizes from 24 x 24" to 96 x 120" and capacities 500 lbs to 40,000 lbs
FIVE YEAR Limited Mfg Warranty



* 20’ cable standard with Quick Disconnect
* Available 500 to 40,000 LB capacities and in sizes from 24” X 24” to 96” X 120”
* Powder coated Steel, Painted Steel and Stainless Steel version
* Designed for Portable, Pit (recessed in-floor), or On-Floor applications
* Optional pit frames, pit spacers (for formed pits), Loading Ramps



Use with a Pennsylvania 7400+, 7500+, 7600+ or 7600E Indicators or 7600 counting scale for a Complete Scale System

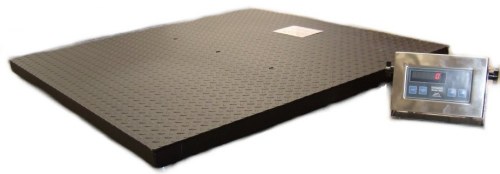

Pennsylvania 6600 Industrial Floor scale

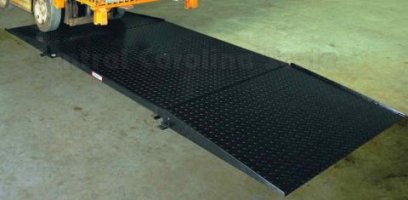

*Pennsylvania Scale MS6600 shown w/ optional ramps -- Believe it or not, there's even a difference in RAMPS: Pennsylvania's loading ramps have UNIQUE knuckle-saving Hand Holds, attachment brackets, and bolt down tabs as standard equipment. Premium powder coat finish up to 48" x 48" models.



6600 SCALE PLATFORM — MILD STEEL BASE PAINTED

Part Number .... Capacity .... Dimensions
M6600-2424-1K    1,000     24" X 24" - 3"h
M6600-2424-2K    2,000     24" X 24" - 3"h
M6600-2424-5K    5,000     24" X 24" - 3"h

M6600-3030-1K    1,000     30" X 30" - 3"h
M6600-3030-2K    2,000     30" X 30" - 3"h
M6600-3030-5K    5,000     30" X 30" - 3"h

M6600-3636-1K    1,000     36" X 36" - 3"h
M6600-3636-2K    2,000     36" X 36" - 3"h
M6600-3636-5K    5,000     36" X 36" - 3"h
M6600-3636-10K  10,000    36" X 36" - 3"h

M6600-3648-1K     1,000    36" X 48" - 3"h
M6600-3648-2K     2,000    36" X 48" - 3"h
M6600-3648-5K     5,000    36" X 48" - 3"h
M6600-3648-10K  10,000    36" X 48" - 3"h

M6600-4848-1K     1,000     48" X 48" - 3"h
M6600-4848-2K     2,000     48" X 48" - 3"h
M6600-4848-5K     5,000     48" X 48" - 3"h
M6600-4848-10K  10,000    48" X 48" - 3"h
M6600-4848-20K  20,000    48" X 48" - 4"h
M6600-4848-30K  30,000    48" X 48" - 5"h
M6600-4848-40K  40,000    48" X 48" - 5"h

M6600-4860-5K     5,000     48" X 60" - 3"h
M6600-4860-10K  10,000    48" X 60" - 3"h
M6600-4860-20K  20,000    48" X 60" - 4"h
M6600-4860-30K  30,000    48" X 60" - 5"h
M6600-4860-40K  40,000    48" X 60" - 5"h

M6600-4872-5K     5,000     48" X 72" - 3"h
M6600-4872-10K  10,000    48" X 72" - 3"h
M6600-4872-20K  20,000    48" X 72" - 4"h
M6600-4872-30K  30,000    48" X 72" - 5"h
M6600-4872-40K  40,000    48" X 72" - 5"h

M6600-4884-5K      5,000    48" X 84" - 3"h
M6600-4884-10K  10,000    48" X 84" - 4"h
M6600-4884-20K  20,000    48" X 84" - 4"h
M6600-4884-30K  30,000    48" X 84" - 5"h
M6600-4884-40K  40,000    48" X 84" - 5"h

M6600-4896-5K       5,000      48" X 96" - 4"h
M6600-4896-10K    10,000     48" X 96" - 4"h
M6600-4896-20K    20,000     48" X 96" - 4"h
M6600-4896-30K    30,000     48" X 96" - 5"h
M6600-4896-40K    40,000     48" X 96" - 5"h

M6600-48120-5K     5,000      48" X 120" - 4"h
M6600-48120-10K  10,000      48" X 120" - 4"h
M6600-48120-20K  20,000      48" X 120" - 5"h
M6600-48120-30K  30,000      48" X 120" - 5"h
M6600-48120-40K  40,000      48" X 120" - 5"h

M6600-6060-5K       5,000       60" X 60" - 3"h
M6600-6060-10K    10,000      60" X 60" - 3"h
M6600-6060-20K    20,000      60" X 60" - 4"h
M6600-6060-30K    30,000      60" X 60" - 5"h
M6600-6060-40K    40,000      60" X 60" - 5"h

M6600-6072-5K        5,000      60" X 72" - 3"h
M6600-6072-10K    10,000      60" X 72" - 4"h
M6600-6072-20K    20,000      60" X 72" - 4"h
M6600-6072-30K    30,000      60" X 72" - 5"h
M6600-6072-40K    40,000      60" X 72" - 5"h

M6600-6084-5K       5,000       60" X 84" - 4"h
M6600-6084-10K    10,000      60" X 84" - 4"h
M6600-6084-20K    20,000      60" X 84" - 4"h
M6600-6084-30K    30,000      60" X 84" - 5"h
M6600-6084-40K    40,000      60" X 84" - 5"h

M6600-6096-5K         5,000      60" X 96" - 4"h
M6600-6096-10K     10,000      60" X 96" - 4"h
M6600-6096-20K     20,000      60" X 96" - 5"h
M6600-6096-30K     30,000      60" X 96" - 5"h
M6600-6096-40K     40,000      60" X 96" - 5"h

M6600-7272-5K       5,000       72" X 72" - 4"h
M6600-7272-10K   10,000       72" X 72" - 4"h
M6600-7272-20K   20,000       72" X 72" - 4"h
M6600-7272-30K   30,000       72" X 72" - 5"h
M6600-7272-40K   40,000       72" X 72" - 5"h

M6600-7284-5K      5,000        72" X 84" - 4"h
M6600-7284-10K   10,000       72" X 84" - 4"h
M6600-7284-20K   20,000       72" X 84" - 4"h
M6600-7284-30K   30,000       72" X 84" - 5"h
M6600-7284-40K   40,000       72" X 84" - 5"h

M6600-7296-5K      5,000         72" X 96" - 4"h
M6600-7296-10K   10,000        72" X 96" - 4"h
M6600-7296-20K   20,000        72" X 96" - 5"h
M6600-7296-30K   30,000        72" X 96" - 5"h
M6600-7296-40K   40,000        72" X 96" - 5"h

M6600-72120-5K      5,000       72" X 120" - 4"h
M6600-72120-10K   10,000      72" X 120" - 4"h
M6600-72120-20K   20,000      72" X 120" - 5"h
M6600-72120-30K   30,000      72" X 120" - 5"h
M6600-72120-40K   40,000      72" X 120" - 5"h

M6600-84108-5K       5,000      84" X 108" - 4"h
M6600-84108-10K   10,000       84" X 108" - 4"h
M6600-84108-20K   20,000       84" X 108" - 5"h
M6600-84108-30K   30,000       84" X 108" - 5"h
M6600 84108-40K   40,000       84" X 108" - 5"h

M6600-84120-5K       5,000       84" X 120" - 4"h
M6600-84120-10K   10,000        84" X 120" - 4"h
M6600-84120-20K   20,000        84" X 120" - 5"h
M6600-84120-30K   30,000        84" X 120" - 5"h
M6600-84120-40K   40,000        84" X 120" - 5"h

M6600-96120-5K       5,000         96" X 120" - 4"h
M6600-96120-10K   10,000         96" X 120" - 4"h
M6600-96120-20K   20,000         96" X 120" - 5"h
M6600-96120-30K   30,000         96" X 120" - 5"h
M6600-96120-40K   40,000         96" X 120" - 5"h





Powder coat paint
Order a Pennsylvania 6600 scale w/ Digital Readout and it will come to you factory calibrated with digital indicator carefully packaged. Once you receive it -- plug 'n play!



Digital Readouts available for the 6600 Floor Scale

For Weighing and Counting applications, the value priced easy-to-use Pennsylvania Scale 7500+ and enhanced input 7600+ models are ideal: Factory calibrated with Quick Disconnects, they are ideal universal indicators that are as easy to use as they are accurate. Standard SS enclosure with U-bracket for shelf or wall-mounting. Standard RS-232 with programmable formatting. Weigh in 2 units (Lbs/Kgs) standard and suitable for Commercial Applications upto 10,000 counts.

For High Capacity weighing applications, Batching, and Truck Scales, choose the 7400+ (5-button front panel) and 7600E weight indicators: Optional setpoints with easily programmable sequencing, 2 independently programmable data outputs, optional Ethernet and Analog Output (0-10 VDC or 4- 20 mA) interfaces plus standard Truck In/Out program that has 300 Tare memories, you can't beat the 7600E for solid value and off the shelf flexibility for a wide range of environments and applications.

For Dual Base Counting and Weighing (SAMPLE-TO-BULK operation), you can't beat the package of our 7600DB Counting Scale precalibrated to any Pennsylvania Scale platform or base.





BEST DEAL: No better scale value than the Pennsylvania 6600 48 x 48" and Digital Indicator PACKAGE complete FOB Lancaster, PA or Terre Haute, IN

Ships skidded and pre-calibrated, ready for set-up-- plug and play right off the pallet!
Ideal heavy duty scale for shipping/receiving
Premium strain gauge load cells & adjustable leveling feet inside
20' cable to quick disconnect/digital indicator
Proven weigh indicator weighs in lbs/kgs
Buttons for ZERO, UNITS, SAMPLE SET, and PRINT
High accuracy counting and weighing
Standard RS-232 output with programmable data string
Choose 1000, 2000, 5000, or 10,000 lbs capacity (others available)

Compare construction, finish, Warranty, features, reputation, and long life design-- our 6600 Series outperforms the competition and provides least life cost and extended operation. The perfect blend of value and performance.

There are even zoo's that are using the tough 6600 platforms to weigh elephants!

zoo elephant weighing



Quality, Value, and Long Life for Rugged Industrial Applications

Whatever your requirement – pallet weighing - permanent or portable installations; on floor or in-pit; wet or dry; drop & weigh or drive-on, there’s a Pennsylvania 6600 scale to exceed your expectations. With thousands of satisfied users and free factory matching, the legal for trade 6600 has a reputation for heavy duty design, custom sizes, quality, value, and lowest life cost of any NTEP approved floor scale available. The 6600 scale is offered in painted steel. You can also get it in stainless steel. You can also order it with stainless steel load cells and hardware. We offer a wide variety of digital indicator or Pennsylvania counting scale choices to connect to the Pennsylvania 6600 scale.





Options include
LOADING RAMPS - with convenient knuckle saving hand holds, attachment brackets, and bolt-down tabs
ANCHOR PLATES - easily secure your platform to the floor in rough use applications
PIT FRAMES - used for easy installation in flush mount applications
STAINLESS STEEL LOAD CELLS - environment package for exposure to the elements; you can upgrade to Hermetically Sealed load cells for severe environments

Stainless Steel models at highly competitive pricing also available
Include Stainless Steel load cells and smooth plate (sand texture) top plates or optional Diamond Plate top surfaces, remote SS Summing boxes for mounting away from submersion and premium SS load cells, fasteners suitable for wet or washdown environments. Standard sizes and custom sizes.











Spare Parts / Accessories
49700-500  500 lb. 10' cable small envelope load cell for M6600, 500 lbs. capacity bases, 60" X 60" and smaller dimensions. Use with 1/2-20 leveling foot

49700-1  1,000 lb. 10' cable small envelope load cell for M6600, for 1,000 and 2,000 lbs. capacity base, 60" X 60" and smaller dimensions. Use with 1/2-20 leveling foot

49700-2   2,500 lb. 10' cable small envelope load cell for M6600, for 5,000 lbs. capacity base, 60" X 60" and smaller dimensions. Use with 1/2-20 leveling foot

49700-4   4,000 lb. 10' cable small envelope load cell for M6600, for 10,000 lbs. capacity base, 60" X 60" and smaller dimensions. Use with 1/2-20 leveling foot

49966-1   1,000 lb. 20' cable small envelope load cell for M6600, for 1,000 and 2,000 lbs. capacity base, for bases larger than 60" X 60".

49966-2   2,500 lb. 20' cable small envelope load cell for M6600, for 5,000 lbs. capacity base, for bases larger than 60" X 60". Use with 1/2-20 leveling foot

49966-4   4,000 lb. 20' cable small envelope load cell for M6600, for 10,000 lbs. capacity base, for bases larger than 60" X 60". Use with 1/2-20 leveling foot

49966-5SE   SPECIAL ORDER: 5,000 lbs., 20' cable small envelope load cell. For use with special configuration Pennsylvania Scale bases and other mfg. bases and tank mounts. Use with 1/2-20 leveling foot

49966-5LE  SPECIAL ORDER: 5,000 lbs., 20' cable large envelope load cell. For use with special configuration Pennsylvania Scale bases and other mfg. bases and tank mounts. Use with 3/4-16 leveling foot

49966-10   10,000 lbs., 20' cable large envelope load cell for M6600, for 20,000 lbs. capacity base. Use with 3/4-16 leveling foot

49966-20   20,000 lbs., 20' cable large envelope load cell for M6600, for 30,000 and 40,000 lbs. capacity base. Use with 1"-14 leveling foot

49988-1  Stainless steel 1,000 lb. 20' cable small envelope load cell for SS6600, for 1,000 and 2,000 lbs. capacity base. For use with 1/2-20 leveling foot

49988-2  Stainless steel 2,500 lb. 20' cable small envelope load cell for SS6600, for 5,000 lbs. capacity base, For use with 1/2-20 leveling foot

49988-4  Stainless steel 4,000 lb. 20' cable small envelope load cell for SS6600, for 10,000 lbs. capacity base, For use with 1/2-20 leveling foot

49988-10  Stainless steel 10,000 lbs., 20' cable large envelope load cell for SS6600, for 20,000 lbs. capacity base. Use with 3/4-16 leveling foot

49988-20  Stainless steel 20,000 lbs., 20' cable large envelope load cell for M6600, for 30,000 and 40,000 lbs. capacity base. Use with 1"-14 leveling foot

57651-1   Hermetically sealed, Stainless steel 1,000 lb. 20' cable small envelope load cell for SS6600, for 1,000 and 2,000 lbs. capacity base. For use with 1/2-20 leveling foot

57651-2   Hermetically sealed, Stainless steel 2,500 lb. 20' cable small envelope load cell for SS6600, for 5,000 lbs. capacity base, For use with 1/2-20 leveling foot

57651-4   Hermetically sealed, Stainless steel 4,000 lb. 20' cable small envelope load cell for SS6600, for 10,000 lbs. capacity base, For use with 1/2-20 leveling foot

49737-6  M6600, M6900, 1/2-20 UNF, Plated, 2" base diameter, 2-1/2” high. 1, 2, 5, and 10K up to 60" x 60"
49737-7  SS6600, SS6900, ½-20 UNF, SS, 2" base diameter, 2-1/2" high Floor Scales 1, 2, 5, 10K 60" x 60"
49737-30  Ball-foot, Leveling Foot Assembly, ½-20 UNF, 2" base diameter, 1/2"-20 UNF Threads Carbon Ball Foot w/SS slotted stud and wrench flats – fits 1, 2, 5, and 10K applications SESB load cells

49737-8  M6600 w/Forklift Option, ½-20 UNF, 2" base diameter, 3-3/4" high MS Floor Scales 1, 2, 5, and 10K
49737-9  SS6600 w/Forklift Option, ½-20 UNF, 2" base diameter, 3-3/4" high SS Floor Scales 1, 2, 5, and 10K
49737-18  M6600 (old style) ½-20 UNF, 3" base diameter, 2-7/8” high Replaces M6600 with 4" base
49737-2  M6600 20K, 3/4-16 UNF, 3" base, 3-1/4" overall height 20K applications 5K/10K LE load cells
49737-4  SS6600 20K, 3/4-16 UNF, 3" base, 3-1/4" height SS 20K applications 5K/10K LE load cells
49737-15  M6600 w/Forklift Option, 3/4-16 UNF, 4" base, 6” high 20K w/Forklift Option
49737-19  M6600 30/40K applications, 1-14 UNF, 5" base, 3-1/4" high 30K/40K scales with 1-14 UNF through hole at live end

49737-20  SS6600 30/40K applications, 1-14 UNF, 5" base, 3-1/4" high SS 30K/40K scales with 1-14 UNF through hole at live end

57115  4-cell Summing/Junction Board Excitation trim for use with M6300
56699-1  304 SS IP68 washdown summing card J-box for use with MS or SS 6600
56699-2  Plastic Molded IP68 summing card J-box for use with MS or SS 6600
48817-10E  10’ Extension Cable for load cell extension Quick disconnect connectors each end
48817-5  Standard 20’ Load Cell Cable ASSY for MS6600. Quick disconnect on indicator side and tinned leads on summing card side

48817-30  Standard 30’ Load Cell Cable ASSY for MS6600. Quick disconnect on indicator side and tinned leads on summing card side

48817-40  Standard 40’ Load Cell Cable ASSY for MS6600. Quick disconnect on indicator side and tinned leads on summing card side

48817-50  Standard 50’ Load Cell Cable ASSY for MS6600. Quick disconnect on indicator side and tinned leads on summing card side

57670  Upgrade Load Cells and Leveling Feet to Stainless Steel (1K, 2K, 5K, & 10K Capacities)
56690  Top Access Junction Box, Accessible Through Top Plate
49737-7  Upgrade to Stainless Steel Leveling Feet on Mild Steel Bases 1K, 2K, 5K, 10K

56699-1  SS NEMA 4X Summing Box, Used for Remote Summing Applications
56699-2  Plastic, Molded NEMA 4X Summing Box - Ordered as a Part. Includes Standard 57115 Card

56728-3  Base-Mounted Indicator Column, Flange Mates w/ All PA Indicators, 38" Nominal Height

57651-1  Hermetically Sealed 1K Load Cells in place of Standard Plated
57651-2  Hermetically Sealed 2.5K Load Cells in place of Standard Plated
57651-4  Hermetically Sealed 4K Load Cells in place of Standard Plated

57599-1  Pit Frame Fits 48" X 48", 1K, 2K, 5K, or 10K Capacity Bases For In-Floor Mounting
57599-2  48" X 60", 1K, 2K, 5K, or 10K Capacity Bases - 3" Nominal Depth, For In-Floor Mounting
57599-3  60" X 60", 1K, 2K, 5K, or 10K Capacity Bases - 3" Nominal Depth, For In-Floor Mounting
57599-4  36" X 36", 1K, 2K, 5K, or 10K Capacity Bases - 3" Nominal Depth, For In-Floor Mounting
57603-1  48" X 48" 20K Capacity Bases - 4" Nominal Depth, For In-Floor Mounting
57603-2  48" X 60" 20K Capacity - 4" Nominal Depth, For In-Floor Mounting, Completely Welded
57603-3  60" X 60" 20K Capacity Bases - 4" Nominal Depth For In-Floor Mounting
57603-4  60" X 72" 20K Capacity Bases - 4" Nominal Depth, For In-Floor Mounting

56764-3  Pit Spacers for 1K, 2K, 5K, 10K Capacity Bases - Set of (4) Pieces
56764-2  Pit Spacers for 20K Capacity Bases - Set of (4) Pieces
56764-4  Pit Spacers for 30K & 40K Capacity Bases - Set of (4) Pieces

59352-1  Set of (4) Plated Steel Base Anchors for up to 10K Bases (2-1/8" Fits 2" Diameter Foot)
59352-2  Set of (4) Plated Steel Base Anchors for 20K Bases (3-1/8" Fits 3" Diameter Foot)

56260-2  Bumper Guard, 36" X 3" - Safety Yellow Finish (Order Per Piece)
56260-3  Bumper Guard, 48" X 3" - Safety Yellow Finish (Order Per Piece)
59351-3  Bumper Guard, 48" X 4" (Fits 20K) - Safety Yellow Finish (Order Per Piece)
56260-4  Bumper Guard, 60" X 3" - Safety Yellow Finish (Order Per Piece)

R-49958-1   Ramp for Mild Steel 6600, 24" X 36" X 3", Up to 5K
R-49958-2   Ramp for Mild Steel 6600, 30" X 36" X 3", Up to 5K
R-49958-12 Ramp for Mild Steel 6600, 36" X 36" X 3", Up to 10K
R-49958-10 Ramp for Mild Steel 6600 48" X 36" X 3", Up to 10K
R-49958-4   Ramp for Mild Steel 6600 48" X 48" X 3", Up to 10K
R-49958-11 Ramp for Mild Steel 6600, 60" X 36" X 3", Up to 10K
R-49958-5   Ramp for Mild Steel 6600 60" X 48" X 3", Up to 10K
R-49958-3   Ramp for Mild Steel 6600, 72" X 36" X 3", Up to 10K
R-49958-13 Ramp for Mild Steel 6600, 48" X 48" X 4", Up to 20K
R-49958-14 Ramp for Mild Steel 6600, 60" X 48" X 4", Up to 20K
R-49958-15 Ramp for Mild Steel 6600, 72" X 48" X 4", Up to 20K
R-49958-7   Ramps for Mild Steel 6600, 84" X 48" X 4", Up to 20K
