Ravas-256X Explosion Proof Pallet Jack Scale

Ravas-256X Explosion Proof Pallet Jack Scale

The RAVAS 256X is an explosion-proof hand pallet jack scale that is FM-certified and features stainless steel fork shoes. It is built to withstand harsh conditions, including exposure to corrosive substances, extreme temperatures, and heavy loads. FM certified Class I, II, and III Division 1, Groups A-G, Temperature class T4, Ta = 104 F.

RFQ

Call: (919) 776-7737

RAVAS-256X Explosion Proof Hand Pallet Jack Scale


Explosion Proof
The RAVAS 256X is an explosion-proof hand pallet jack scale that is FM-certified and features stainless steel fork shoes. It is built to withstand harsh conditions, including exposure to corrosive substances, extreme temperatures, and heavy loads. FM certified Class I, II, and III Division 1, Groups A-G, Temperature class T4, Ta = 104 F.

Accurate
In addition to its specialized design for hazardous environments, the RAVAS-256X explosion-proof pallet jack scale measures weight while on the go and is suitable for various applications. It can weigh palletized goods, drums, and other containers, making it a perfect fit for warehouse, manufacturing, and distribution operations where speed and accuracy are essential.

Versatile
By combining the functions of a pallet jack and a scale, the RAVAS-256X streamlines material handling processes, saving time and labor. Operators can weigh loads directly as they are moved, eliminating the need for separate weighing steps and improving overall efficiency. Designed to meet production standards and regulations in the chemical and pharmaceutical industries, the RAVAS-256X mobile weighing system is ideal for filling, mixing, and dosing applications and can be easily cleaned.

Options
The RAVAS-256X is available in full stainless steel and an NTEP-certified Legal for Trade version. An optional rotating indicator with big push buttons that make working with gloves easier is available.

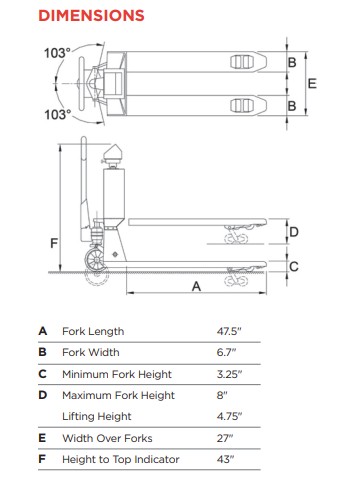

ravas 256x dimensions



Ravas 256X STANDARD SPECS

CAPACITY: 5000 LB
GRADUATIONS: 1 LB
TOLERANCE: 0.1% of the lifted load
DISPLAY: LCD 1.2" High Digits with backlite
PROTECTION: IP65 (Cells & Indicator IP67)
BATTERY LIFE: ~ 70 Hours
CHARGING TIME: ~ 6 Hours
STEERING WHEELS: Rubber, antistatic
LOADING WHEELS: Polyurethane, single
WEIGHT: 330 LB
COLOR: Epoxy coated Red
FM CERTIFICATION: Class I, II, III Division 1, Groups A-G
