Rice Lake ELS Series Elevated Load Cell Stands

Rice Lake ELS Series Elevated Load Cell Stands

The ELS Series was made to replace existing legs on a conveyor to convert it into a scale. The ELS Series is a low-cost, flexible solution for all conveyor weighing needs. Rice Lake ELS Series is constructed from powder-coated mild steel or stainless steel and is available in 250, 500 and 1,000 pound capacities.

RFQ

Call: (919) 776-7737

ELS Series Elevated Load Cell Stands

  • Adjustable height and width in 1-inch increments
  • Mild or stainless steel frame
  • Available in capacities of 250, 500 or 1000 lb (per stand)
  • Individual RL32018 load cell overload protection
  • Jack bolts in leveling feet for easy conveyor height alignment
  • Kit includes: two stands, RL32018 load cells, junction box, two adjustable stabilizing braces, leveling shims, and hardware



Options

  • Indicator stand – mild or stainless steel
  • Additional single ELS weigh stand
  • Additional stabilizing brace kit





Infinite Possibilities

Rice Lake Weighing Systems ELS Series elevated load cell stands are made to replace existing legs on a conveyor to convert it into a scale.

ELS Series weigh stands are a low-cost, flexible solution for all of your conveyor weighing needs. The weigh stands can be integrated into any pre-existing system to fit the exact height and width of your conveyor. This simplistic design is adaptable to a wide range of conveyor manufacturers.

Built Tough

Rice Lake's ELS Series weigh stands are made of powder-coated mild steel that is built strong and flexible to fit a variety of weighing needs. The 2-part ELS Series weigh stands are available in 250, 500 and a 1000 pound capacity.

Ease of Installation

The ELS Series is designed for its ease of installation and flexibility. The height and width are fully adjustable to fit your facility. With jack bolts and shims on the leveling feet, you can easily match your existing conveyor height.



conveyor scale for existing line

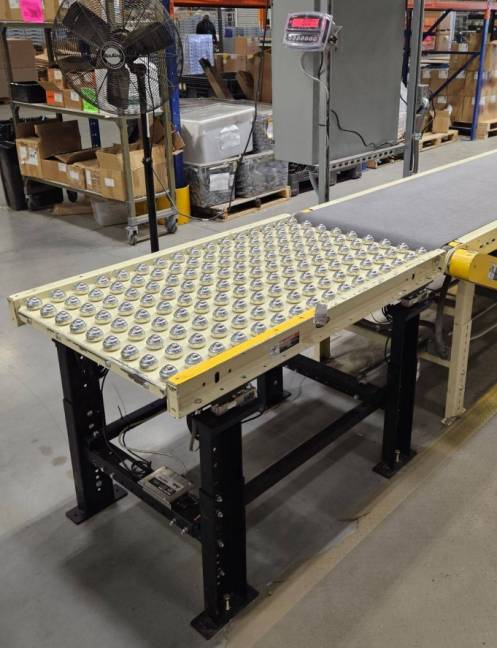

This is an example of a ELS-500 (212663) with a customer supplied balltop and a Cardinal 190 indicator.





ELS - 250 lb Capacity Mild Steel

212957  ELS-250 SCALE KIT, 23-28 INCH PROFILE, 37-54 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS, ADJUSTABLE FRAME TUBING & HARDWARE


212958  ELS-250 SCALE KIT, 29-36 INCH PROFILE, 37-54 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS, ADJUSTABLE FRAME TUBING & HARDWARE

212656  ELS-250 SCALE KIT, 29-36 INCH PROFILE, 18-24 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS, ADJUSTABLE FRAME TUBING & HARDWARE

212659  ELS-250 SCALE KIT, 23-28 INCH PROFILE, 25-36 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS, ADJUSTABLE FRAME TUBING & HARDWARE

212660  ELS-250 SCALE KIT, 29-36 INCH PROFILE, 25-36 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS, ADJUSTABLE FRAME TUBING & HARDWARE

ELS - 500 lb Capacity Mild Steel

212953  ELS-500 SCALE KIT, 23-28 INCH PROFILE, 37-54 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE

212954  ELS-500 SCALE KIT, 29-36 INCH PROFILE, 37-54 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE

212661  ELS-500 SCALE KIT, 23-28 INCH PROFILE, 18-24 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE

212662  ELS-500 SCALE KIT, 29-36 INCH PROFILE, 18-24 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE

212663  ELS-500 SCALE KIT, 23-28 INCH PROFILE, 25-36 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE

212665  ELS-500 SCALE KIT, 29-36 INCH PROFILE, 25-36 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE



ELS - 1,000 lb Capacity Mild Steel

212954  ELS-500 SCALE KIT, 29-36 INCH PROFILE, 37-54 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE

212666  ELS-1000 SCALE KIT, 23-28 INCH PROFILE, 18-24 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE

212667  ELS-1000 SCALE KIT, 29-36 INCH PROFILE, 18-24 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE

212669  ELS-1000 SCALE KIT, 29-36 INCH PROFILE, 25-36 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE

212670  ELS-1000 SCALE KIT, 29-36 INCH PROFILE, 25-36 INCH WIDTH, INCLUDES: 2 STAND ASSEMBLYS SHIMS,J-BOX, ADJUSTABLE FRAME TUBING & HARDWARE





Stainless Steel Also Available

213276  ELS-250 Kit, 23-28 in profile, 18-24 in width
213278  ELS-250 Kit, 29-36 in profile, 18-24 in width
213280  ELS-250 Kit, 23-28 in profile, 25-36 in width
213282  ELS-250 Kit, 29-36 in profile, 25-36 in width
213283  ELS-250 Kit, 23-28 in profile, 37-54 in width
213284  ELS-250 Kit, 29-36 in profile, 37-54 in width

213292  ELS-500 Kit, 23-28 in profile, 18-24 in width
213293  ELS-500 Kit, 29-36 in profile, 18-24 in width
213294  ELS-500 Kit, 23-28 in profile, 25-36 in width
213295  ELS-500 Kit, 29-36 in profile, 25-36 in width
213296  ELS-500 Kit, 23-28 in profile, 37-54 in width
213297  ELS-500 Kit, 29-36 in profile, 37-54 in width

213304  ELS-1000 Kit, 23-28 in profile, 18-24 in width
213305  ELS-1000 Kit, 29-36 in profile, 18-24 in width
213306  ELS-1000 Kit, 23-28 in profile, 25-36 in width
213307  ELS-1000 Kit, 29-36 in profile, 25-36 in width
213308  ELS-1000 Kit, 23-28 in profile, 37-54 in width
213309  ELS-1000 Kit, 29-36 in profile, 37-54 in width



NOTE: includes two stands, load cells, junction box, two adjustable stabilizing braces, leveling shims, & hardware
NOTE: Profile = Height (floor to top mounting plate measurement)





Options
Stainless Steel Construction

Digital Weight Indicator

Factory Calibration

19352   Floor Stand, Indicator Steel Painted (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

28740   Floor Stand, Indicator SST (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

Single ELS weigh stand

213229  Additional stabilizing brace kit mild steel

213316  Additional stabilizing brace kit stainless steel
