Rinstrum C520 Industrial Weight Controller

Name: Central Carolina Scale, Inc
Address: 5393 Farrell Road, Sanford, NC, 27330, US
Telephone: (919) 776-7737

C500 Series is Rinstrum's latest panel mounted industrial process controller equipped with modern interfaces and increased accuracy. The C500 Series is the culmination of 25 years of innovative weighing controller design, bringing together the best of the R400 and 5000 Series. The C520 has a high-contrast LED display and 6-button keypad.

Call: (919) 776-7737

Several models are available in the Rinstrum C500 Series. The C520 has a high-contrast LED display and 6-button keypad. The C523 is a C520 unit in an IP65 rated waterproof stainless-steel housing. The C530 is the same weighing electronics, din rail mounted with no display.

When panel mounted, the C520 uses a standard ½ DIN cut out and can generally be used as a direct drop-in replacement for the Rinstrum 5000. Ideal applications for the C500 Series include truck weighing, process control, OEM, and programmable solutions using the embedded Lua scripting engine.

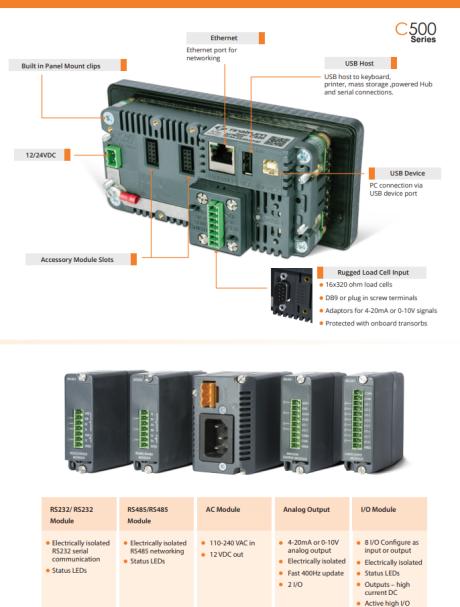

rinstrum c500 series panel mount DIN rail weight controllers

Smart Weighing - C530

Ideal for DIN rail mounting
Setup via the PC using Rinstrum C500 Viewer
rinLINK connector on the rear for quick temporary connection to the PC

Replacement Parts

780309 Overlay - C520
780381 C520 Front and Rear- Case with Screws and nuts
780312 C520/C522/C527 Display Board
780311 C520/C527 Processor and Rear board, K501 Activated
A11034 C520 DB9 Loadcell adapter

780382 C530 Front and Rear- Case with Screws and nuts
780310 C530 Processor and Rear board, K501 Activated
780385 C530 Loadcell Adapter
