Tufner TUF-LOADER Low Profile Vehicle Scale

Tufner TUF-LOADER Low Profile Vehicle Scale

Twin module steel deck scale. Steel diamond tread deck construction for tire grip. Low 6” profile and long ramps make for easy drive on and off. Indoor or outdoor usage, Perfect for container weighing. Ramps eliminate the need for a scale pit. Can be installed above ground or in-ground. Set up is simple and allows for easy relocation. Optional stoppers available (Please call for details)

RFQ

Call: (919) 776-7737

Tufner Tuf Loader Portable Axle Scales

FEATURES
● Extra large weighing surface
● Modular design allows customization with additional panels
● Low 6” profile and long ramps make it easy to drive on and off
● Steel diamond tread deck construction for tire grip
● Four premium watertight alloy steel load cells with overload protection
● Set up is simple and allows for easy relocation
● Can be installed above ground with ramps or in-ground as a pit scale
● For indoor or outdoor use
● Perfect for container weighing
● Durable powder coat finish

INCLUDES
● Platforms
● 2 ramps (for above ground)
● Heavy duty metal cable with waterproof protective outer coating
● 2 side-rails (can be removed for pit installations)

OPTIONS/ACCESSORIES
● Stoppers
● 10ft approaches per NTEP requirement
● Data logging software
● Label/Table printer
● Indicator stand
● Scoreboard

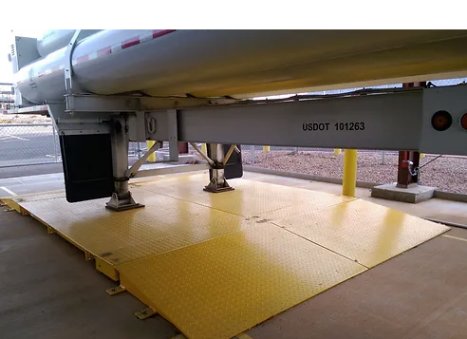

tufner tuf load axle weight scales

PART# .......... CAPACITY  ..... PLATFORM .... RAMPS ...... OVERALL DIMENSIONS
TL-61010        60,000 lb x 10 lb   10’ x 10’     10’ x 40”    118” W x 198” L x 5.75” H
TL-61015        60,000 lb x 10 lb   10’ x 15’     10’ x 40”    118” W x 258” L x 5.75” H
TL-1201020   120,000 lb x 10 lb   10’ x 20’     10’ x 40”    118” W x 316” L x 5.75” H
TL-1201025   150,000 lb x 10 lb   10’ x 25’     10’ x 40”    118” W x 380” L x 5.75” H
TL-1501030   150,000 lb x 10 lb   10’ x 30’     10’ x 40”    118” W x 434” L x 5.75” H
