Avery Weigh-Tronix JBIT Stainless Steel Junction Box

Avery Weigh-Tronix JBIT Stainless Steel Junction Box

JBIT is a stainless steel NEMA 4X Junction Box from Avery Weigh-Tronix with either (4) or (6) internal weight sensor connections. It is available with dead load zero adjustment and each input has an adjustable precision span resistor for individual signal trimming.

RFQ

Call: (919) 776-7737

Share on Facebook

JBIT - Junction Box Internal Termination

The JBIT is a stainless steel NEMA 4X junction box with four or six internal weight sensor connections available from Central Carolina Scale located in Sanford, North Carolina. It is available with dead load zero adjustment and each input has an adjustable precision span resistor for individual signal trimming. The overall height is 2.1" and the interface cable strain relief supports a .23" - .39" diameter cable. Both the four and six version weight sensor strain reliefs support a cable diameter from 0.19" to 0.36". Surge voltage protection is included.

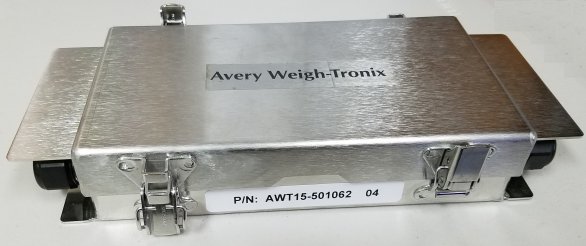

avery weigh-tronix jbit junction box and summing board



PART # ................. DESCRIPTION
50063-0074             4-Weigh Bar®, w/ zero adjust, side-mount tabs
AWT15-501062       4-Weigh Bar, w/ summing & end-mount tabs
55911-0077             6-load cell, w/ zero adjust, side-mount tabs
AWT15-501064       6-load cell, summing & end-mount tabs
