Designed for weight monitoring, data collection, and cloud-based data storage, the Avery Weigh-Tronix ZM223 Weight Indicator enables control and visibility of processes, from dusty warehouses to food-safe production lines. Housed in a durable IP69K stainless steel enclosure with a large display, the ZM223, available from Central Carolina Scale, an authorized Avery Weigh Tronix dealer, is ideal for applications where clarity, speed, and durability are critical.
The ZM-223 comes standard with multiple configurable smart applications that allow for easy integration and meet customization needs depending on installation requirements. Efficiently transfer data using secure cloud connections, view or control the indicator using any networked PC, or pair with the Avery Weigh-Tronix Remote Assist Mobile Application to control and monitor the indicator using a mobile device. Versatility at your fingertips.
The factory is already phasing out the ZM301, ZM303, and ZQ375 desktop versions. With the successful introduction of the ZM223, we all expect this model 223 will act as the replacement as well as grow in popularity in the market.

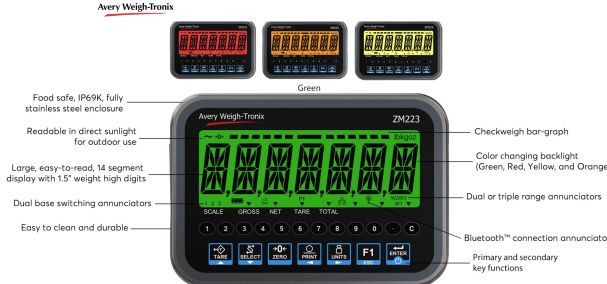

Large, color-changing backlit display
The ZM223 comes with a 7-digit, 1.5″ (35mm) HTN LCD display with color-changing backlight options (green, yellow, orange, red) providing excellent indoor and outdoor readability with enhanced viewing angles. When check weighing, the user will be fully supported as the backlight colors give clearer and faster visual prompts, allowing the operator to carry out tasks more efficiently. Under/Over barographs are also used to give visual references back to the operator to indicate when a weight is getting close to an accept window or target point.
Unparalleled Personalization
With a library of preloaded applications – including general weighing, check weighing, batching, grading, inventory control, truck scale in/out, and more, the ZM 223 is ready to be easily integrated, right out of the box. The indicator connects to a wide variety of platforms, supporting both analog and digital scale inputs, and offers powerful features like peak hold and fill-and-discharge modes.
Its large, easy-to-read color-changing backlight display (green, red, yellow, orange) and wide-viewing angles, ensure instant visual status recognition in all types of environments, ensuring safety and precision during each use. Customize print formatting to create the exact information needed for an application. Connect to the Remote Assist Mobile Application and control personalization directly from a mobile device.
Cloud Based Data Collection
The ZM223 can now easily connect directly to any cloud data base server using secure HTTPS or MQTT connections, making it ideal when data needs to be safely controlled centrally from a specific cloud server. It is fully Lua programmable, providing a flexible platform to control and monitor processes from anywhere.
Remote Assist Mobile App
The ZM223 comes standard with a built-in Bluetooth® communication port which integrates seamlessly with the Avery Weigh-Tronix Remote Assist™ Mobile App, enabling remote control of the indicator. Remote Assist™ allows the operator to easily monitor details and control the indicator all from a distance. An operator can enter additional data into the mobile app that standard indicators cannot handle. This is ideal when printing customer names and addresses, invoice numbers, batch numbers, and other valuable data that may be required on the print ticket or label.
Built for busy manufacturing and processing environments, the ZM223 delivers unmatched performance. With a durable IP69K stainless steel enclosure and large color-changing display, it can handle everything from dusty warehouses to hygienic food production facilities.
Easily pair the ZM223 with other Avery Weigh-Tronix equipment and continue processes with limited interruption. Whether weighing, tracking, or automating, the ZM223 adapts to your process – increasing control, flexibility, and smarter operations. NTEP Legal-for-Trade CoC# 24-075 Class III/IIIL 10,000 Divisions, AM-6261C
Part Number ......... Description
AWT05-101000 ZM223 Desktop Indicator Stainless Steel, IP69K
Also available with bench scale bases and with a floor scale (part number below).
AWT05-101105 ZM223 DSL 4848 5K 5,000 x 1 lb 48 x 48
ZM223 Series Options
Option cards
AWT05-101259 ZM223 Analog output (4-20m4, 0-10V, 0-5V)
AWT05-508053 Severe Transient Voltage Suppressor (STVS) Extreme Lightning protection
AWT05-101260 Severe Transient Voltage Suppressor (STVS) lightening protection + Comms protection
Gland Accessory
AWT05-505850 Gland, USB watertight (IP66 and IP69k models)
AWT05-505851 Gland, Ethernet watertight (IP66 and IP69K models)
I/O Options
AWT05-509264 Z series option enclosure only - IP69K (Replaces ZM-OPTO/SSCU-8 enclosure)
AWT05-506036 ZM-OPTO Board Only (3 Input/3 Output)
Relay Options
AWT25-502031 G4IDC5D 2.5 to 28 DC volt input module
AWT25-502033 G4IDC5 10 to 32 AC/DC volt input module
AWT25-502035 G4IAC5 90 to 140 AC/DC volt input
AWT25-502037 G4ODC5 5 to 60 DC volt output module
AWT25-502040 G4OAC5A 120/240 VAC output module
AWT25-502042 G4ODC5R .5amp, SPST normally open dry contact relay
Ind Accessories
AWT05-509147 Wired barcode scanner (USB & RS232)
AWT05-509148 Wireless controlled scanner with charger/communication cradle (USB & RS232)
AWT05-508943 IP67 Lightstack (red, green, yellow) + audible alarm (ZM/ZQ indicators)
Agency sealing kits AWT05-508170 Agency sealing kit ZM/ZQ
Power & power lead options
AWT05-101207 UK power cord only
AWT05-101208 EU power cord
Columns & Brackets
AWT05-509256 ZM & ZQ indicator to QC3265 column conversion bracket kit
AWT20-505480 ZM & ZQ stainless steel wall/desk stand
AWT05-800074 Torsion to ZM2/3/4 Stainless steel column kit 15" high
AWT05-506285 Diamond 20” x 20” Stainless Steel 35" High Column mounting kit ZM2/3/4
AWT05-506286 Diamond 24” x 24” Stainless Steel 35" High Column mounting kit ZM2/3/4
AWT05-508309 Diamond 20” x 20” Stainless Steel 23" High Column mounting kit ZM2/3/4
AWT05-508310 Diamond 24” x 24” Stainless Steel 23" High Column mounting kit ZM2/3/4
Cables
AWT25-500922 Cable Assembly, RS232, DB9-Female to flying leads, 5 FT, +5V on Pin 4
AWT25-500678 Cable Assembly, RS232, DB9-Female to flying leads, 5FT
AWT25-500295 Cable Assembly, RS232, DB9-Female, to flying leads, 10FT
AWT25-501983 BSQ base to ZM/ZK indicator cable RS232 (keyed RJ45 to stripped ends) 10' long
AWT25-502071 BSQ base to ZM/ZK indicator cable RS232 (keyed RJ45 to stripped ends) 25' long
AWT25-502072 BSQ to 2nd base to ZM/ZK indicator cable RS232 (keyed RJ45 to stripped ends) 50' long
