- Capacities ranging from 1,000 lb to 75,000 lb
- Designed for demanding wash-down or corrosive environments
- Hermetically sealed loadcell rated to IP68 standards
- High Accuracy Legal for-Trade Weighing System
- NTEP Certified – Certificate Number 17-114
- Technician-friendly with easy installation features

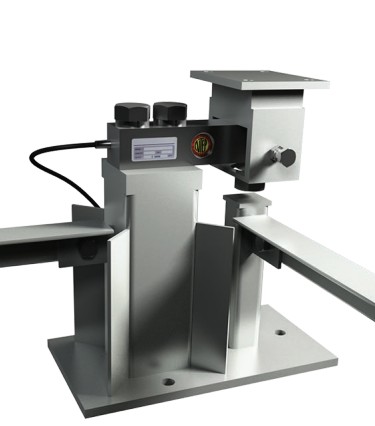

X-Mount system is ideal for use with fertilizer blenders and grain silos. Handles the precision and durability demands of challenging chemical environments. Built to withstand vibrations and loads from blending, mixing, and other high vibration activities.
- Load Introduction via a rocker pin assembly, which acts directly on the neutral zone of the load cell.
- Side, end, and torsion load effects are eliminated.
- 100% uplift protection.
- Adjustable side-to-side checking.
- Exclusive threaded height adjustment for perfectly balanced loads.
- Constructed of 304 stainless steel.
- Customized height of X-mount to eliminate need for riser blocks.
- Customized length and width to fit specific tank and hopper leg requirements.
The X-Mount System can be configured with several models to suit the capacity required for the application.
Model System Capacity (lbs) Load Cell Capacity (lbs) Number of Cells
XM-0201-4S 2000 1000 4
XM-0525-4S 5000 2500 4
XM-0804-4S 8000 4000 4
XM-1005-4S 10000 5000 4
XM-2010-4S 20000 10000 4
XM-3015-4S 30000 15000 4
XM-4020-4S 40000 20000 4
XM-7525-4S 75000 25000 4
3 leg versions available on request
NTEP is only approved up to 62,500 lb
Choose a Standard System or Custom Built Design
The X-Mount system is a legal-for-trade tank weighing system for commercial Legal For Trade applications.
X-Mount systems are designed as retrofit weighing systems for fertilizer blenders or in industrial, pharmaceutical, or chemical applications. X-Mount systems are each customized to suit your exact size requirements to fit under existing or newly installed tank, hopper, or weigh vessels. Send us the hopper length, width and height of the load cell stands. We can quote a custom fabrication of a full stainless-steel bolt in replacement weighing system made to your exact dimensions.
