CAS EC Series AC/Battery Counting Scale

CAS EC Series AC/Battery Counting Scale

Designed with CAS reliability, the EC Series Counting Scale stands alone its field. High accuracy and simple to use. Optional label or receipt printer. Great for use in manufacturing, parts shops, hardware stores, etc. Capacities available include 6 lb, 15 lb, 30 lb or 60 lb.

RFQ

Call: (919) 776-7737

Share on Facebook
Designed with CAS reliability, the EC Series Counting Scale stands alone its field. High accuracy and simple to use are trademarks of the CAS Corporation model EC series digital parts counting scales that are available from Central Carolina Scale. Estimated battery life 80 hrs continuous use w/ 12 hr recharge time. Optional label or receipt printer is available. Great for use in manufacturing, parts shops, hardware stores, etc. For more specific details, please see the CAS EC Counting Scale Data Sheet (pdf file)



CAS EC Series Specifications

6, 15, 30, and 60 lb capacities available
100 Unit Weight Measurement w/ Preset Tare
High Internal Resolution (1/600,000)
Easy to read LCD with Blue Backlight
Rechargeable battery and/or AC
Weight Comparison & Calibration Functions
Accumulation Function
RS-232C Interface
Soft Touch Tact Keyboard

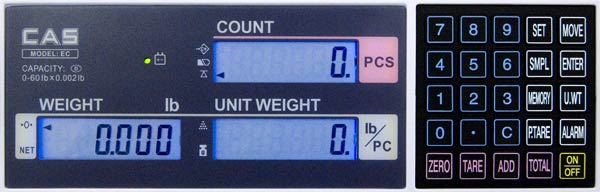

cas ec scale keypad



Model
Capacity x Readability (g)
Capacity x Readability (lb)
Platform Dimensions
EC-6
3000 x 0.1 g
6 x 0.0002 lbs
12" (W) x 8.7" (D)
EC-15
6000 x 0.2 g
15 x 0.0005 lbs
EC-30
15,000 x 0.5 g
30 x 0.001 lbs
EC-60
30,000 x 1 g
60 x 0.002 lbs




Options
DLP-50 Label Printer
DEP-50 Receipt Printer
Dust Cover





























EC Parts
Object   PART DESCRIPTION   PART No.   Location
Display DISPLAY COVER (6lb) DEC1 DEC1
DISPLAY COVER (15lb) DEC2 DEC2
DISPLAY COVER (30lb) DEC3 DEC3
DISPLAY COVER (60lb) DEC4 DEC4
Key FULL BODY PROTECTIVE COVER (WETCOVER) KS21 KS21
KEY BOARD ASSY KEC1 KEC1
RUBBER KEYPAD (EC) KEC2 KEC2
L/C LOAD CELL (15lb/6kg) LEC2 LEC2
LOAD CELL (30lb/15kg) LEC3 LEC3
LOAD CELL (60lb/30kg) LEC4 LEC4
LOAD CELL (6lb/2.5kg) LEC1 LEC1
PCB DISPLAY PCB ASSY PEC3 PEC3
MAIN PCB PEC1 PEC1
RS-232 BOARD PEC2 PEC2
Power AC ADAPTER YEC1 YEC1
BATTERY (6V/5Ah) ZEC1 ZEC1
Tray PLATTER TEC1 TEC1
PLATTER (PLASTIC) TEC2 TEC2
VFD LCD TUBE VEC1 VEC1
