cas s2000jr commercial price computing scale

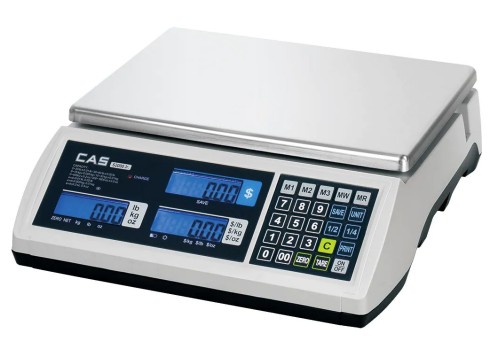

CAS S2000 JR NTEP Price Computing Scales

CAS S-2000JR is a digital price computing scale for direct sale of commodities in stores such as supermarkets, delicatessens and groceries. The S2000 Jr. is available in several different dual range capacities of 15, 30, or 60 pounds. Also weighs in ounces and can easily add a label printer.

RFQ

Call: (919) 776-7737

Share on Facebook

CAS S-2000JR is a general purpose price computing scale for direct sale of commodities in stores such as: supermarkets, delicatessens and groceries. The S2000JR has proven to be a top of the line fully featured retail price computing scale from Central Carolina Scale. The Model S2000 Jr. portable price computing scale is available in several different configurations, they include dual range capacities for better accuracy.

With the built in rechargeable battery, you can easily use the scale indoors or take it to the farmers market or produce stand. S2000JR features display on both operator and customer side and is NTEP approved legal for trade. Connect the CAS s2000jr with the optional label printer for a complete weighing system. NTEP Approved 06-013 Legal for Buying & Selling. Learn more by taking a look at the S2000 Junior brochure (pdf file)



S2000 JR Scale Features

- LCD Display with backlight
- Choice of Low Profile Bench Scale OR Pole Display Scale
- Weighing Units: lbs, kg, oz
- Dual Range Capacities for Overall Better Accuracy
- Ounces work great for frozen yogurt shop
- Soft Touch tact switch with silicon rubber kepad
- 3 Direct PLU's -- 197 Indirect PLU's on Bench Model
- 36 Direct PLU's -- 164 Indirect PLU's on Pole Model
- RS-232C Interface ideal for CAS label or receipt printer
- AC Power AND built in Rechargeable Battery





In order to purchase a S-2000Jr -- the choices you need to make are:

Do I want a Pole Display?
Pole display which faces both operator & consumer is available for either VFD or LCD models



What maximum weight am I going to be weighing?
Max capacities include 15 lb, 30 lb or 60 lb.




 LCD PoleLCD





CAS S-2000JR Specifications

Tare Range:  Full Capacity by Subtraction
Display Digits: 5 / 6 / 6 (Weight / Unit Price / Total Price)
Display Type: LCD (Liquid Crystal) with backlight on front & back of scale or tower
Display Designators: Zero, Net, kg, lb, oz, battery, backlight, save
Power Source:  12V DC Adapter Rechargeable Battery (6V, 3.6 Ah)
Battery Life:  Approx 200 hrs LCD w/o backlight on
Charging Time: 12 hrs
Platter Size:  12" x 8.75"
Dimensions (inches) Standard: 13 (W) x 13.6 (D) x 4.2 (H)  Pole: 13 (W) x 15.2 (D) x 16.2 (H)
Temperature: 14 - 104 F
Product Weight: Bench Model: 10 lbs / Pole Model: 12 lbs



Key S 2000 Jr Features:

  • 15 lb, 30 lb, and 60 lb capacities
  • Dual Range
  • Pole or Standard Models
  • Bench Model: 3 Direct PLU's and 197 Indirect PLU's
  • Pole Model: 36 Direct PLU's and 164 Indirect PLU's
  • Soft touch silicon rubber keypad
  • Easy to read LCD Display with backlight
  • Stainless Steel Platter
  • Kg/lb/oz Switchable
  • 1/2 lb and 1/4 lb keys
  • Rechargeable Battery 6v 3.6ah
  • Legal for Trade







Description / Part Number
 Capacity x Readability

LCD Without Pole (AC/Batt pwr)

 S2JR15L
 0~6 x 0.002 lbs / 6~15 x 0.005 lbs
0~80 x 0.05 oz / 80~160 x 0.1 oz
 S2JR30L
0~15 x 0.005 lbs / 15~30 x 0.01 lbs
0~200 x 0.1 oz / 200~400 x 0.2 oz
 S2JR60L
 0~30 x 0.01 lbs / 30~60 x 0.02 lbs
0~400 x 0.2 oz / 400~1000 x 0.5 oz

LCD With Pole (AC/Batt pwr)

 S2JR15LP
0~6 x 0.002 lbs / 6~15 x 0.005 lbs
0~80 x 0.05 oz / 80~160 x 0.1 oz
 S2JR30LP
0~15 x 0.005 lbs / 15~30 x 0.01 lbs
0~200 x 0.1 oz / 200~400 x 0.2 oz
 S2JR60LP
 0~30 x 0.01 lbs / 30~60 x 0.02 lbs
0~400 x 0.2 oz / 400~1000 x 0.5 oz



Popular Options
DT2X Label Printer
DLP-50 Label Printer
LST-8000B Labels for DTX
LST-8060 Labels for DLP-50



Other Options
Fish Platter for S2000 JR
Produce Platter for S2000 JR
Hard Shell Carry Case for Standard scale w/o pole (30 lb & 60 lb cap only)
DEP-50 Receipt Printer
RCP-2 Receipt Paper





CAS S2000JR PRICE COMPUTING SCALE WITH EASY TO READ LCD

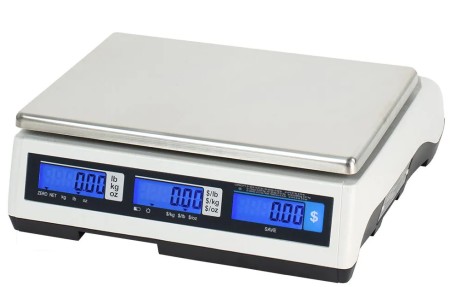

The CAS S2000 Jr price computing scale is a full featured legal for trade computing scale, available in three capacities. It's easy to read dual displays allow the operator and customer to view price per pound, price per kilogram, price per ounce, total price, weight, and unit price. The optional label printer and switchable weighing options make the S2000 Jr the ideal choice for use in retail stores, farmer's markets, and candy stores. The S2000 Jr comes with a rechargeable battery capable of powering the scale for up to 200 hours in locations where AC power is not available.

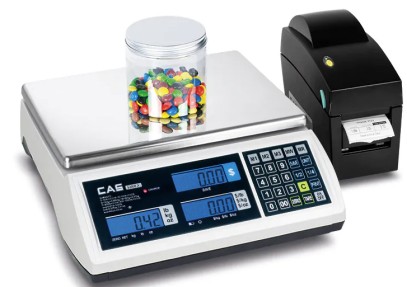

Adding a Whole New Level of Convenience to Weighing Needs, the DT2X Printer is the Perfect Companion to the S2000JR

With lightning fast printing capabilities, you can effortlessly generate high quality labels with all the necessary information you need. The DT2X is designed to withstand the demands of a busy retail environment, ensuring uninterrupted performance and longevity.

DT2X Direct Thermal Label Printer Key Features:

  • Compact & Cost Efficient
  • USB, Serial, & Ethernet Connections*
  • 16MB SDRAM & 4MB Flash Memory
  • Print speed: Up to 7"/177 mm per second
  • Ideal for Retail, Shipping, & Healthcare Applications

    * Please note the S2000 Jr uses the RS-232 Serial port to communicate with the DT2X



Choose from one of four available formats:

Weight, Unit Price, & Total Price plus Header: “Thank You” & Footer: “Have a Nice Day!
Weight, Unit Price, & Total Price plus Custom Header/Footer
Weight, Unit Price, & Total Price plus Time/Date and Custom Header/Footer
Weight, Unit Price, & Total Price plus Time/Date and/or Tare, Custom Header/Footer



*The label format will be loaded to the Godex DT2X and tested prior to shipping.







Old P/N for reference only
S2JR15V
S2JR30V
S2JR60V
S2JR15VP
S2JR30VP
S2JR60VP

































S2000JR Replacement Parts
Object   PART DESCRIPTION    PART No.   Location
Body DISPLAY BRACKET BS21 BS21
SCALE BODY FOR S2000JR BS22 BS22
Display DISPLAY POLE ASSY (LCD) DS2F DS2F
DISPLAY POLE ASSY (VFD) DS2G DS2G
FRONT DISPLAY COVER (15lb LCD) DS24 DS24
FRONT DISPLAY COVER (15lb VFD) DS21 DS21
FRONT DISPLAY COVER (30lb LCD) DS25 DS25
FRONT DISPLAY COVER (30lb VFD) DS22 DS22
FRONT DISPLAY COVER (60lb LCD) DS26 DS26
FRONT DISPLAY COVER (60lb VFD) DS23 DS23
FRONT DISPLAY COVER (POLE MODEL ALL CAPA.) DS27 DS27
REAR DISPLAY COVER (15lb LCD) DS2B DS2B
REAR DISPLAY COVER (15lb VFD) DS28 DS28
REAR DISPLAY COVER (30lb LCD) DS2C DS2C
REAR DISPLAY COVER (30lb VFD) DS29 DS29
REAR DISPLAY COVER (60lb LCD) DS2D DS2D
REAR DISPLAY COVER (60lb VFD) DS2A DS2A
REAR DISPLAY COVER (POLE MODEL ALL CAPA.) DS2E DS2E
Key FULL BODY PROTECTIVE COVER (WETCOVER) KS21 KS21
KEY SWITCH (EACH) 7744-A00-1212 KPW1
KEYPAD BRACKET KS23 KS23
RUBBER KEYPAD (S2000JR) KS22 KS22
L/C LOAD CELL (15lb/6kg) LS21 LS21
LOAD CELL (30lb/15kg) LS22 LS22
LOAD CELL (60lb/30/kg) LS23 LS23
Manual , OWNERS MANUAL MS21 MS21
PRINTER SOFTWARE (ONLY FOR DEALERS) MS23 MS23
SERVICE MANUAL (CD ONLY) MS22 MS22
Packing INNER BOX (POLE) US22 US22
INNER BOX (STD) US21 US21
STYROFOAM BOX - L (POLE) US25 US25
STYROFOAM BOX - L (STD) US23 US23
STYROFOAM BOX - R (POLE) US26 US26
STYROFOAM BOX - R (STD) US24 US24
PCB ANALOG PCB PS27 PS27
DISPLAY PCB ASSY (VFD POLE) PS26 PS26
FRONT DISPLAY PCB ASSY (LCD POLE) PS25 PS25
FRONT DISPLAY PCB ASSY (LCD) PS24 PS24
FRONT DISPLAY PCB ASSY (VFD) PS29 PS29
KEYBOARD ASSY PS23 PS23
MAIN PCB ASSY (LCD) PS21 PS21
MAIN PCB ASS'Y (S2JR LCD) PS2D PS2D
MAIN PCB ASSY (VFD) PS22 PS22
REAR DISPLAY PCB ASSY (LCD) PS2B PS2B
REAR DISPLAY PCB ASSY (VFD) PS2A PS2A
PCB RS232 PCB ASSY PS28 PS28
VFD MODULE PS2C PS2C
Power A/C ADAPTER 12V/1.25A YEB1 YEB1
A/C ADAPTOR FOR DLP/DEP PRINTER ZS24 ZS24
A/C CORD XS21 XS21
BATTERY (6 V 3.3AH/ 20HR) LARGE ZS21 ZS21
BATTERY (6V. 3.3AH/ 20HR)S2JR08/10 PRO. SMALL ZS25 ZS25
BATTERY COVER ZS22 ZS22
POWER TRANSFORMER ZS23 ZS23
Remocon PAPER ROLL FOR DLP PRINTER ( 12pcs/box) RTC1 RTC1
Screw RUBBER FEET ADJUST BOLTS FOR TP-1,TC1,SJR (EOT11 OT11
TAPPING SCREW (CASE) OS21 OS22
TAPPING SCREW (MAIN PCB) OS21 OS21
Sealing CAL PLATE SS21 SS21
SEALING BOLT SS22 SS22
Tray FISH PAN PLATTER TS22 TS22
PLATFORM CUSHIONS (EACH) TS24 TS24
PRODUCE PLATTER TS23 TS23
STANDARD PLATTER TS21 TS21
VFD F.I.P. DISPLAY TUBE (12 DIGIT) NEW SAMSUNG VL15 VL15
F.I.P. DISPLAY TUBE (7 DIGIT) NEW SAMSUNG VL14 VL14
LCD DISPLAY VS21 VS21
Wire CABLE ( ANALOG PCB TO MAIN PCB) WS23 WS23
CABLE ( PC TO SCALE ) 9 PIN MALE TO FEMALE WS22 WS22
CABLE (SCALE TO PRINTER) 9 PIN FEMALE TO FEMWS21 WS21
POWER CABLE 110 PLUG (DLP-50) WS24 WS24
