Cambridge 660-COIL Series Concentrated Load Scale

Heavy duty scale for weighing Steel Coils, Aluminum Coils, Copper Coils, Cable Spools, Billets, Charge Weighing, Castings, Steel Scrap, etc... 10,000 Through 60,000 LB capacities, Cross strutted structural tubular steel construction, 1/2 inch thick smooth carbon steel deck plate, four internally mounted, IP 67 rated water resistant load cells. Some models are NTEP.

RFQ

Call: (919) 776-7737

Share on Facebook

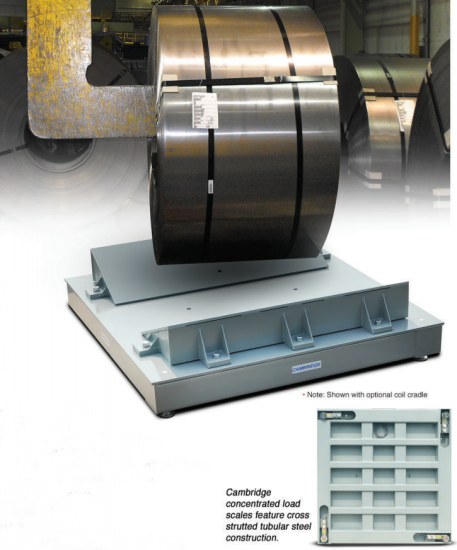

Cambridge manufactures this heavy duty industrial platform scale that is ideal for weighing things like coils of metal. Several sizes and capacities are NTEP legal for trade. The coil cradle that you see in the pictures bolted on top of the weighing platform is an option that is available and recommended for weighing large rolls.



660-COIL Scale Applications

• Steel Coils
• Aluminum Coils
• Copper Coils
• Cable Spools
• Billets
• Charge Weighing
• Castings
• Steel Scrap



STANDARD FEATURES
• 10,000 Through 60,000 Lb capacities
• Cross strutted structural tubular steel construction.
• 1/2 inch thick smooth carbon steel deck plate.
• Four internally mounted, IP 67 rated water resistant load cells.
• Self checking captive ball leveling feet.
• Polycarbonate NEMA 4x junction box.
• High strength grade 5 hardware.
• Top access to load cells and junction box.
• Durable urethane enamel paint.
• 25 foot heavy duty, high visibility, shielded indicator cable.
• Eye bolt holes for easy setup and moving.



ACCESSORIES
• Bumper guards
• Coil cradle
• 48" indicator column (Freestanding)
• Locator brackets



steel coil weigh scale

MODEL 660-COIL SERIES CONCENTRATED LOAD SCALES SIZES & CAPACITIES


SIZES AND CAPACITIES IN RED DENOTE "NTEP" APPROVED C.O.C. 96-157A1

SIZE
CAPACITY
LOAD CELLS
QUANTITY & CAPACITY
APPROX. SHIP WT
48” X 48” X 6”
10,000 Lb.
4 X 5,000 Lb. Each
725 Lb.
48” X 48” X 6”
20,000 Lb.
4 X 10,000 Lb. Each
795 Lb.
48” X 48” X 7”
40,000 Lb.
4 X 15,000 Lb. Each
1000 Lb.

48” X 72” X 6”
10,000 Lb.
4 X 5,000 Lb. Each
955 Lb.
48” X 72” X 6”
20,000 Lb.
4 X 10,000 Lb. Each
1,290 Lb.
48” X 72” X 7”
40,000 Lb.
4 X 15,000 Lb. Each
1,530 Lb.

60” X 60” X 6”
10,000 Lb.
4 X 5,000 Lb. Each
1,106 Lb.
60” X 60” X 6”
20,000 Lb.
4 X 10,000 Lb. Each
1,254 Lb.
60” X 60” X 7”
40,000 Lb.
4 X 15,000 Lb. Each
1,600 Lb.
60” X 60” X 8”
60,000 Lb.
4 X 20,000 Lb. Each
1,750 Lb.

60” X 84” X 6”
20,000 Lb.
4 X 10,000 Lb. Each
2,098 Lb.
60” X 84” X 7”
40,000 Lb.
4 X 15,000 Lb. Each
2,150 Lb.
60” X 84” X 8”
60,000 Lb.
4 X 20,000 Lb. Each
2,400 Lb.

72” X 72” X 6”
20,000 Lb.
4 X 10,000 Lb. Each
2,020 Lb.
72” X 72” X 7”
40,000 Lb.
4 X 15,000 Lb. Each
2,200 Lb.
72” X 72” X 8”
60,000 Lb.
4 X 20,000 Lb. Each
2,500 Lb.

72” X 96” X 6”
20,000 Lb.
4 X 10,000 Lb. Each
2,550 Lb.
72” X 96” X 7”
40,000 Lb.
4 X 15,000 Lb. Each
2,700 Lb.
72” X 96” X 8”
60,000 Lb.
4 X 20,000 Lb. Each
3,100 Lb.
