Pennsylvania Scale Conveyor / RollerTop Scales & Stands

Pennsylvania Scale Conveyor / RollerTop Scales & Stands

Roller Conveyor Deck Option for Pennsylvania 7300 or 6400 scales. Easily Integrate into and existing conveyor for increased throughput and accuracy. High Strength Aluminum Construction reduces "Dead Weight" for increased counting or weighing accuracy and performance. Low profile 2.75" high design with 1.5" Rollers available in 1.5" and 3" center to center spacing. Rollers are easily replaced in the field.

RFQ

Call: (919) 776-7737

Share on Facebook

The items on this page are great accessories to add to a Pennsylvania Scale bench scale. We have rollertop platters that can be used on the 7300 shipping scale along with larger rollertop platters that can be used with the 6400 scale platforms. We can also add an adjustable scale base stand for the 6400 model.

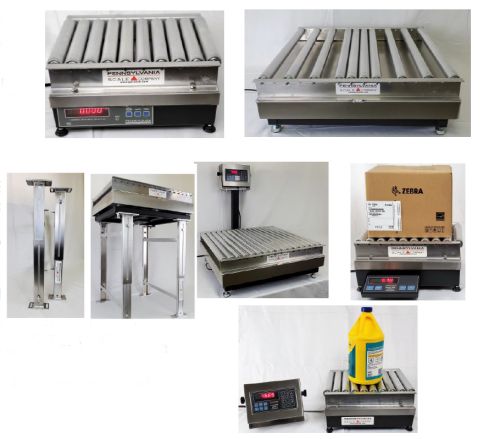

ROLLERTOP FOR PENNSYLVANIA SCALE PLATFORM

A ROLLER CONVEYOR OPTION IS THE IDEAL CHOICE FOR INTEGRATING A RUGGED AND ACCURATE PENNSYLVANIA SCALE WEIGHING SYSTEM INTO HIGH VOLUME PRODUCTION, WAREHOUSING OR SHIPPING OPERATIONS.

DESIGNED FOR EFFICIENT MATERIAL HANDLING AND ELIMINATING THE NEED TO LIFT HEAVY AND OVERSIZED PACKAGES ALLOWING FOR HIGH VOLUME THROUGHPUT AND EXTREMELY ACCURATE WEIGHING OR COUNTING.


Built with high strength aluminum frame and rollers that are light weight, durable and corrosion resistant. Available for the 7000, 7300, 7500 and 7600 bench scales and the 18” X 18” and 24” X 24” 6400 base.



Pennsylvania Scale Co Roller Conveyor Features and Benefits

• Easily Integrate into and existing conveyor for increased throughput and accuracy.
• High Strength Aluminum Construction reduces “Dead Weight” for increased counting or weighing accuracy and
performance.
• Low profile 2.75” high design with 1.5” Rollers available in 1.5” and 3” center to center spacing.
• Rollers are easily replaced in the field – No tools required.
• Fully assembled and calibrated when ordered as an option with a scale or base and indicator
• Custom sizes and configurations available – Contact factory for quotation.

conveyor and rollertop scales

Part Number ......... Description
56784-5      12” X 15” Roller Conveyor Option for 7000 7300, 7500 and 7600 bench
scales. 2.75”(H) X 12”(D) X 15” (W). 1.5” Rollers with 1.5” Spacing


56784-1      24” X 24” Roller Conveyor Option for 6400 24” X 24” Base. 2.75”(H) X
24”(D) X 24” (W). 1.5” Rollers with 3” Spacing



56784-2     24” X 24” Roller Conveyor Option for 6400 24” X 24” Base. 2.75”(H) X
24”(D) X 24” (W). 1.5” Rollers with 1.5” Spacing


56784-3     18” X 18” Roller Conveyor Option for 6400 18” X 18” Base. 2.75”(H) X
18”(D) X 18” (W). 1.5” Rollers with 3” Spacing


56784-4    18” X 18” Roller Conveyor Option for 6400 18” X 18” Base. 2.75”(H) X
18”(D) X 18” (W). 1.5” Rollers with 1.5” Spacing

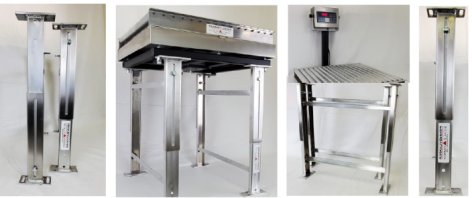

6400 BASE STAND

HEIGHT-ADJUSTABLE 6400 SCALE BASE STANDS ARE A GREAT CHOICE TO WEIGH OR COUNT HEAVY PARTS WITH EASE AT AN ERGONOMIC HEIGHT, PREVENTING EMPLOYEE STRAIN AND INJURY AND INCREASING OUTPUT.

Built with high strength aluminum that is light weight, durable and corrosion resistant. Available for the 18” X 18” and 24” X 24” 6400 base.

6400 scale platform adjustable stand

6400 Stand Features and Benefits

• Easily Integrate into and existing conveyor for increased throughput and accuracy.
• High Strength Aluminum construction
• Adjustable from 24” to 36” height
• Easy and fast field installation includes all assembly and mounting hardware.



56780H     6400 Base Adjustable Stand for 24” X 24” or 24” X 30” base


56780H-1   6400 Base Adjustable Stand for 18” X 18” or 18” X 24” base


56727-7    18” Column Mounts to 18” X 24” and 24” X 24” bases. Top Flange fits all indicators in 7X00 series and scale shelf below


56731-1    Scale shelf - Mounts to any column flange, fits all 7X00 bench scales, ¼" LIP – ideal for dual base counting systems
