Rice Lake Pipe Lever Scale

Rice Lake Pipe Lever Scale

Pipe-lever scales are an economical choice for many tank or hopper applications. The agriculture and construction industries have depended on pipe levers to provide reliable electro-mechanical operation that's easy to maintain. These systems can be customized to your unique weighing needs.

RFQ

Call: (919) 776-7737

Share on Facebook

Electromechanical Pipe Levers

Pipe-lever scales are an economical choice for many tank or hopper applications. The agriculture and construction industries have depended on pipe levers to provide reliable electro-mechanical operation that's easy to maintain. These systems can be customized to your unique weighing needs. Have it connected and calibrated with a 380 weight indicator for a complete and accurate weighing system.



Pipe Lever Scale

  • NTEP Certified and Measurement Canada Approved models available
  • RL20000 alloy steel load cell standard (prices include load cell and ITCM load cell assembly)
  • Mild steel construction, black paint finish
  • Stainless steel, hermetically sealed load cells available
  • Custom sizes and capacities available from 5000 to 60,000 lb



End Load Capacity:
100% full scale

mV/V Output:
1.50 to 1.87 mV/V nominal

Cable Length:
20 ft (6.1 m)

Warranty:
One-year limited

Approvals:
NTEP CC 94-126 Class III/IIIL
Measurement Canada Approved, AM-5114, Legal For Trade on sizes greater than 1.6 m, or a capacity greater than 10,000 kg

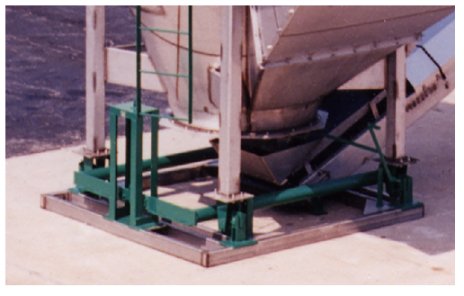

pipe lever scale under a tankCustom sizes fit your tank/hopper system for fewer modifications and less installation time.



 25,000 LB

Part # Description
29587 Scale 25,000 lb Pipe Lever 62-5/8x62-5/8
29586 Scale, 25,000 lb Pipe Lever 60-1/2x66
29588 Scale, 25,000 lb Pipe Lever 66-1/2x91
29589 Scale, 25,000 lb Pipe Lever 64x64
35008 Scale, 25,000 lb Pipe Lever 62x92
35009 Scale, 25,000 lb Pipe Lever 62x105
40409 Scale, 25,000lb Pipe Lever 72x72 #R Industries
83433 Scale, 25,000 lb Pipe Lever 64-3/4 x 64-3/4 (Not phosphatized or painted) #D



 25,000 LB  Stainless Steel

Part # Description
46264 Scale, #D 25000lb SST Pipe Lever 62-5/8x62-5/8
46265 Scale, #D 25000 lb SST Pipe Lever 60-1/2x66
46266 Scale, #D 25000lb SST Pipe Lever 66-1/2x91
50172 Scale, 25,000lb Pipe Lever 64x64 SST
50173 Scale, 25,000lb Pipe Lever 62x92 SST
50174 Scale, 25,000lb Pipe Lever 62x105 SST



 40,000 LB

Part # Description
39152 Scale, 40,000lb Pipe Lever 60x60 NTEP Class III 5000 Steel Painted
39153 Scale, 40,000lb Pipe Lever 72x72 NTEP Class III 5000 Steel Painted
39154 Scale, 40,000lb Pipe Lever 84x84 NTEP Class III 5000 Steel Painted
39155 Scale, 40,000lb Pipe Lever 96x96 NTEP Class III 5000 Steel Painted
39156 Scale, 40,000lb Pipe Lever 108x108 NTEP Class III 5000 Steel Painted
39157 Scale, 40,000lb Pipe Lever 120x120 NTEP Class III 5000 Steel Painted



 50,000 LB

Part # Description
39158 Scale, 50,000lb Pipe Lever 60x60 NTEP Class III 5000 Steel Painted
39159 Scale, 50,000lb Pipe Lever 72x72 NTEP Class III 5000 Steel Painted
39160 Scale, 50,000lb Pipe Lever 84x84 NTEP Class III 5000 Steel Painted
39161 Scale, 50,000lb Pipe Lever 96x96 NTEP Class III 5000 Steel Painted
39162 Scale, 50,000lb Pipe Lever 108x108 NTEP Class III 5000 Steel Painted
39163 Scale, 50,000lb Pipe Lever 120x120 NTEP Class III 5000 Steel Painted
