Scaime eNod4 Digital Process Transmitters & Controllers

Scaime eNod4 Digital Process Transmitters & Controllers

Scaime eNod4 features vertical housing for installation on DIN rail. Up to 8 strain gauge load cells (4/6 wires), continuous totalizing and flow rate control, 1 input for belt speed sensor, 2 digital inputs (4 with IO+ version) and 4 outputs, Analog output 0-10 V or 4-20 mA (IO+ version). Various versions of this item are also available.


Call: (919) 776-7737

From a single transmitter to complete controllers for loss-in-weight, belt feeder, check weighing and filling/dosing solutions, you are able to transform a single sensor (or multiple sensors) into a complete intelligent digital system. eNod controllers offer proven interoperability with Schneider Electric M238, M258 and M340 PLCs and can expand the functionality of the M220 series digital controllers.

The Scaime eNod4 family is high speed digital transmitters with programmable functions and powerful signal processing capabilities. Our eNod digital conditioners are able to transform a sensor into an intelligent digital system:

Versions available to support high speed measurements transmission on industrial networks:
Standard CANbus/RS485 version supports CANOpen, Modbus-RTU, Modbus-TCP and PROFIBUS;
Ethernet (ETH) version provides two Ethernet ports supporting PROFINET, EtherNet/IP and EtherCat.
Direct control of weighing applications for manufacturing processes.

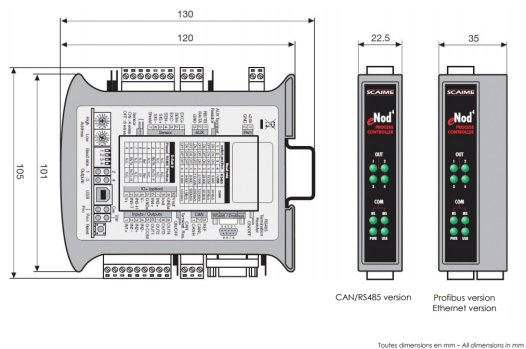

din rail scale controller


The eNod4 weighing controllers integrate comprehensive and high-performance application functions. These easily configurable solutions cover the entire supply chain.

24 bit A/D converter
Programmable digital filters for vibration and noise dampening
Direct USB port for programming
1 additional RS485 output for eNodTouch touch panels
Setting of node number by rotary switch and communication speed by switch
Integrated selectable termination resistor
Compatible with free eNodView remote control software
